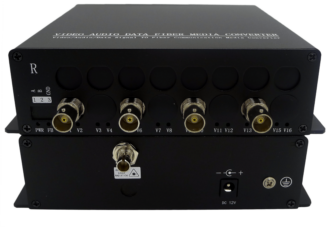

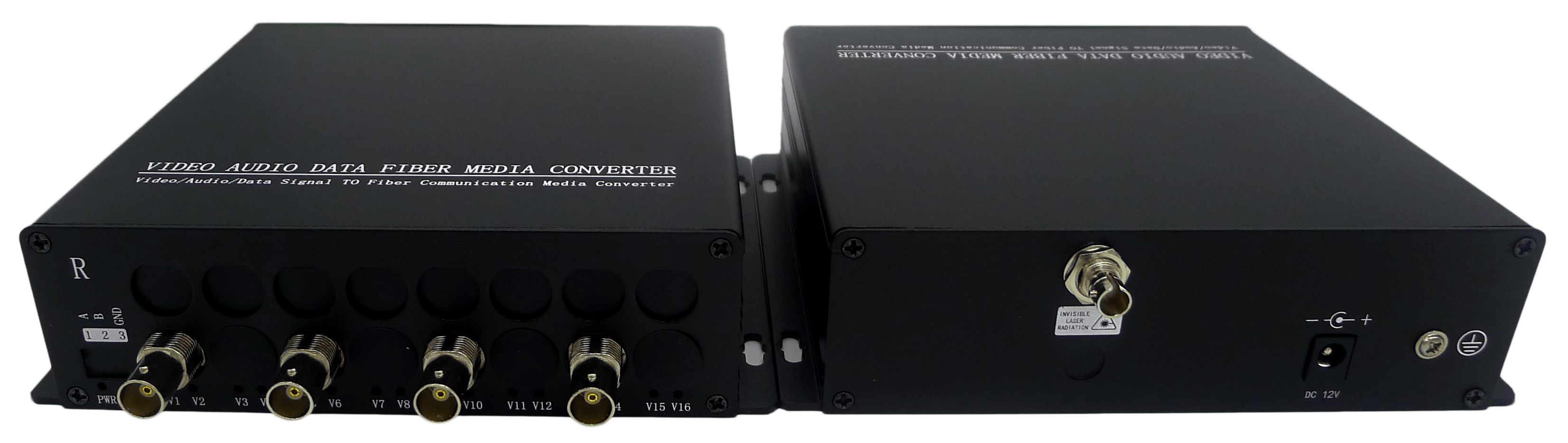

4 port SD-SDI / HD-SDI / 3G-SDI digital video over fiber converter / extender

4K-SDI To Fiber Optic Converter is an ideal and economic solution for broadcasting or surveillance applications. It receives 4 3G/HD/SD-SDI electrical input, perfectly converts electrical SDI signal to single mode optic SDI signal. It supports transmission image of SDTV (143-540Mbps), HDTV (1.485Gbps) and HDTV (3Gbps, 1080p60).

4 Channel HD-SDI High density digital audio/video fiber transmission
Handle all Pathological patterns
SD, HD, 3G input auto indentification，support three datarate 270Mbit/s – 1.48Gbit/s – 3Gbit/s；
Support 1080P 3Gbps HD-SDI format
Support SMPTE-424M 3Gbps HD-SDI、SMPTE-292M HD-SDI 、 SMPTE-259M SDI
10~60Km on single Mode Fiber transmission
1470~1610nm CWDM wavelengths optional.

SDI input/output
Signal format	SMPTE 424M, SMPTE 292M, SMPTE 259M
Data rate	270Mbit/s – 1.48Gbit/s – 3Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface	BNC 75 Ohm
Fiber interface	ST/SC/FC
Number of tranmitter channel	4
Transmitter wavelength	CWDM wavelength optional
Transmitter output power	-5~0dBm（0±3dBm optional）
Number of receiver output	4
Receiver sensitivity	-18dBm～0 dBm
General index
Input power	DC 12V
Power consumption	8W
Work Temp	-20°C to 55°C
Storage Temp	-40°C to 85°C
Humidity	0 ~ 95% (non-condensing)
Net weight	2.5KG/pair
Dimensions	168mm×154mm×45mm

Quick demo showing plug-n-play steps to get unit up and working.

AN-4-SDI

4 port SDI SD / HD / 3G video digital optical converter, distance depends on SFP transceiver, please inquire now!

Description

Both transmitter and receiver provide equalizing and reclocking at input unit in order to re-construct the signal for consistent quality. Besides, with AD-net advanced fiber technology, VSDI can easily pass pathological pattern to prove its complete transmission.
