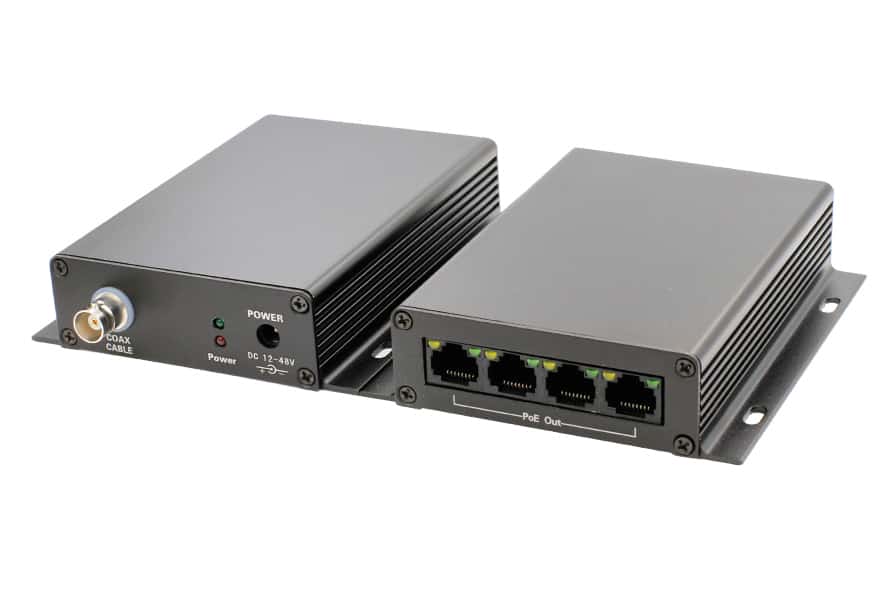

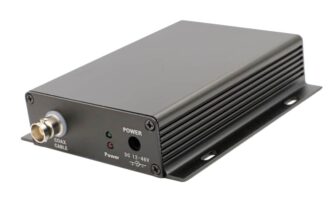

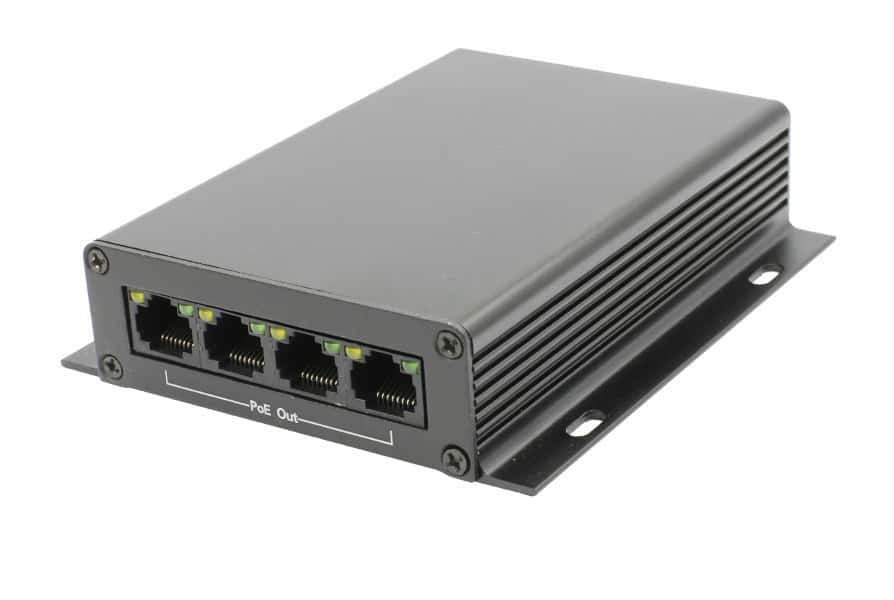

4 port High-Speed Ethernet LAN extender
AN-LAN-EXT-ENH-200-4 4 port Ethernet Extender is 4 port high-speed Ethernet transmission device. It can simultaneous transmit 4 port Ethernet over any 2-wire cable, such as Cat5, coaxial cable, telephone line, power line and so on. The Max transmission distancecan reach 1,000m, and the Max bandwidth can reach 200Mbps.
- Max transmission distance can reach 1,000m
- Max physical bandwidth can reach 200Mbps
- Built-in switch function, greatly simplify installation
- Plug and play, transparent transmission, no adjustment and no need to change the upper software
- Low power consumption, communication channel dynamic adjustment and high performance error correction coding technology
|
Category |
Description |
|
|
Power |
Available Voltage Range |
12VDC±10% |
|
Power Consumption |
≤2W / PC |
|
|
Transmission / Rate |
Standard Compliance |
IEEE1901, IEEE802.3 |
|
Up down Agreement |
CSMA/CA |
|
|
Physical Speed |
200Mbps |
|
|
Encryption Way |
128-bit AES Encryption |
|
|
Reliability |
MTBF |
＞30000 hours |
|
Physical Characteristic |
Dimensions (L × W × H) |
120mm×104mm×28mm |
|
Material |
Aluminum |
|
|
Net Weight |
260g/PC |
|
|
Operating Environment |
Working Temperature |
-20℃～60℃ |
|
Working Humidity |
＜95% Non-condensation |
|
Cable tips
Telephone Line: Category 3 or above
Power Line: RVV, RVS, RVVP, RVB 2×0.5mm2
UTP Cable: Category 5 or above
Coaxial Cable: RG59 or above
Accessories Spec
RJ45 port by EIA / TIA568B
BNC/2-wire Converter (Optional)
Power Adapter by 12VDC/1A, 5mm female power port (Optional)

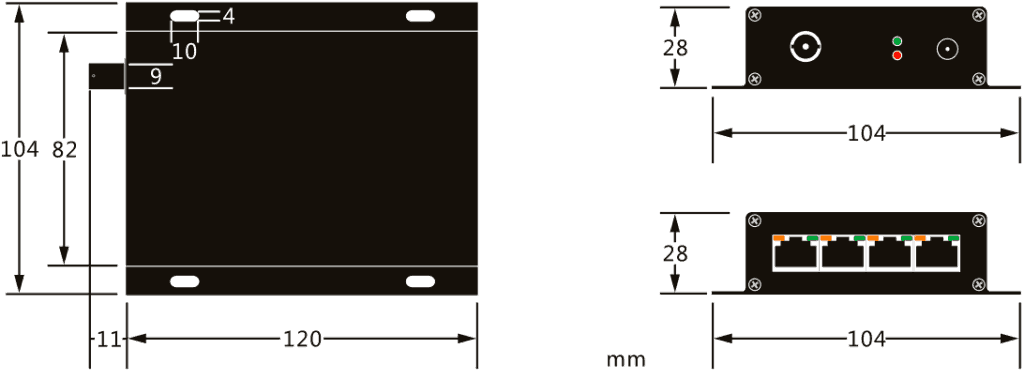

Dimension

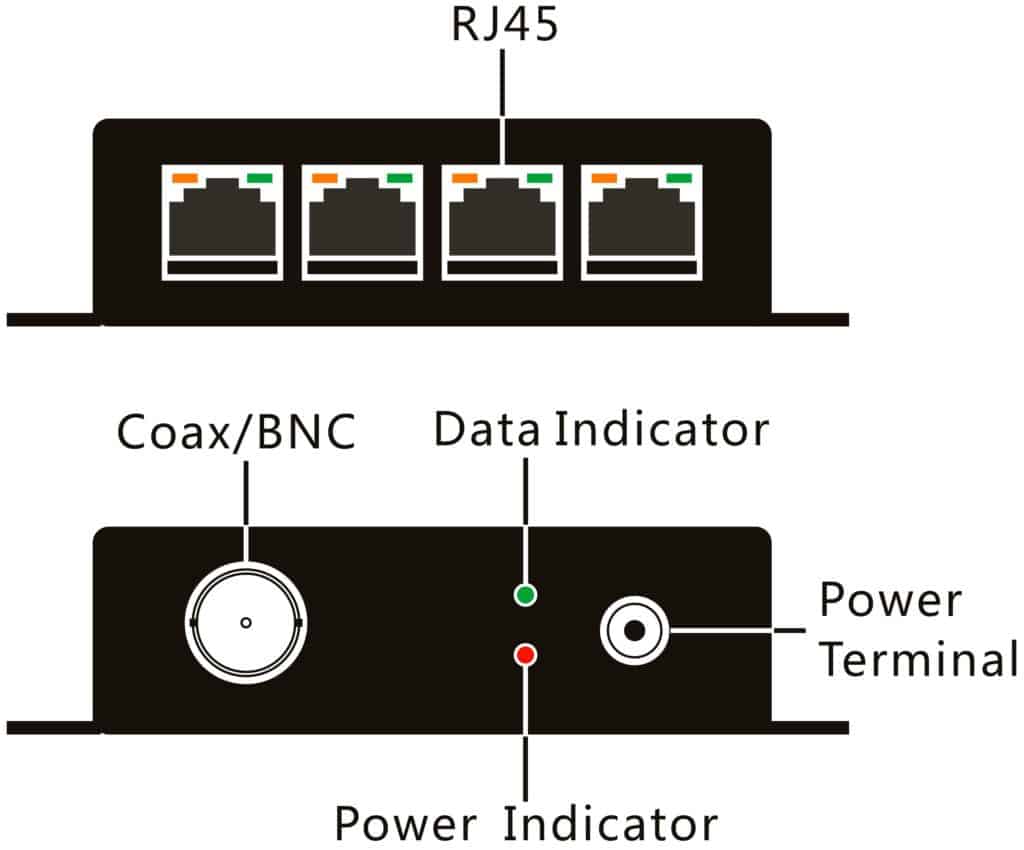

Terminals

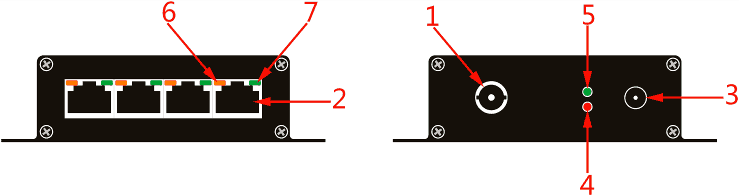

Installation instructions
|
Step |
Installation Instruction |
|
1 |
Coaxial cable BNC Terminal(1) |
|
2 |
Cat5 cable RJ45 Terminal(2) |
|
3 |
Power Port(3) |
|
4 |
Power Indicator is always on(4) |
|
5 |
Line status indicator is always flashing(5) |
|
6 |
Data exchange status indicator(6) |
|
7 |
Always off(7) |
Network Data Rate
The graph below shows AN-LAN-EXT-ENH-200-4 transmission distance and network data rate. The data differs from the cables types. When you use this device, please choose the suitable cables in line with your demands.
The above data for TCP throughput is the measured data in the actual environment. The maximum physical layer data is 200Mbps. For coaxial cable transmission, performance is more stable, but it also affected by the cable and terminal matching methods. The above tests are all finished in the field test.
Installation diagram

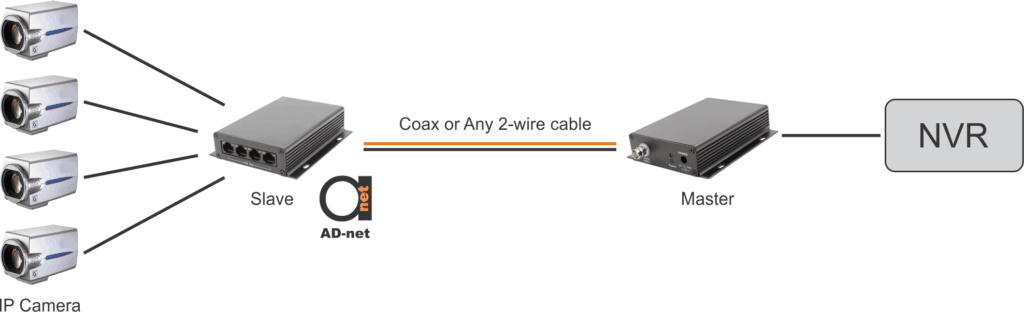

Connection 1:
When 4 port Ethernet Extender connects Single Channel Ethernet Extender, Single Channel Ethernet Extender as receiver unit.

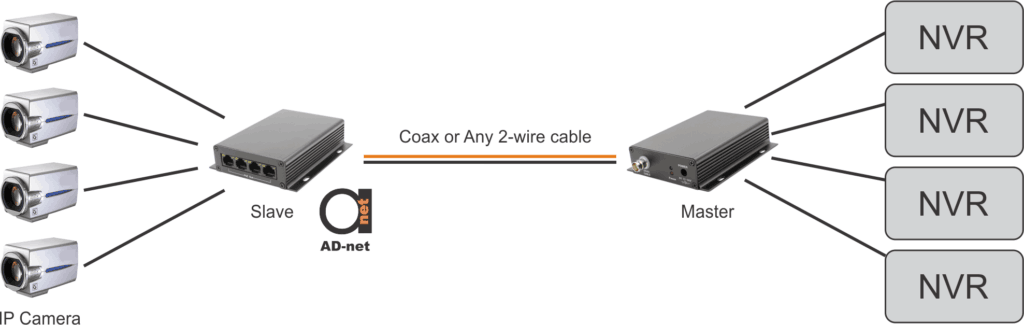

Connection 2:
When 4 port Ethernet Extender connects 4 port Ethernet Extender, they are both installed at any side, local or remote, can be used.
Use tips
When you use AN-LAN-EXT-ENH-200-4, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work.
- The device supports auto-negotiation allocate master and slave. It also can be set master-slave side and grouped by software. Each group (one point to multi-point communications group) only allows one Master, others are Slaves. Otherwise, the network data won’t be able to transmit.
- Signal transmission cable must be the copper cable. Other material cables will cause the decrease of signal transmission quality and distance.
- Long distance cable connection must be formal connection methods, such as welding or using connectors.
- Coaxial cable, twisted-pair cable, telephone line and power line all can be used to transmit network data signal in projects. A variety of cables arbitrary mixed connection also can reduce the quality of signal.
- Please choose matching power supply (12VDC / 1A).
- If need to transmit power at the same time, you should install power filter in the front of each device to make sure signal stability
- There is no waterproof design for this product, please make sure it is used in dry environment.
- If device fails, do not disassemble or repair it by yourself. Please contact us timely.
| AN-LAN-EXT-ENH-200-4 | 4-port high-speed Ethernet transmission device Ethernet over any 2-wire cable, such as Cat5, coaxial cable, telephone line, power line |
Description
AN-LAN-EXT-ENH-200-4 4 port Ethernet Extender is 4 port high-speed Ethernet transmission device. It can simultaneous transmit 4 port Ethernet over any 2-wire cable, such as Cat5, coaxial cable, telephone line, power line and so on. The Max transmission distancecan reach 1,000m, and the Max bandwidth can reach 200Mbps.
This device contains the Master and Slave Unit, which supports point to point and point to multi-point network transmission. Now it has two type terminals BNC and 2P connector for your choice, which can be directly used with coaxial cable or 2-wire cable. It can greatly simplify the project cabling, applied to expand network system and transmit long distance network device signals.
