3G/HD-SDI Fiber Optic Converter and Extender Kit – Compact SFP-Sized SDI to LC Transmitter & Receiver Over Single Mode & Multimode LC, USB-C Powered, DIN Rail & Wall Mount

The AD-net AN-SDI-1V-ML is a professional-grade
3G/HD-SDI to fiber optical converter designed for reliable,
uncompressed video transmission in broadcast, studio, and industrial environments.
Built with advanced digital coding technology, it delivers stable, distortion-free
SDI signals over long distances using optical fiber.

Supporting data rates from 270 Mbps to 2.97 Gbps, the converter
automatically detects SD, HD, and 3G-SDI input formats, including
1080p@60Hz. It is fully compliant with
SMPTE 424M, 292M, 344M, 259M standards and is also compatible with
DVB-ASI, making it suitable for a wide range of professional video
transport applications.

Using single-mode fiber, the AN-SDI-1V-ML supports transmission distances of up to
20 km without signal degradation. Its compact,
SFP-style form factor makes it ideal for installations where space

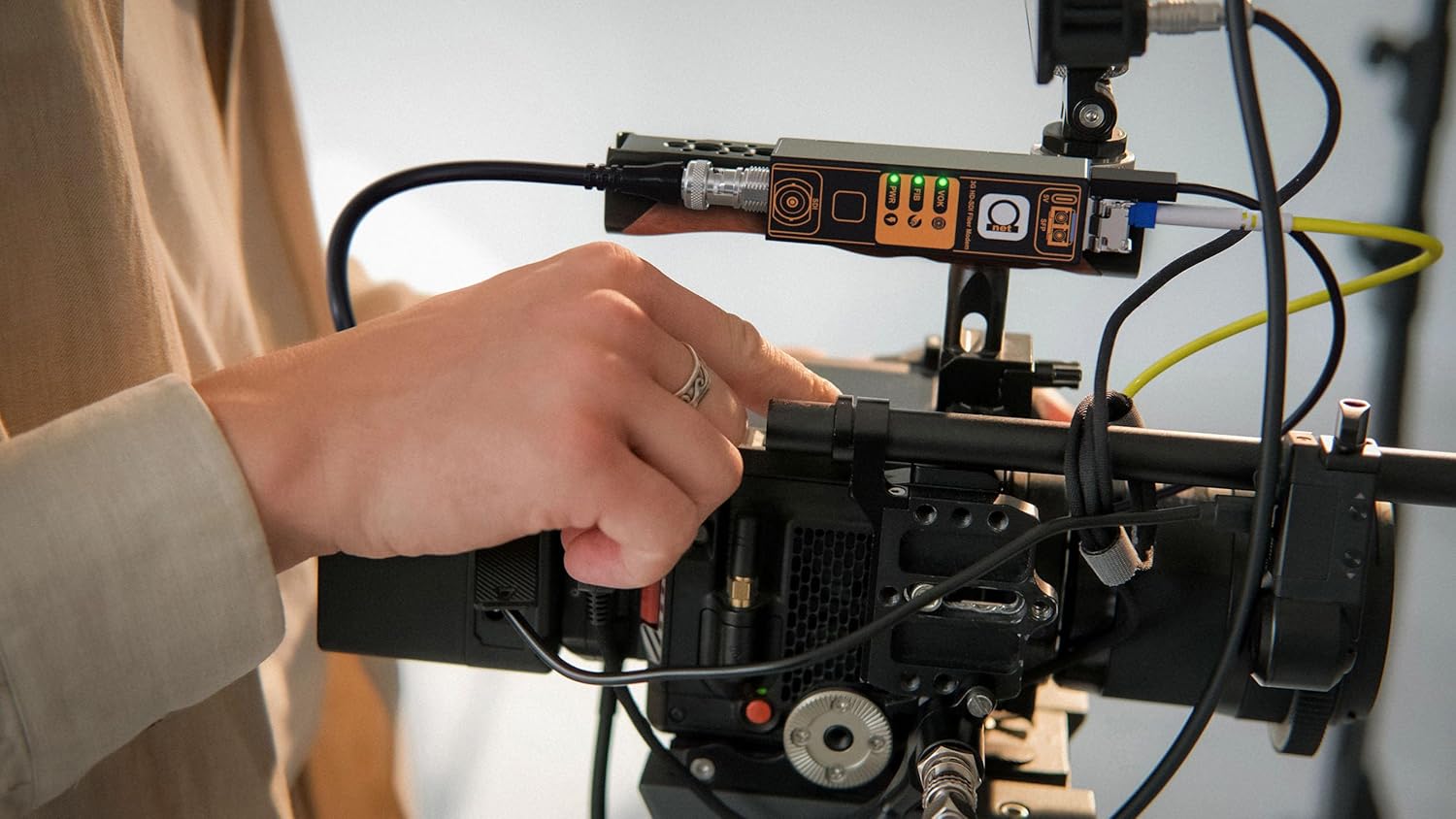

is limited, such as camera rigs, studio racks, control rooms, and mobile field setups.

The unit operates on a 5V USB Type-C power input, allowing flexible
powering from laptops, power banks, monitors, or standard USB adapters—eliminating
the need for bulky external power supplies.

Designed for reliability in demanding environments, the converter includes
three-level lightning protection compliant with

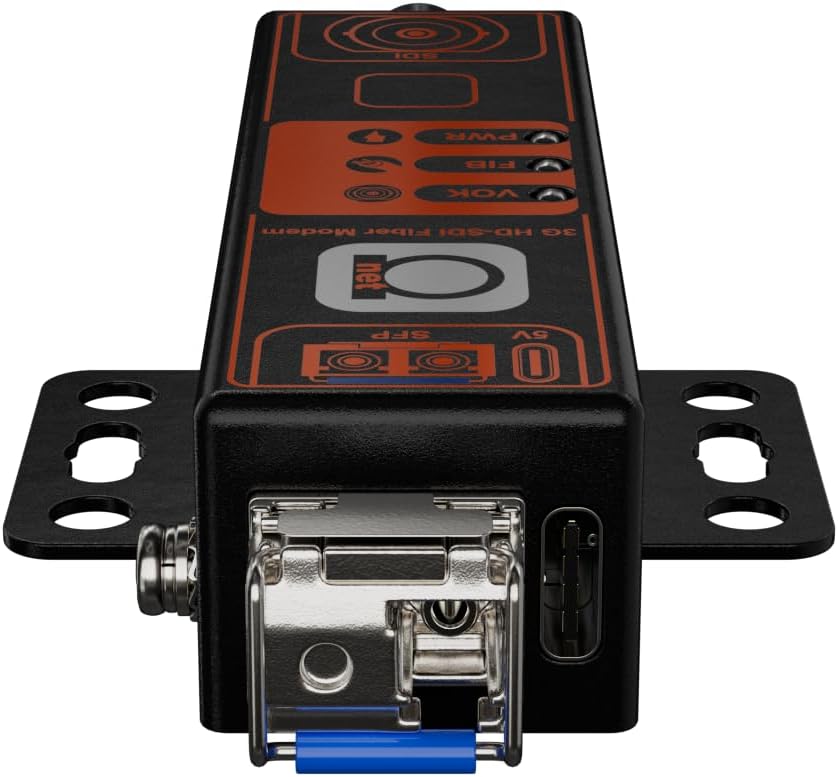

ITU-T K.21 standards, along with SDI status LEDs
for quick visual diagnostics of power, signal presence, and link status.

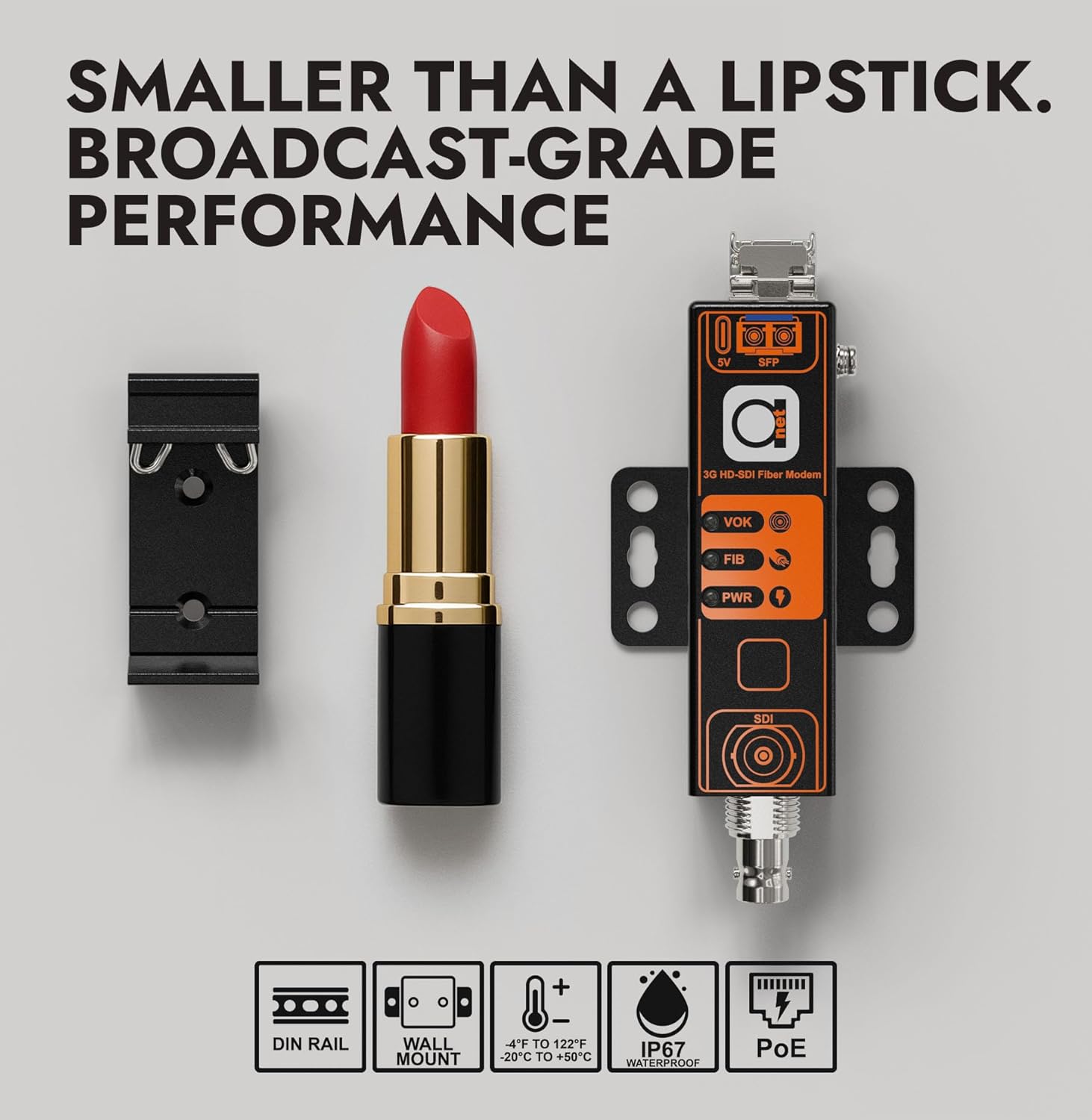

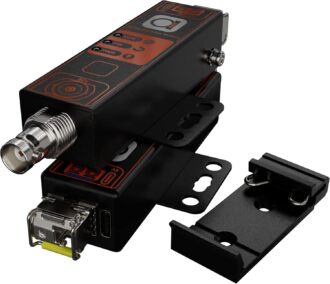

With multiple mounting options available—including desktop, DIN-rail, and wall mount
configurations—the AN-SDI-1V-ML offers maximum deployment flexibility for professional
video transmission systems.
