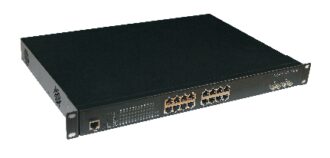

16 port full gigabit PoE switch

The 16 port full gigabit PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The 16 RJ45 network ports and 2 fiber ports can be used for any 10/100/1000M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.

  • Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)
  • Port1 to Port 16 compatible with IEEE 802.3 of standard power
    Supply (Maximum power of each port is 15.4W)
  • 16 x 10 / 100 / 1000Mbps automatic adjustment RJ 45 PoE ports, 2x 10/100 /1000Mbps SFP fiber uplink ports
  • Meets the standards of the IEEE 802.3af/ IEEE 802.3 10i and IEEE 802.3u standard
  • Network port has lighting – proof function ( AC power port : differential mode + / – 2kV, common mode +/-4kV)
  • All ports support wire – speed switching, frame size within the range of 64 to 1536 can achieve wire-speed
  • 1U Rack mounted design , easy to install and use

Connector Type

16x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment); 2x 10/100 /1000Mbps SFP fiber uplink ports

Network Media

10BASE-T: Cat3,4,5 UTP(≤100 meters); 100BASE-TX: Cat5 or more UTP

(≤100 meters); 1000BASE-TX: Cat5 or more UTP(≤100 meters)

Bandwidth

52Gbps

Address Database Size

8000

MTBF

190,000 hours (about 21 years)

Network Latency

less than 20 microsecond

Forwarding Mode

1000M line speed forwarding; Packet Length: 10K; Packet Buffer: 4.1M

Buffer Memory

96KB

Network Protocols

IEEE 802.3; IEEE 802.3u; IEEE 802.3ab; IEEE 802.x Flow Control;

IEEE 802.1af DTE Power via MDI

LED Display

Power, Network, PoE working status

PoE Ports

IEEE 802.3af, each port power is 15.4W; Port1 to Port16 support PoE power; The even number Port(1/3/5/7/9/11/13/15) is end-span(1/2+, 3/6- line pair)  power supply, the odd number port(2/4/6/8/10/12/14/16) is mid-span(4/5+,

7/8- line pair) power supply

PoE Port Power

Port output power is 15.4W (IEEE802.3af)

PoE Standard

IEEE802.3af standard, each port power is 15.4W, total power is 260W

Working Environment

Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C,

Working Humidity: 5%～95%, non-condensing

Radiation

CE mark, commercial ; FCC Part 15 Class B; VCCI Class B; EN 55022

(CISPR 22), Class B

Product Size

440 x 275 x 44.5mm

Warranty

3 Year

POE SWITCH_scheme

Description

The 16 port full gigabit PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The 16 RJ45 network ports and 2 fiber ports can be used for any 10/100/1000M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.
