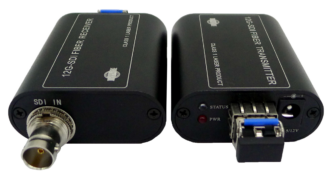

12G SDI Video Over Fiber Converter – Extender with Multirate 12G/6G/3G/HD/SD-SDI Video and UHDTV/4K/8K/HDTV/SDTV support

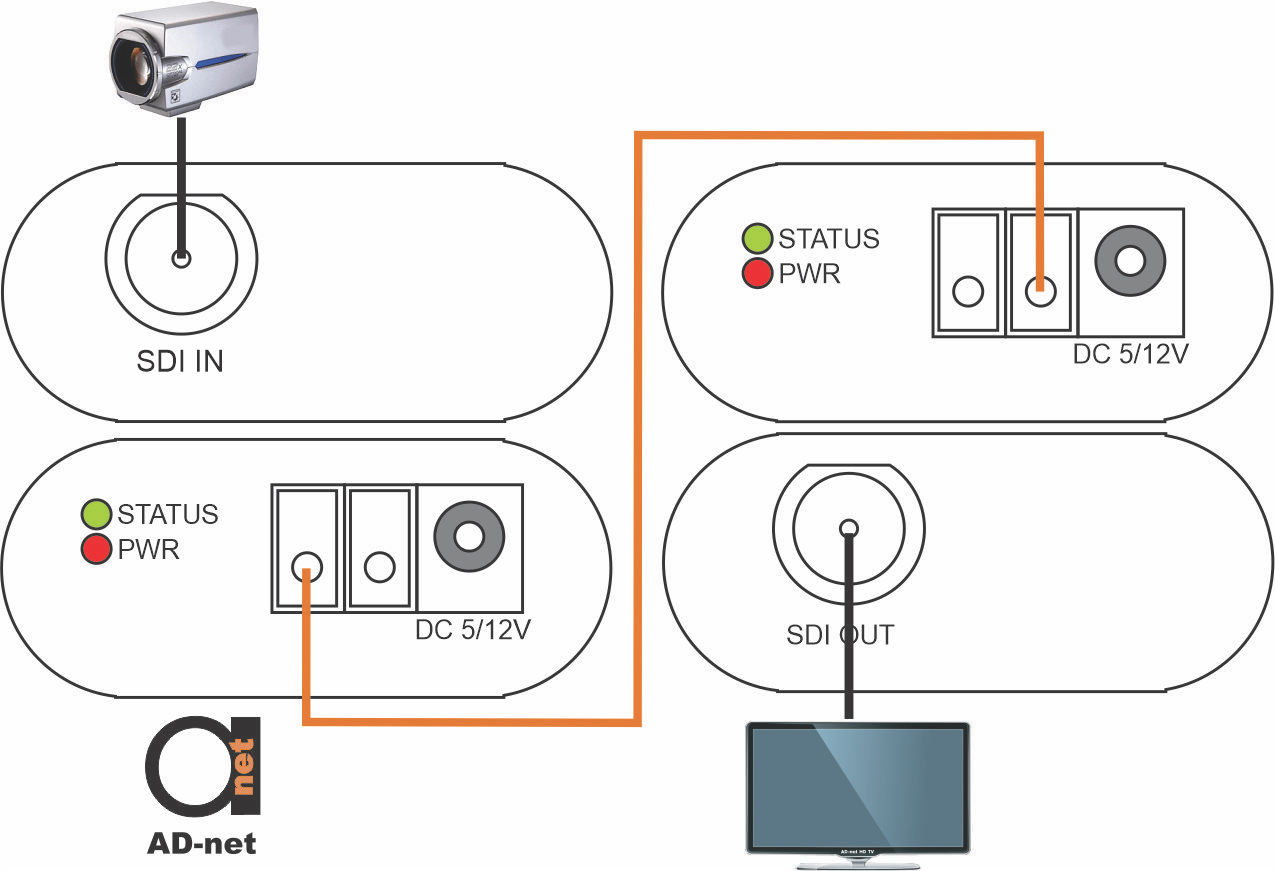

12G-SDI to fiber convertor is an ideal and economic solution for broadcasting or surveillance applications. It receives one 12G/6G/3G/HD/SD -SDI electrical input, perfectly converts electrical SDI signal to fiber optic SDI signal. It supports transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal.

1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber
Handles pathological pattern
Automatic cable equalization to ensure signal integrity
With integrated reclocker 270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Supports SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Long transmission capability at least 500M (MM fiber)/10KM(SM fiber)
Terminal block power input for industrial application
Supports hot swapping and hot plugging
Simplex LC/PC single mode optical connection

SDI input/output
Signal format	SMPTE ST-2082, ST-2081, 424M, 344M, 292M, 259M, DVB-ASI,
Data rate	270Mbit/s, 1.48Gbit/s, 2.97Gbit/s, 5.94Gbit/s, 11.88Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable)
	75 m at 11.88 Gbps (4Kp60 UHD)
	120 m at 5.94 Gbps (UHD)
	200 m at 2.97 Gbps (FHD)
	280 m at 1.485 Gbps (HD)
	600 m at 270 Mbps (SD)

SDI interface	BNC 75 Ohm
Fiber interface	LC/PC
Number of transmitter channel	1
Transmitter wavelength	1310 nm
Transmitter output power	-6~-1dBm（0±3dBm optional）
Number of receiver output	1
Receiver sensitivity	-14.4dBm～-1dBm
General index
Input power	DC 5 V or 12V
Power consumption	<3W
Work Temp	-20°C to 70°C
Storage Temp	-40°C to 85°C
humidity	0 ~ 95% (non-condensing)
Case material	Aluminum
Net weight	210g /pair （with Power supply 440g/pair）

AN-SDI-12G

1 channel video and audio transmission of UHDTV/4K/8K/HDTV/SDTV SDI signal over optic fiber with Multi-rate 12G/6G/3G/HD/SD-SDI Video support, different fiber types and distances available

Description

Both transmitter and receiver provide equalising and integrated reclocker at input unit in order to re-construct the signal for consistent quality. Besides, with advanced fiber technology, the 12G-SDI to fiber can easily pass pathological pattern to prove its complete transmission.
