Interface: Dual ST connector for 10Base-FL

Cable length:
20K meters max. for fiber optic Single-mode
2K meters max. for fiber optic Multi-mode

Cable type:
9/125um Single-mode duplex fiber optic cable for 10Base-FL
62.5/125um Multi-mode duplex fiber optic cable for 10Base-FL

External Power: Input 110V or 220V AC Output 12V DC, 1 Amp

Temperature: 0 to 55 degree (standard operating)

Humidity: 10 to 90% (non-condensing)

Standard: IEEE 802.3 10Base-2 Ethernet

EMI: Meets FCC Class A Subpart B of Part 15 Requirement

Technique: Baseband

LAN Expansion: Fiber Optic expand upon to 4 level

Topology: Star

Protocol: CSMA/CD

Dimensions: 4.2″ x 2.2″ x 0.8″

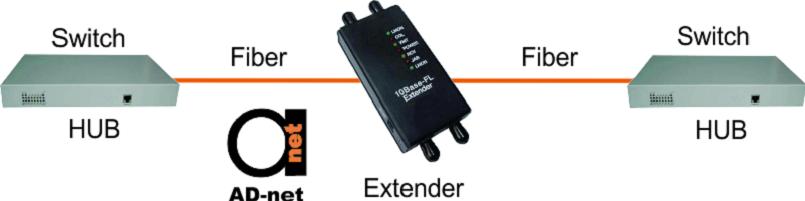

Application scenario:



AN-10BFL-FL

Ethernet 10Base-FL/FL Converter(ST)Multi-Mode Extender

AN-10BFL-FL/SM

Ethernet 10Base-FL/FL Converter(ST)Single-Mode Extender

AN-10BFL-FL/MM/SM

Ethernet 10Base-FL/FL Converter(ST)Single-Mode/Multi Mode

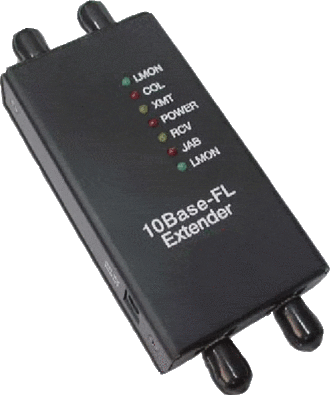

Description

AN-10BFL-FL extender works in conjunction with a 10Base-FL Hub to double the 20 km (Single-Mode)& 2 km (Multi-Mode) distance of the cable run to the workstations. AN-10BFL-FL extender is a perfect solution to end your cabling headaches. No more Fiber Optic cable distance restrains. Extender features included of 7 LEDs on POWER, LINK, RCV, COL, which is required external power and fully compatible with IEEE 802.3 10Base-FL standard.
