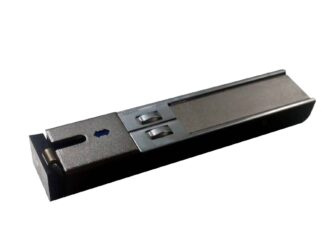

1000BASE-PX20 SFP type GEPON OLT plug in tranceiver for dual wavelength Tx/Rx operation at 1490/1310nm

GEPON standard, SFP type 1000BASE-PX20 1.25 OLT tranceiver module used with our AN-OLT8000 or AN-OLT2000 models, or any other standard OLT's complying to 802.3ah™-2004 1000BASE-PX20. Integrated with micro-optics WDM filter for dual wavelength Tx/Rx operation at 1490/1310nm

  • Support IEEE 802.3ah™-2004 1000BASE-PX20 GEPON OLT side application
  • Single fiber  bi-directional  data links with symmetric
  • 1.25Gbps upstream and downstream
  • Integrated with  micro-optics WDM filter for dual wavelength Tx/Rx operation at 1490/1310nm
  • 1490nm continuous-mode transmitter with DFB laser
  • 1310nm burst-mode receiver with APD-TIA
  • Support more than 24dB dynamic range
  • Digital diagnostic interface compliant with SFF-8472 Rev 9.5
  • Digital Receiving Signal Strength Indication (RSSI)
  • Single 3.3V power supply
  • Spring-latch SFP (Small Form-factor Pluggable) package with SC receptacle optical interface.
  • Operating case temperature: 0~70°C
  • RoHS compliance

Feature

Standard

 Performance
Electrostatic Discharge MIL-STD-883E
(ESD) to the Electrical Pins Method 3015.7 Class 1(>500 V)
Electrostatic Discharge (ESD) to the
Duplex LC Receptacle IEC 61000-4-2 Compatible with standards
Electromagnetic FCC Part 15 Class B
Interference (EMI) EN55022 Class B (CISPR 22B) Compatible with standards
Immunity IEC 61000-4-3 Compatible with standards
  FDA 21CFR 1040.10 and 1040.11 Compatible with Class I laser
Laser Eye Safety EN60950, EN (IEC) 60825-1,2 product.
Component Recognitio UL and CSA Compliant with standards
  2002/95/EC 4.1&4.2
RoHS 2005/747/EC Compliant with standards note
AN-1000BASE-PX-20

1 port PON transceiver module PX-20 (minimum 1 per each OLT, maximum – 8 or 2 depending on model). Distance 20 km

Description

GEPON standard, SFP type 1000BASE-PX20 1.25 OLT tranceiver module used with our AN-OLT8000 or AN-OLT2000 models, or any other standard OLT’s complying to 802.3ah™-2004 1000BASE-PX20. Integrated with micro-optics WDM filter for dual
wavelength Tx/Rx operation at 1490/1310nm Can be used with AD-net’s AN-OLT8000 models, in 2 port PON expansion card, or in AN-OL2000 model, or any other industry standard EPON OLT.
