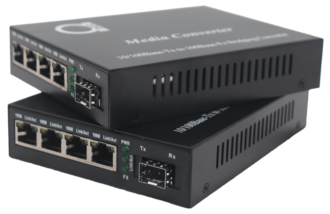

1 x SFP slot + 4 x 10/100 TP UTP Fast Ethernet Copper Port Ethernet Converter
4x 10/100Mbps TP ports + 1X 100Mbps fiber Ethernet converter. The TP ports can auto-detect 10/100Mbps, Half/Full duplex and MDI/MDI-X of the connecting devices. Two queues and up to 1522 bytes packet length is supported. Transferring according to the priority in ToS of IP in the packet. Can perfectly meet the "Quality of Service" request in the network. A clear indicator panel including link/activity LED, FDX (full duplex)/collision indicator LED for easy monitoring of network status.
- In conformity to IEEE 802.3 10 Base-T standard;
- In conformity to IEEE 802.3u 100 Base-TX/FX standard;
- Supports 1K capacity MAC address table;
- IEEE802.3 X for full duplex and back pressure flow control for half duplex;
- Every TP port can auto-detect MDI or MDI-X connection, no crossover cable is needed for switch/hub cascaded
- Forward 1552/1536 bytes packets for management;
- LED indicator to show the device’s work status;
- VLAN function optional(built-in preset by factory
- In conformity to safety code of FCC and 15 CLASS A and CE
|
10/100 UTP Port |
4 |
|
Fiber Port |
1 Ports |
|
Standards Compliance |
IEEE802.3 10 Base-T, IEEE 802.3u 100Base-TX/FX |
|
MAC address table |
1K |
|
Connector |
UTP: RJ-45, 10/100Mbps Fiber slot: 100Mbps SC/ST/SFP optional |
|
Supported Cable |
UTP: Cat.5 UTP |
|
Multi-mode: 50/125, 62.5/125, 100/140μm Single mode: 8/125, 8.7/125, 9/125, 10/125μm |
|
|
Flow control |
Full Duplex: IEEE802.3x flow control Half Duplex: back pressure flow control |
|
Operation mode |
Full Duplex Mode or Half Duplex Mode |
|
LED Indicators |
PWR, F1 Link/Act, F2 Link/Act, TP1～TP4 Link/Act, TP1～TP4 100 |
|
Power Supply |
DC 5V1A |
|
Operating Temperature |
0 ~ +60℃ |
|
Storage Temperature: |
20 ~ +70℃ |
|
Humidity |
5% ~ 90% |
|
Dimensions |
25(H)×100(W)×180(D)mm |

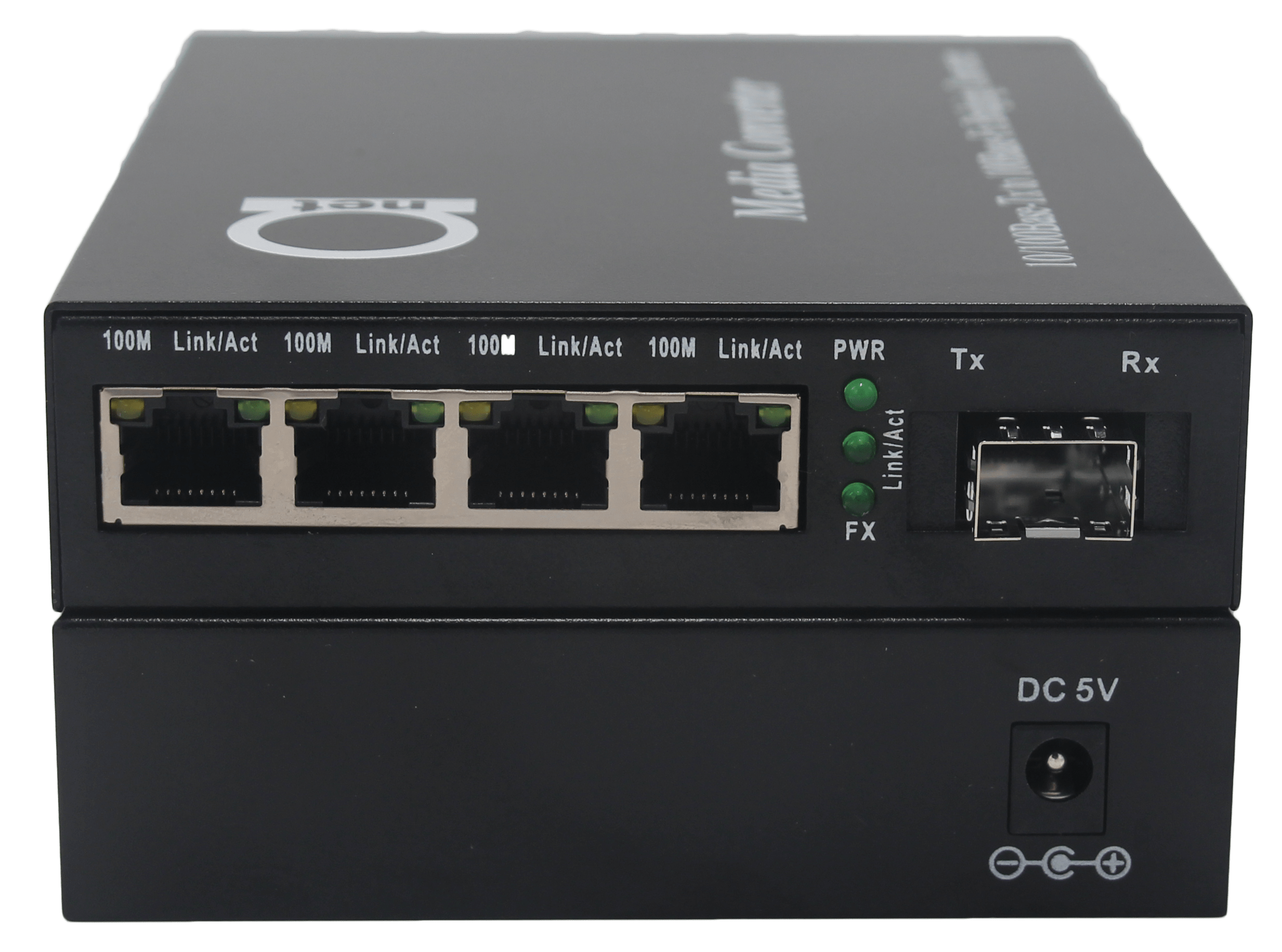

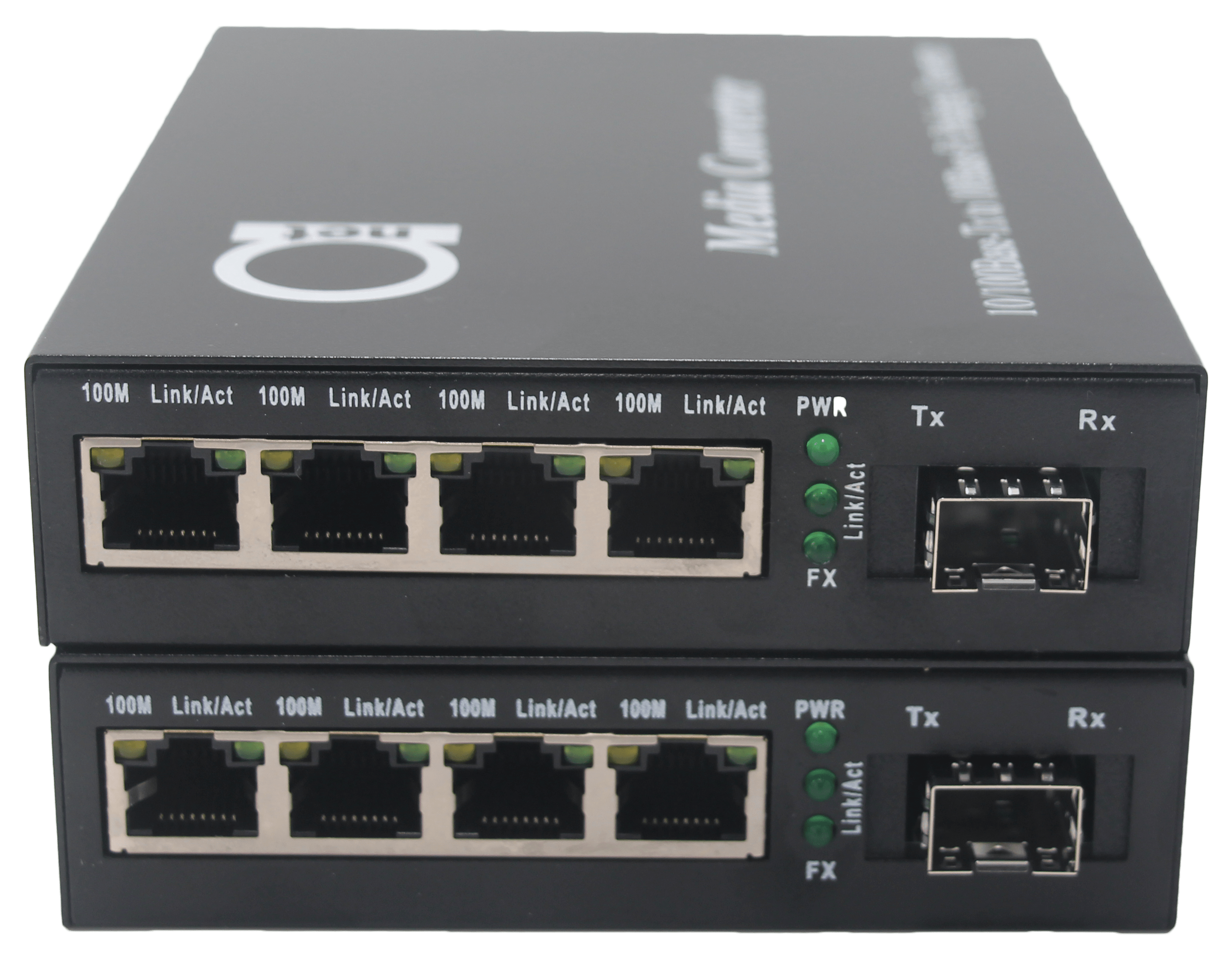

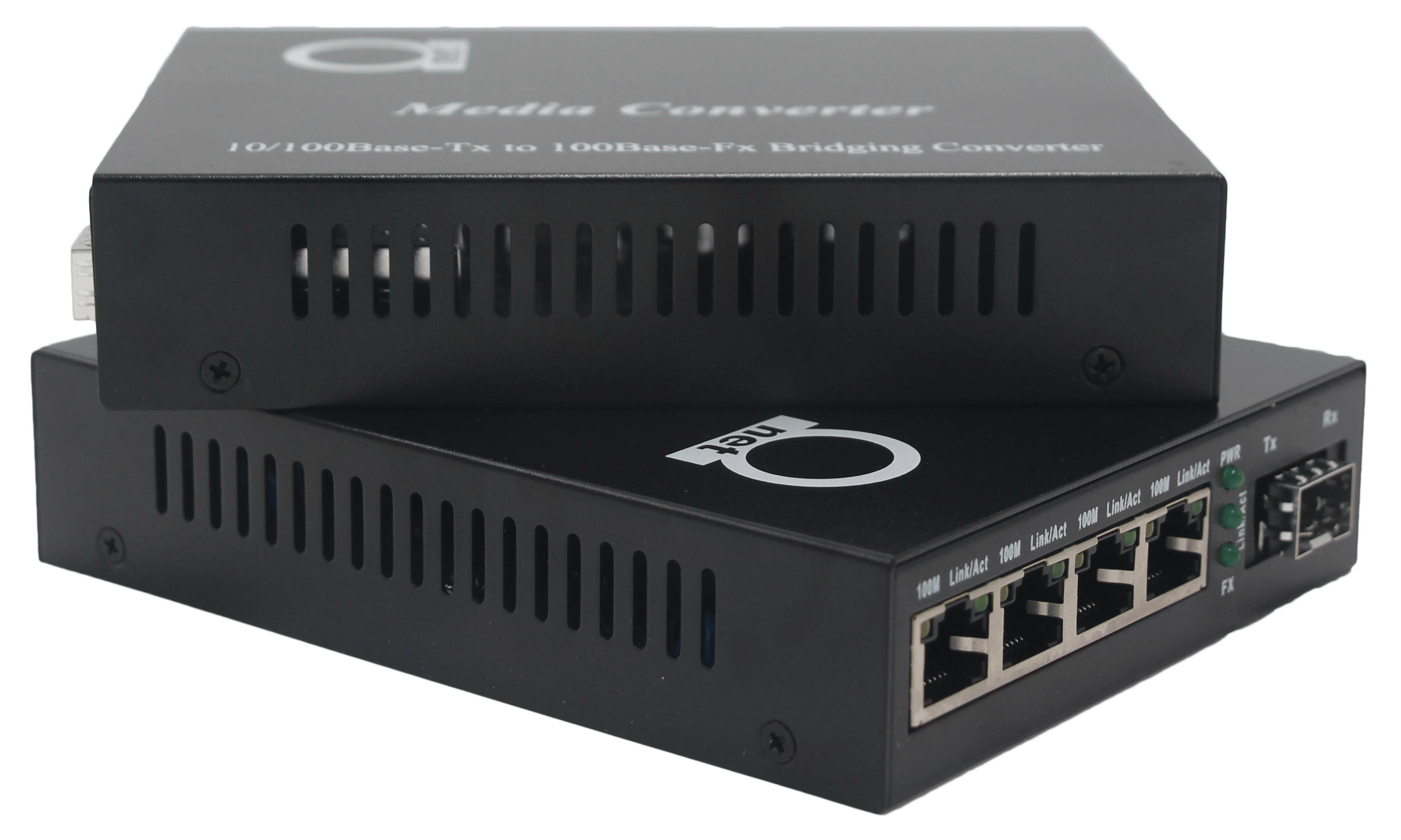

LED indicator
|
LED Indicator |
Status |
Description |
|
Link/Act |
On |
Fiber/UTP port connection LED, ON means Fiber/UTP port connection ok |
|
Blinking |
Means data is transmission |
|
|
PWR |
On |
Power connection normal |
|
SPD |
On |
UTP port transmission speed is 100Mbps |
|
Off |
UTP port transmission speed is 10Mbps |
| AN-UM-SMC-14 | 1 x SFP slot + 4 x 10/100 TP UTP Fast Ethernet Copper Port Ethernet Converter, AC or DC power |
Description
4x 10/100Mbps TP ports + 1X 100Mbps fiber Ethernet converter. The TP ports can auto-detect 10/100Mbps, Half/Full duplex and MDI/MDI-X of the connecting devices. Two queues and up to 1522 bytes packet length is supported. Transferring according to the priority in ToS of IP in the packet. Can perfectly meet the “Quality of Service” request in the network. A clear indicator panel including link/activity LED, FDX (full duplex)/collision indicator LED for easy monitoring of network status.
Additional information
| SFP slot | 1 |
|---|---|
| Fast Ethernet 10/100 | Any |
