AN-SDH63


	MiniSDH systems (<63 E1, V.35, ETH)

	AN-SDH63

	AN-SDH63 is compact 1U SDH STM-1 multiplexer which can send up to 63 E1 over fiber optical links (now WDM available!)
	Request price

As a key member of AD-net SDH/MSPP Product family, AN-SDH63 is a carrier-class, cost-effective, compact (only 1U high) SDH/MSPP platform that is designed for applications in metro and access networks to facilitate the efficient transport of traditional TDM and emerging data traffic for service providers. It can provide 63E1 TDM interfaces in only 1U standard 19” box. AN-miniSDH is best suitable for point-to-point network or standard SDH TM node. Working together with other SDH access family member such as AN-miniSDH, it can support various network topologies such as point-to-point, chain, ring, hub, and mesh networks.

1. 1U box SDH/MSPP with 1 or 2 STM-1 optical interfaces and 63E1 PDH interface.

2. Inter-working with popular SDH/MSPP products of various vendors

3. LCD display for system configuration and alarm

4. SDH/MSPP core, PDH price

5. Easy commissioning and maintenance

6. High integration, compact design

7. High reliability, low CAPEX and OPEX

8. 63 E1 G.703 over single mode dual ar WDM fiber;

9. Star, Ring, Chain - all SDH topologies possible

Index		Performance Parameter
SDH Interface	Max	1~2 STM-1 optical interfaces （1+1 supported）
	Connector	SC/PC
	Spec.	S-1.1, L-1.1, L-1.2
	Spec.	Single fiber bi-directional interface can be optionally supported
PDH interface	E1 Spec.	Comply with G.703, 2.048Mbps, HDB3
PDH interface	Max E1	63E1
Data	RS485	Asynchronous RS485 data
Management	Protocol	SNMP or Q3
Management	Interface	10Base-T and RS232/RS485
EOW interface		Standard socket: 4P4C
LCD Display		Supported
Physical Dimension		1U: 440 × 44 ×230 (mm)
Power	Supply	-48V DC or 220V (110V) AC or dual power supply +24VDC
Power	Consumption	≤15 w
Environment	Temperature	0°C～50°C
Environment	Humidity	≤90 %

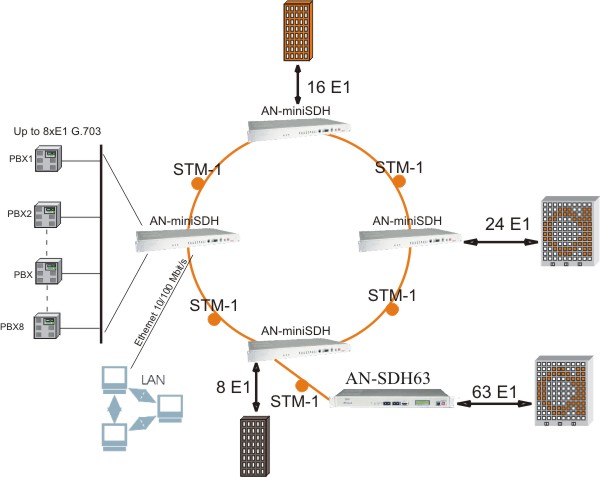

Application scenarios:

Classical point-to-point scenario - most cheapest way to send 63E1 over single fiber!

AN-SDH63 will work with any existing SDH core network, built on such brands, like Siemens, Huawei or Alcatel. Just use AN-SDH63 as effective terminal multiplexer.
