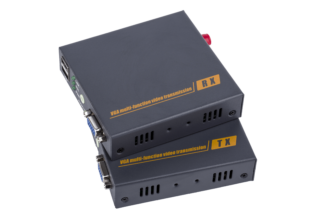

VGA + KVM Fiber Extender

The VGA + KVM Fiber Extender could transmission high-definition video long distance through a single cable, while support for USB keyboard and mouse transmission, external independent audio and other functions, can adapt to a variety of complex applications. The device has a superior image processing and transmission capacity, so that the signal transmission more smooth and stable, it is a good solution with a reliable, high-performance, efficient VGA, keyboard and mouse signals to extend the way.

Transmit VGA video and audio over long distances through the cable, up to 20KM;
The highest resolution HD video signals up to 1080P @ 60Hz;
Compliance with VGA standard protocol;
Support for external one-way analog stereo audio signal transmission;
Support USB keyboard and mouse transmission;
It can automatically identify and configure a variety of display modes;
Built-in automatic equalization system, the picture is smooth, clear and stable;
Built-in ESD Protection Circuit, comprehensive protection system security;
Easy to install, plug and play, no need to set;

Parameter		Description
Video	Signal Type	VGA
	BW	380MHz
	Resolution	1024X768 @ 60fps 1280X720@ 60fps 1280X800@ 60fps 1280X1024@ 60fps 1440×900 @ 60fps 1660×1200 @ 60fps 1680×1050 @ 60fps 1920×1080 @ 60fps
Audio	Port	3.5mm Stereo audio socket
Audio	Type	Stereo
K/M	PIN	USB
Ethernet port	Cable Type	Signals Fiber
Ethernet port	Max transmission distance	SC/FC 20KM
Other	Power	Adapter:DC 5V/2A
	Power dissipation	MAX 4W
	Temperature	Operating：-5℃ ~ +70℃
	Humidity	Operating：5% ~ 90%
	Size	1029625mm
	Warranty	1 year

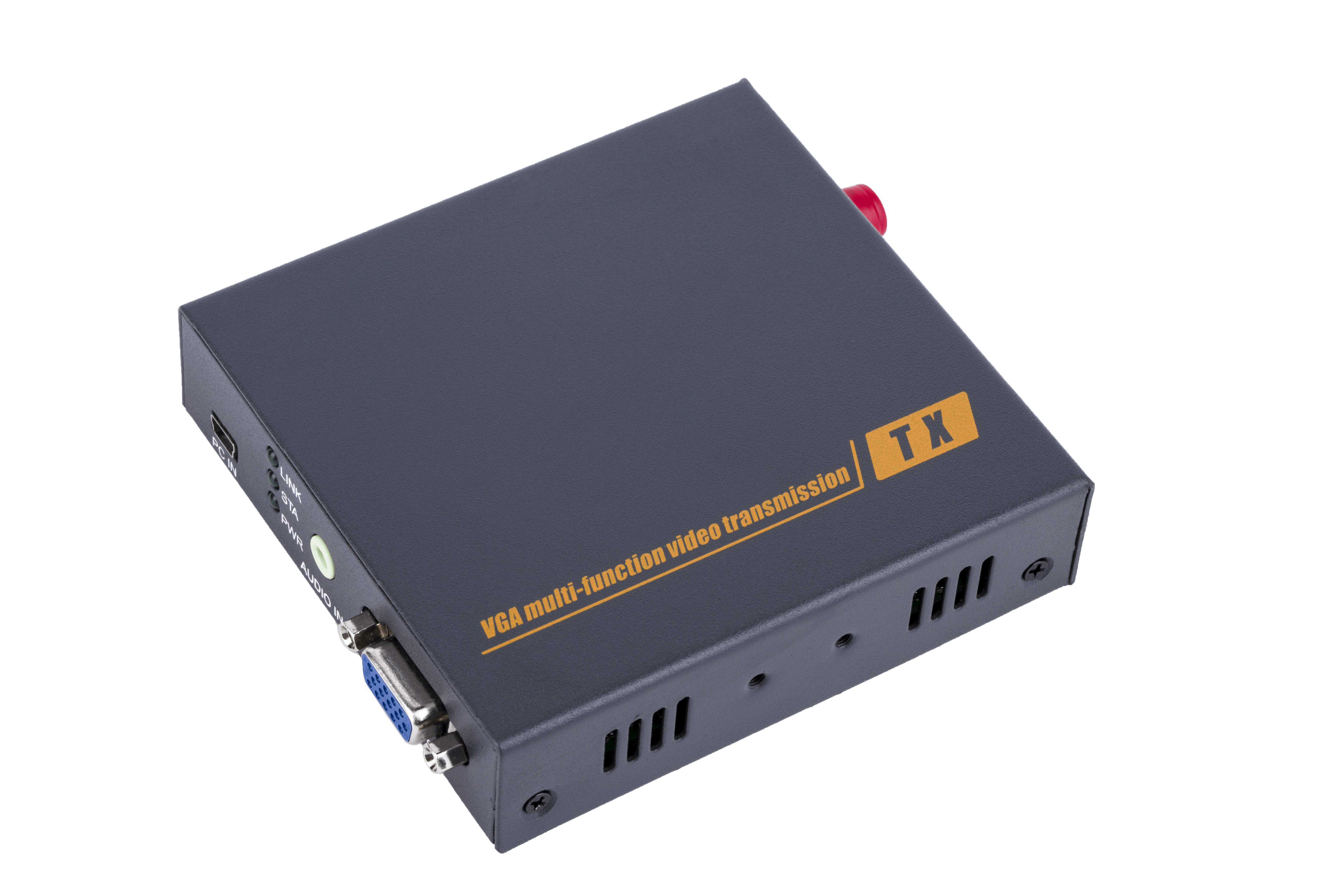

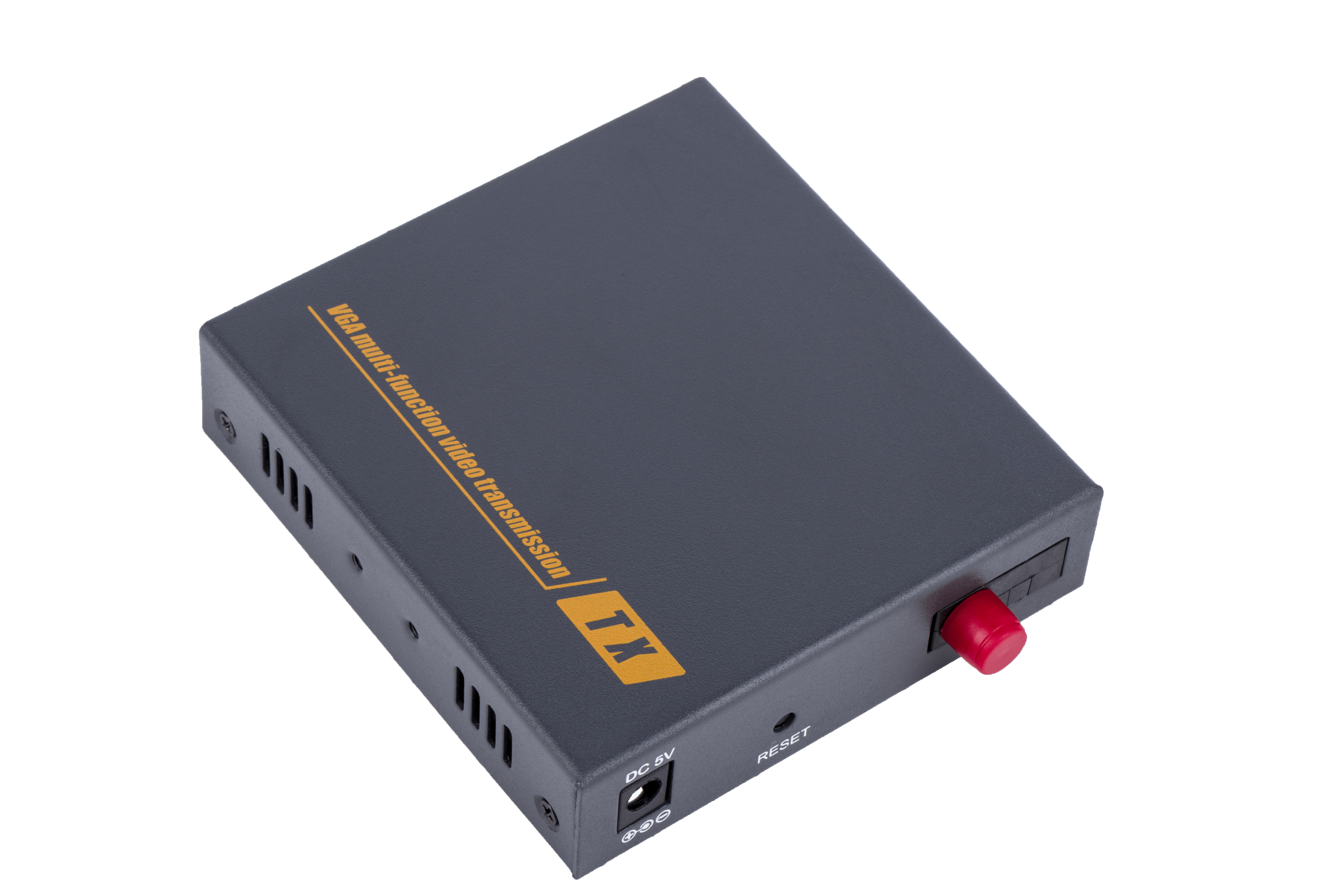

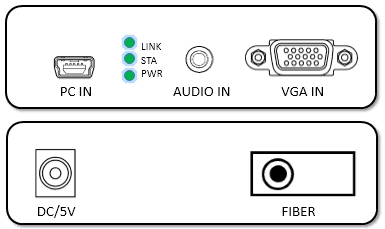

Transmitter

VGA + KVM Fiber Extender

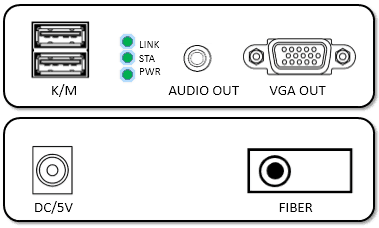

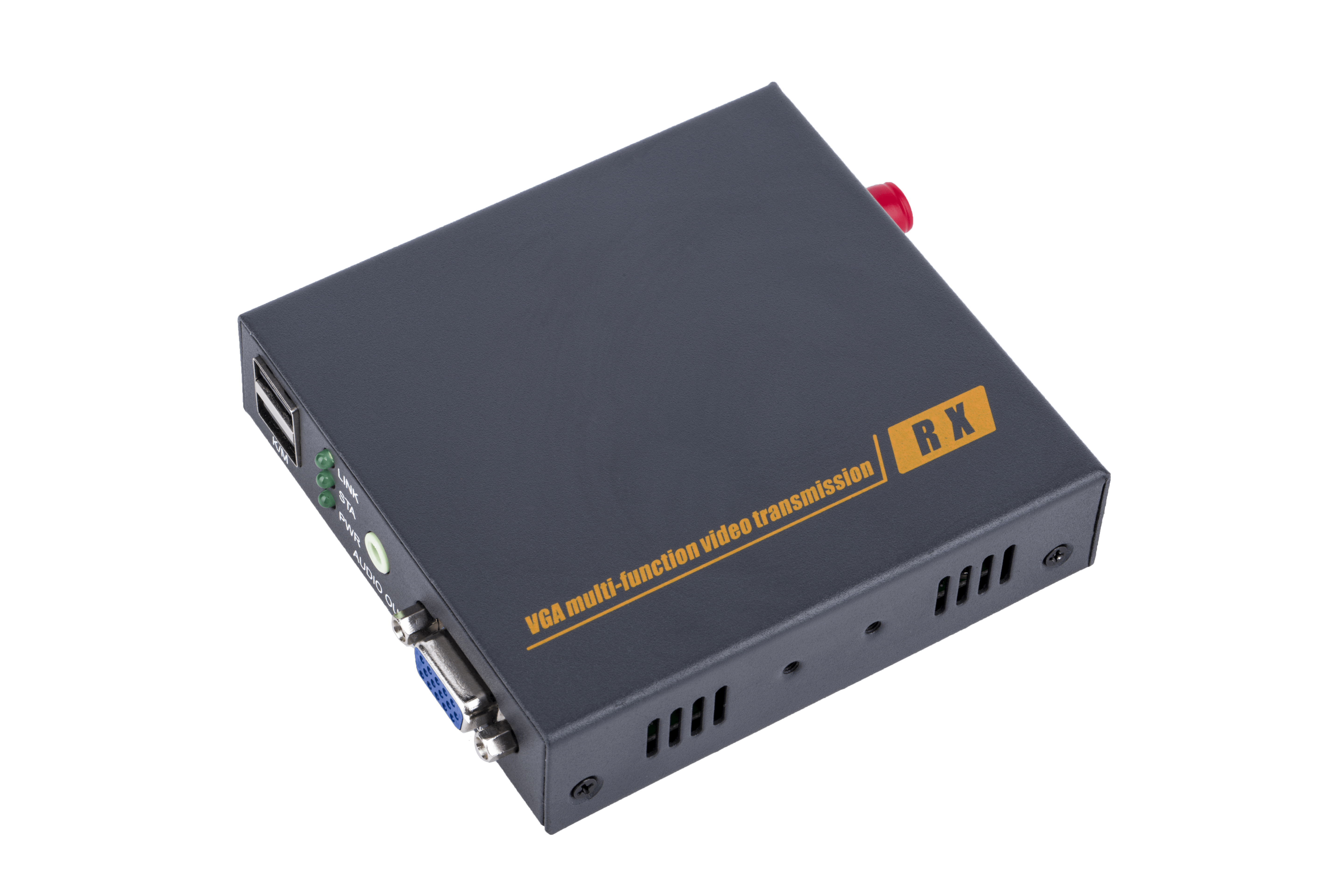

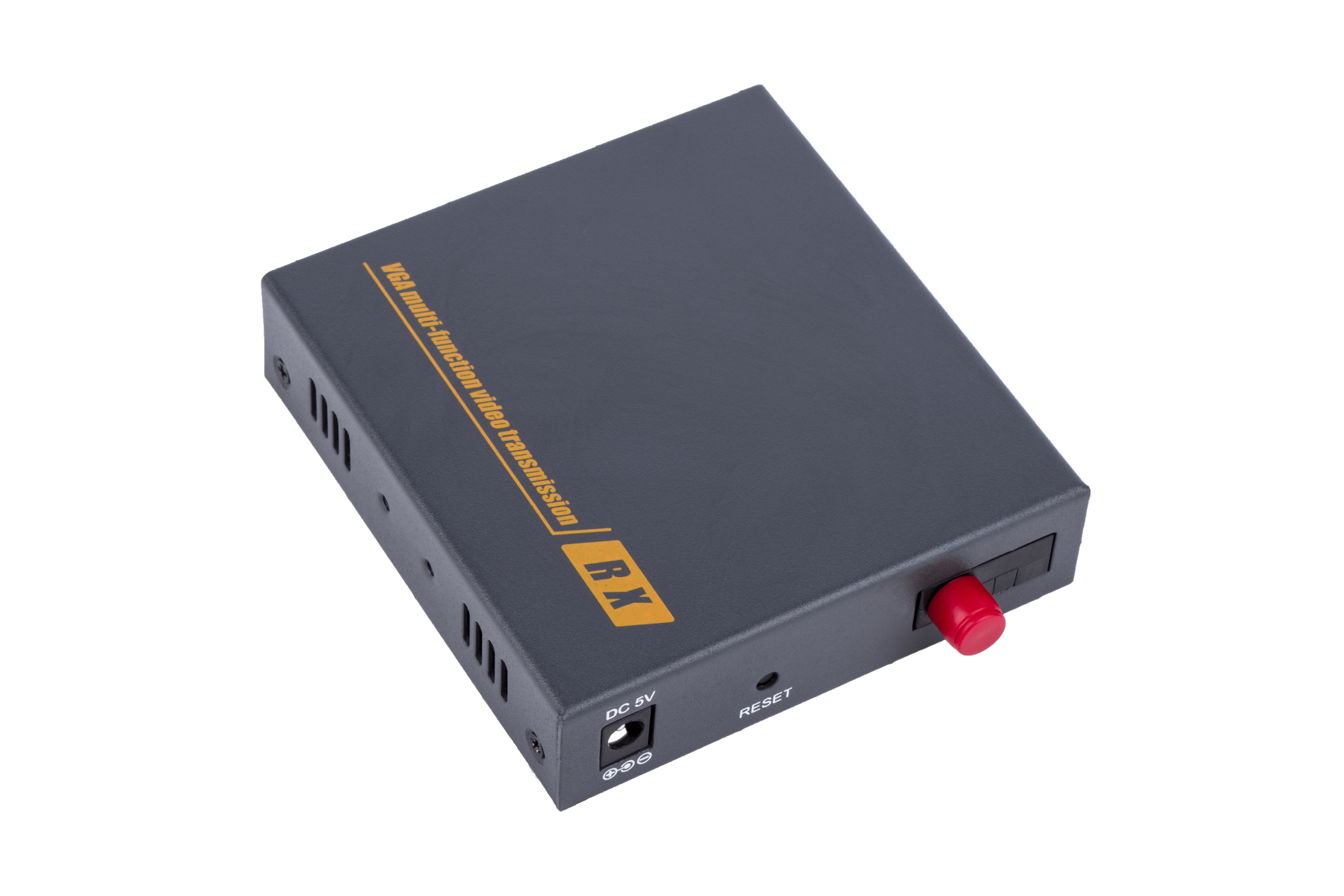

Receiver

VGA + KVM Fiber Extender

Port Name	Function
VGA IN/OUT	VGA signal input/output
AUDIO IN/OUT	Stereo audio input/output
PC IN	Host keyboard mouse signal connection
K/M	USB Keyboard mouse interfaces
DC/5V	The power adapter input
Fiber port	SC, LC depends on SFP module
LED indicator	Description
LINK	Connect light
STA	Communications equipment indicator light
PWR	System power indicator

Installation

The VGA signal source access VGA Extender transmitter,
Stereo audio access VGA Extender transmitter,
Use Mini USB cable to the computer and the VGA extender sending end.
The receiving end VGA Extender connected to a display device (such as
high-definition TV, splicing screen, etc.),
The VGA extender output audio access receiving end audio equipment,
The USB keyboard and mouse access VGA Extender receiving end,
Use network cable to connect the sender and receiver of the Ethernet port,
The sender and the receiving end on the power, when the lights are on, the system running.

Everything that is required from a setup is to connect your VGA, KVM and audio ports and you are good to go

AN-KVM-VGA-EXT02

VGA signal input/output, Stereo audio signal input/output, Host keyboard mouse signal connection, USB Keyboard mouse interfaces over fiber extender, distance depends on SFP module.
