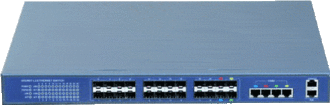

AN-L3-S5024ST 24 Port Gigabit SFP + 4 Port 10/100/1000Base-T Layer 3 Gigabit Switch
AN-L3-S5024ST 24 Port Gigabit SFP + 4 Port 10/100/1000Base-T Layer 3 Gigabit Switch is a new-generation switch for network security. It offers multi-service and high performance.With large capacity and high performance switching, it also features advanced security. It is the premium option for the convergence layer access control of small or middle-sized MAN, or the access switch for enterprise users.
- Advanced Security
- Comprehensive ACL access control policies
- User MAC address based ACL list definition
- IP protocol (TCP/UDP) based ACL
- TCP port number based ACL
- UDP port number based and time based ACL
- Can identify legal service terminals with bounded VLAN-IP-MAC
- Supports user access control protocol 802.1x
- Provides more efficient user port control than the traditional method
- Port MAC address limitation function can control the host number accessing the specified port;
- Supports PVLAN
- Offers strict port segregation within 802.1Q VLAN
- Patented CPU protection technique checks and filters the data sent to the CPU to avoid malicous attacks
- Several authentications for protocols such as RIP, OSPF, etc
- Flexible QOS
- Supports intelligent QoS to meet the high quality demand for voice, video and other real-time multimedia services
- Priority based on IEEE802.1P tagged information and quintuple flow classification service
- Supports flow-based multilayer CoS and ToS to meet the demand of real-time multimedia service such as ideo conference; Self-defined multilayer flow classification rules, with 1024 flow rules supported in one device
- 8 priority queues supported per port, with congestion prevention and flow-shaping
- Comprehensive routing protocol support
- Supports a rich set of routing technology which covers almost all the current existing routing technologies
- Supports unicast routing protocols: RIP V1, RIP V2, OSPF, BGP, static routing
- Supports multicast routing protocols: IGMP, PIM-SM
- Supports redundancy backup protocol: VRRP
- Convenient Maintenance and Control
- Supports NM methods such as SNMP, CLI, RMON, TELNET, WEB; Supports BOOTP,TFTP and FTP
| System | ||
| Port Number | 24 Port Gigabit SFP; 4 Port 10/100/1000Base-T Combo | |
| Switching Capacity | 48G | |
| Packet Forward Capability | >35.7Mpps | |
| Power Consumption | <70W | |
| Basic Performance | ||
| MAC Address Table | 32K | |
| Routing Table Entries | 8K | |
| Buffer Capacity | Shared 32M | |
| Forwarding Mode | Store-and-forward | |
| Network and Flow Control | ||
| PVLAN | Yes | |
| VLAN | 802.1Q 4k | |
| QoS | 8 priority queues per port; flow shaping and rich scheduling methods | |
| Queue Dispatching Methods | WRR, SP, WRR+ SP | |
| Port Convergence | FE, GE port convergence; maximum 32 groups with 8 ports per group | |
| Routing Protocols | ||
| Unicast | Static Routing, RIP V1/V2, OSPF V2, | |
| Multicast | IGMP, PIM-SM, | |
| Policy Routing | Yes | |
| Num of Routing Interfaces | 512 | |
| Security Feature | ||
| 802.1X | Yes | |
| Web portal | Yes | |
| ACL | 1K | |
| MAC address limitation | Yes | |
| Broadcast Strom Suppression | Yes | |
| CPU Protection | Yes | |
| Port Speed Limitation | 8K granularity | |
| Management Features | ||
| SNMP | SNMP V1 /V2c /V3 | |
| RMON | 1,2,3,9 | |
| HTTP | Yes | |
| CLI | Yes | |
| Dimension (L*W *H) | 443mm×360mm×44.5mm | 443mm×280mm×66.7mm |
| Working Environment | 0~40℃ 10～90％ non-condensing | |
| Weight | <6.5Kg | |
| AN-L3-S5024ST | 24 ports Gigabit SFP interfaces, 4 Port Gigabit TX combo Layer 3 Gigabit Switch |
Description
Supports comprehensive ACL access control policies, including: user MAC address based ACL,IP protocol TCP/UDP) based ACL, TCP port number based ACL, UDP port number based and time based ACL.
Can identify legal service terminals with bounded VLAN-IP-MAC; supports user access control protocol 802.1x, provides more efficient user port control than the traditional method; The port MAC address limitation function can control the host number accessing the specified port
