• Completely digital fiber transmit platform;
  • No need to configuration or any adjusting during the instalation, user friendly design;
    Based on self copyright IC;
  • No interference between analog in adjusting channel, picture and range;
    4 steps filtering;
  • Completely digital, broadcast transmition efficiently managed by specific IC;
  • High speed 10/100M Ethernet channel;
  • Full speed asynchronous date channel;
  • Flexible configuration on the same platform;
  • Power supply, link, video by dynamic indication;
  • Self-adapt in PAL, NTSC, SECAM standards;
  • ASIC based design;
  • transmit distance: up to 100KM
  • Power supply:220v,-48v,+24, +12v,+5(optional), any specific on reuqest;
  • Special MINI type design for limited space enclosures!

Video interface:



Input/output impedance: BNC 75 ohm unbalance interface
Input/output voltage: peak 1 vpp, max 1.5 Vpp
Signal: PAL/NTSC/SECAM
Video bandwidth: 8MHZ
Video number wide: 8/10/12 bit
Differential gain: <1%
Differential phase: <0.6°
Slope: <0.5%
Luminance delay inequality: 10ns
Luminance gain gap: ±10%
Weighted noise ratio: 66db



Date interface (can support 1~4 line asynchronous date RS-232/485/422)

Physical interface: industry standard terminal lead
Full duplex/half duplex
Interface type: RS-232/485/422 Manchester
RS232 rate 0-115.2Kbps
RS-422/485 rate: 0-115.2Kbps
RS-422/485 transmit distance: 0-1200m
RS-422/485 agreement support RS-485/422 agreement
Error rate: <10-9
Fiber interface
Physical interface: FC/PC/ST/PC
Fiber type: single/multi mode
Transmit distance: multi mode up to 2 km, single mode up to 100 km, WDM available



Audio interface: supports 1 line optional and bidirectional audio

Audio input/output: impedance 600 balance/unbalance interface industry standard terminal lead.
Audio input/output level: 2Vp-p
Frequency response: 10 Hz-20 KHz
Audio channel width: 24 bit
Weighted noise ratio: 80db
Total Harmonic Distortion: 0.1%



Ethernet interface
Physical interface: shielding RJ-45
support IEEE 802.3/802.3u/802.1q VLAN
IEEE 802.3x full duplex and Back-Pressure half duplex flow control.



Working environment



Work temperature: -30~+75
storage temperature -45~+85
humidity : 0-95% without condensation
input voltage :220V-48V,+24V+12,+5V optional
power 5W (single terminal)



Application scenarios:

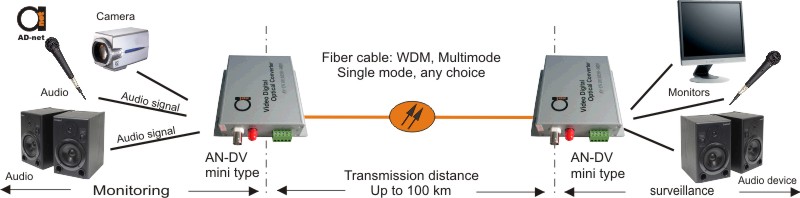

video over fiber

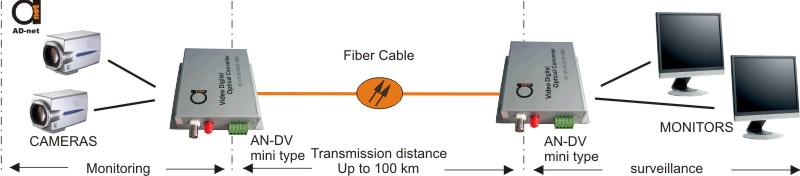

video over fiber

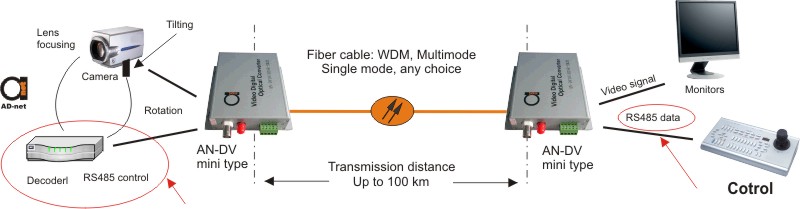

video and ptz data over fiber



Features Presentation:



Quick Setup Tutorial:



DV:

Digital Video complete product series

first number (1)

number of channels of positive broadcast video signal

second number( 0)

number of channels of positive high-fidelity audio

third number( 1)

number of channels of asynchronous date

forth number (1)

number of channels of Ethernet;

fifth number( 0)

number of telephone channels

first letter

Z means positive video ,F means passive video, D means bidirectional video

second letter

Z means positive audio ,F means passive audio, D means bidirectional audio

third letter

Z means positive asynchronous date means passive asynchronous date, U means bidirectional asynchronous date

fourth letter

S means signal module 1310nm, U means singlel mode 1550nm
M means multi mode 1300nm
W means1310nm/1550nm WDM

fifth letter:

T means transmitter, R means receiver

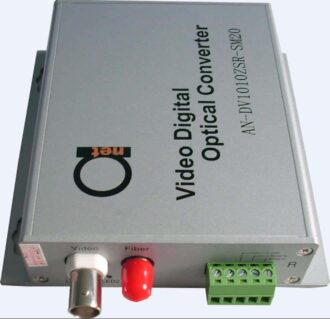

Product Description

AN-DV1000 video over fiber series supports any high resolution dynamic or stationary picture high-fidelity video over fiber transmit. It also can be anti-disturbance against several signals, environment, and work stably. It is widely used in security monitoring and control, high way, electronical policy management, automation control, intelligent residential districts and so on.

It can work shortly after it is installed. You could select any date interface by set. It is connected easily and it can indicate power supply, link, video, also adjust video. There are three way installation kits available: desktop and rack mount;



It can be used in varios ways, for example:



  • Intelligent transportation system;
  • High speed way video monitoring and control system;
  • Toll monitoring and control system;
  • Close circuit TV industry monitoring and control;
  • TV program switching channel transmit;
  • High-fidelity video conference system;
  • Security monitoring and control system.
