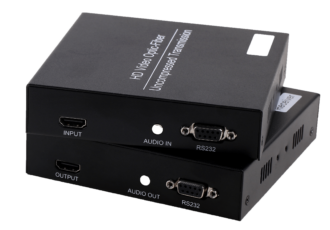

KVM HDMI fiber optical extender

The AN-KVM-HDMI-EXT01 Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID pass-through, KVM signal, RS232 signal and external audio transmission function.

Long-distance transmission of HDMI, audio, RS-232 signals via a single optical fiber.
All-digital, uncompressed, high-definition optical fiber transmission.
HDCP unvarnished transmission, EDID unvarnished transmission
The sender supports HDMI audio transmission and independent stereo transmission.
The receiver HDMI can take the audio output and a separate stereo output.
Supports 1080p 60Hz, single-mode fiber transmission up to 1 km.
Real-time transmission of high-definition uncompressed HDMI digital video signal, the video is clear and stable
Support for serial unvarnished transmission, baud rate can adapted by itself.
Support KVM function.
Built-in ESD protection circuitry, can effectively prevent electrostatic damage
Site installation: easy, plug and play, no need to set

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	4.5Gbps
	Resolution range	Up to 1920X1080P@60Hz
	Connector	Female HDMI type A
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
RS232	Interface	DB9 socket
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
KVM	Interface	To PC: standard USB-B, To K/M: standard USB,
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	4.5Gbps
	Transmission distance	OM3 multi-mode fiber: maximum 500m， Single-mode fiber: standard 1km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	13613030mm
	The warranty	1 year free warranty

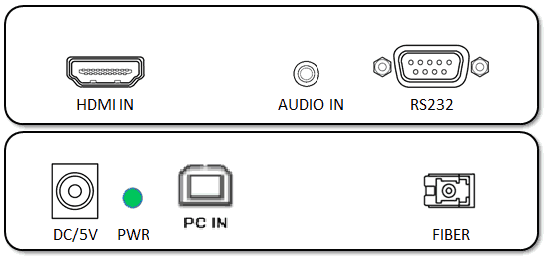

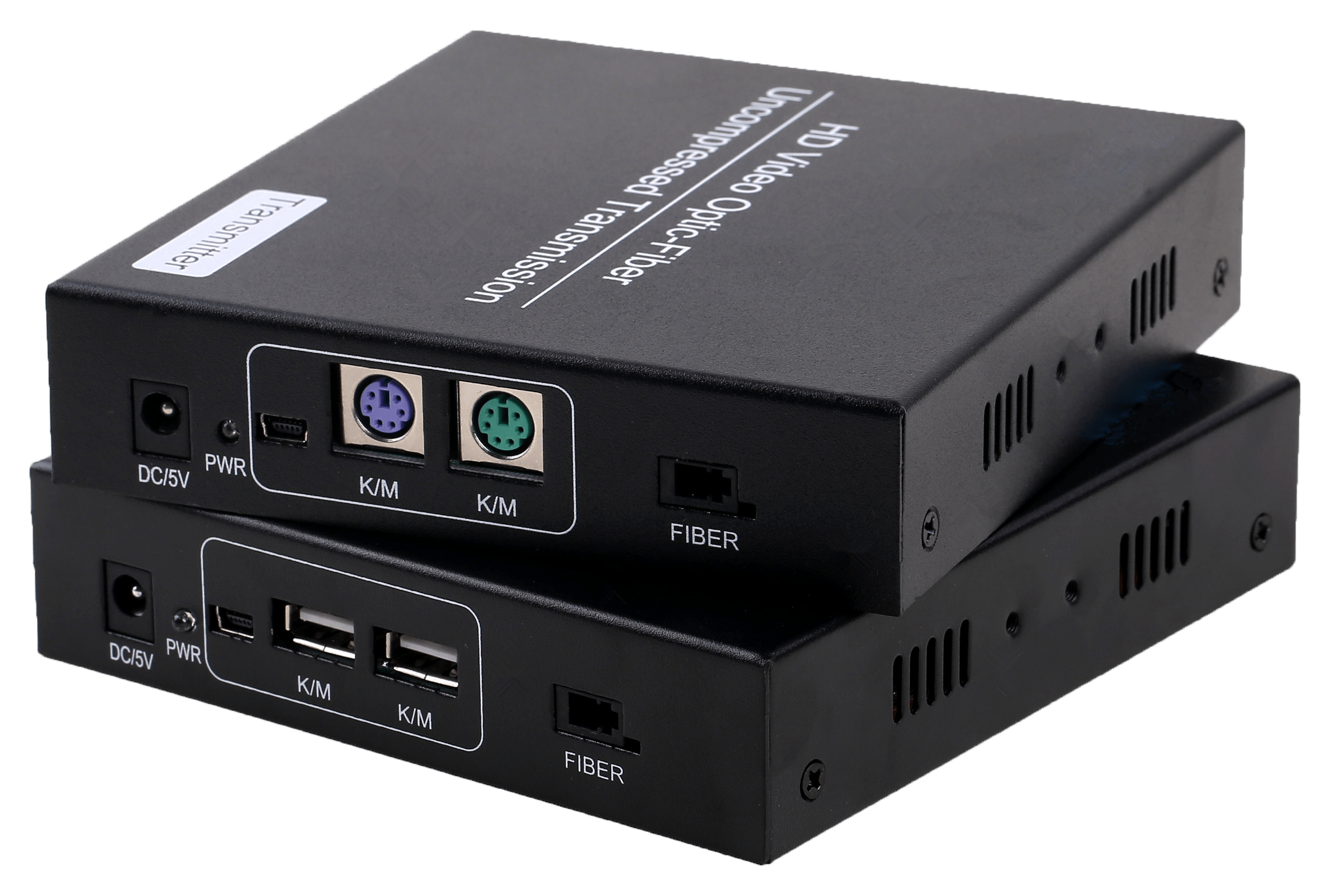

Transmitter:

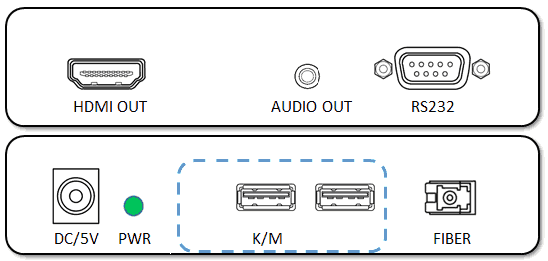

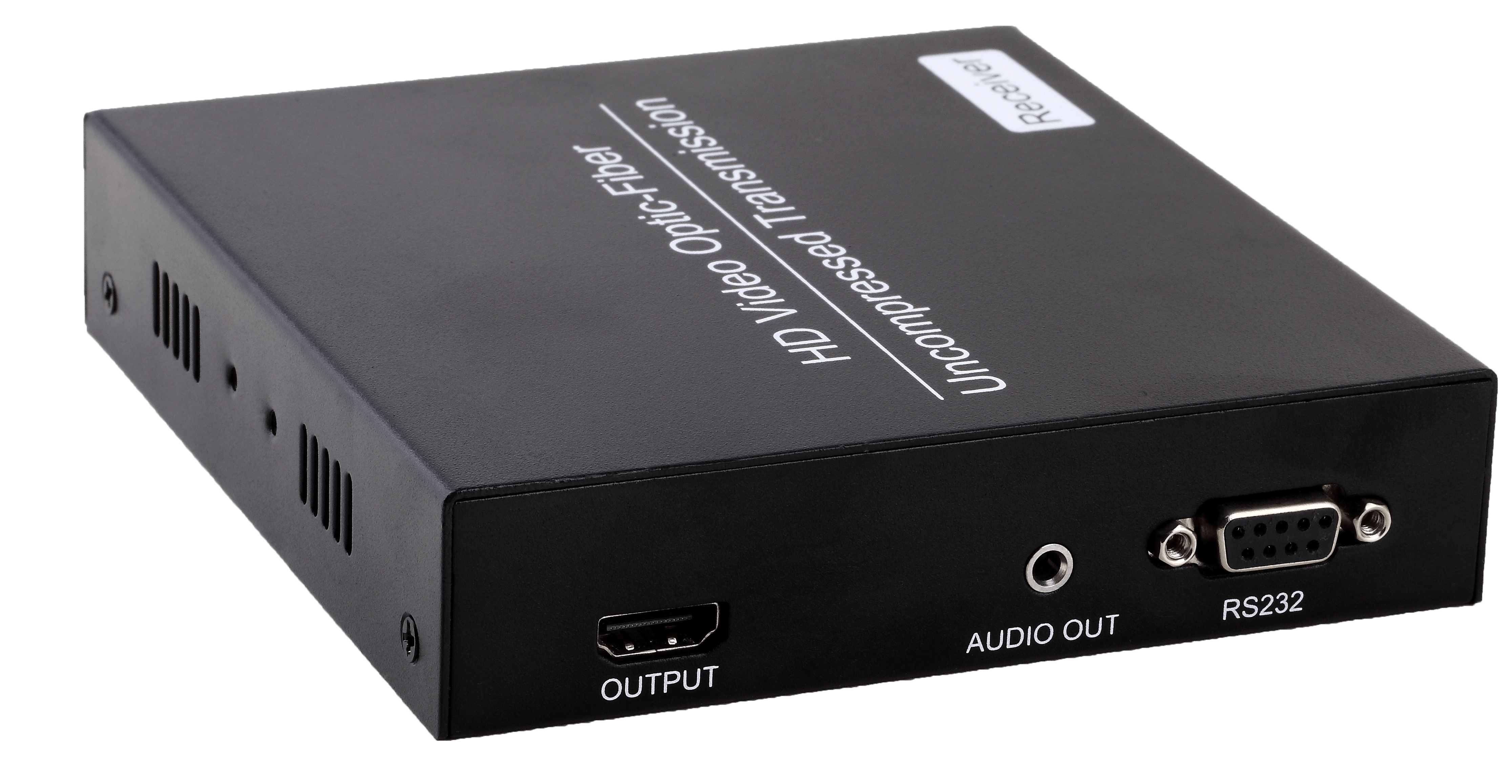

Receiver:

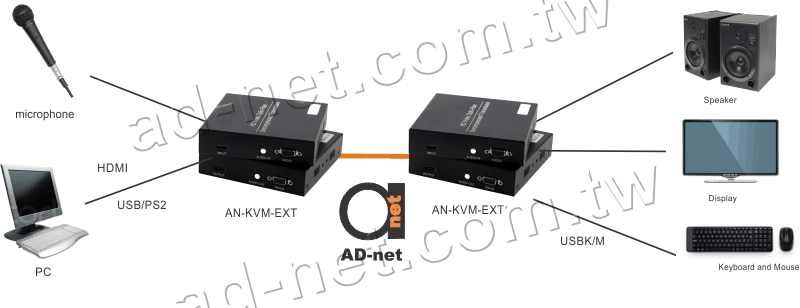

KVM HDMI fiber optical extender_scheme

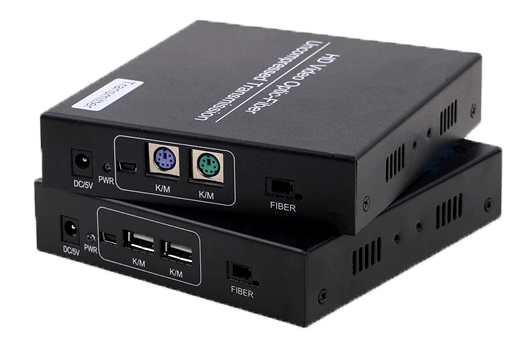

AN-KVM-HDMI-EXT01

KVM HDMI over fiber extender kit, receiver + transmiter, power supply included

Description

The extender can use for a wide range of applications requiring long distance

transmission of high resolution with high quality by its good stability and powerful security.
