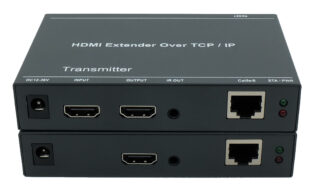

H.264 HDMI Extender over TCP/IP

The HDMI extender transmit HD video and audio over one cat5e/cat6 cable, over TCP/IP standard, At the same time support one to many application over Ethernet, it’s more convenient with infrared extensions to make remote control.

Transmits HDMI video and audio signals up to 200m over a single CAT/6 cable;
Support video resolution max up to 1920*1080p@60Hz;
HDMI 1.3 compatible
Special format is used to compress and decompress video, effectively improve the Transfer efficiency, to ensure that the playback fluency;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
Support external remote infrared extension, easy to operate the remote device;
Able to automatically identify and configure the various display modes;
Built-in automatic balance system, the picture is fluent, clear, stable;
Built-in ESD electrostatic protection circuit, all-round protection system security;
Installation easy and convenient, plug and play, do not need to set up;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Compressed format	H.264
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	Max: 1920X1080p@60Hz
	Connector	HDMI-A
	Impedance	100Ω
	Recommend HDMI maximum input/output range	Less than 5 meters, when 1920 x1080P @ 60 Hz
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	Signal type	Digital
	IR frequency	20-60kHz
Ethernet	Interface	RJ45
Ethernet	Transmission distance	CAT6—200m，
Other	Power supply	power adapter: DC 12-36V
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1608025mm
	The warranty	1 year free warranty

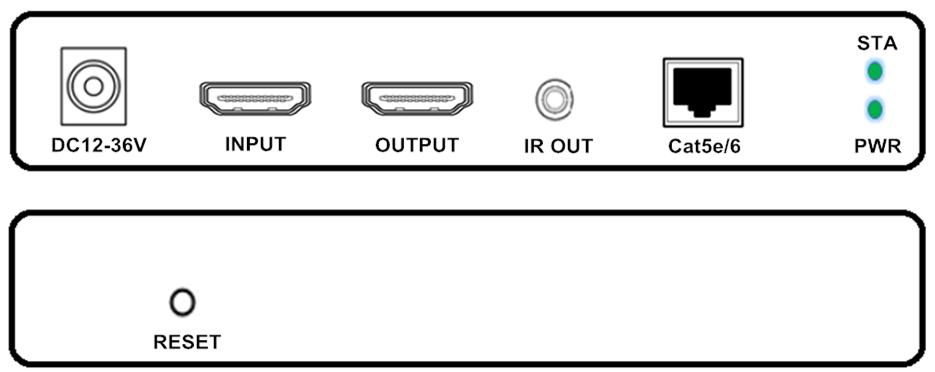

Transmitter:

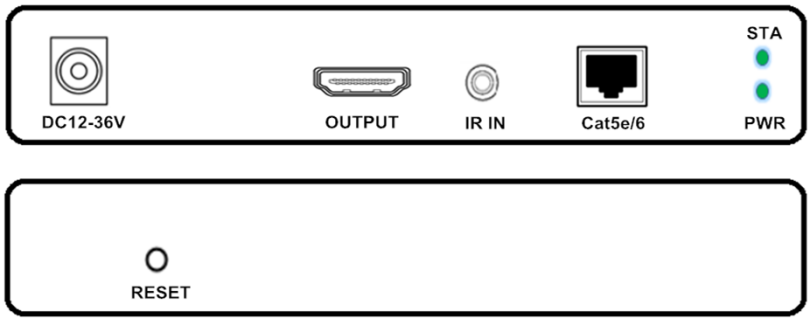

Receiver:

Port name	Description
INPUT/OUTPUT	HDMI signal input/output
IR IN/OUT	IR signal input/output
Cat5e/6	Ethernet interface
DC 12-36V	Power adapter socket
RS232	Serial data interface（G：cathode，T：Transmitter，R：Receiver）
RESET	Press for 5 second to restore system setting to factory default
LED indicator	Description
LINK	cable connection indicator
STA	Video signal connection indicator
PWR	System power indicator

Plug-n-Play set-up demo video using HDMI monitors and IR control

In this video, you can notice how local HDMI output works along with remote end signal. In this video HDMI signal tester is connected at remote end and works as remote end monitor, while big monitor is connected to TX device local output port. No delay between both ends!

AN-HDMI-ETH-EXT05

The H.264 HDMI over LAN extender set with IR TX/EX function, 1 set.

Description

The equipment has excellent image processing and transmission capacity, makes signal transmission more smooth and steady, is a kind of economic and efficient way of HDMI signal extension.
