• Comes from a AD-net GEPON family, which offers fully integrated triple play solution to deliver TV, Internet and phone services at same platform
  • Multiple services on one platform, no expensive over-build in last mile network

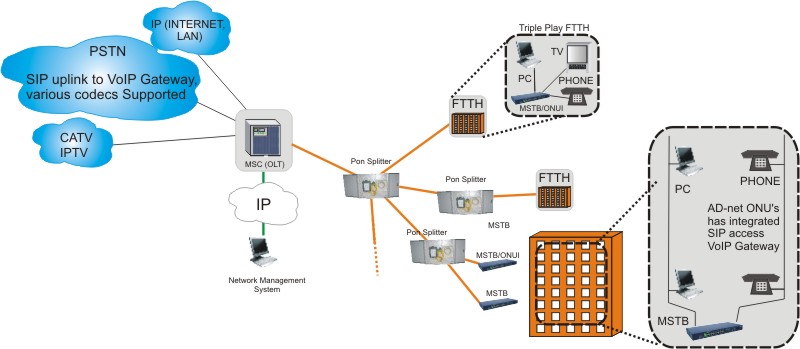

  • Point-to-multipoint topology with splitter without field power requirement
  • Offer a real future-proof access network with flexiblilty and upgrade capability
  • Passive splitters to eliminate outside plant and field power requirements, to lower CAPEX and OPEX (no energy needed for splitter)
  • Supports features like legacy DDN and voice, QoS and SLA give carriers the ability to create profit-generating applications and customized service offerings
  • Easy management, easy accounting and easy upgrade with flexibility and scalability
  • Multicast support for IPTV video streaming
  • Split ratio up to 1:32 and 1:64 reaching up to 20 km
  • L2/L3 routing features
  • Managed by logical and easy GUI manager and SNMP

System Capacity

Provide 2 ports – 1 10/100/100 Gigabit and 1 10/100 Fast Ethernet
Link budget: >29dB

PON Interface

1Gbps transmission rate
Network reach: 30 km
Receiver sensitivity: <=-26dBm
Security: ONU authentication

Standards

IEEE 802.3ah
MII GEPON standards
IEEE 802.1p 802.1Q 802.1d 802.1w
IEEE 802.3ad

Power

120 ~240V AC,broaden compliant
Power consumption: Max 10W

Ethernet Service

MAC learning and banding
DBA
Qualities of Service
Rate control
ACL RSTP
Broadcast limit
Encryption
Layer 2 isolation
IGMP multicast

Power

120~240V AC, broaden compliant

Video: GEPON products & Applications: PART 1

Video: GEPON building blocks & topologies: PART 2

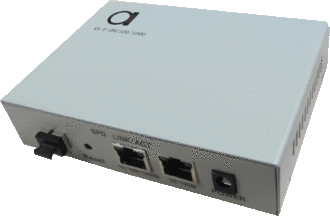

AN-E-ONU100/1000

1 port Fast Ethernet 100 Mbit/s + 1 port 10/100/1000 Gigabit Ethernet, 1 PON uplink, GEPON ONU

Product Description

This is a most popular and smallest ONU from AD-net offered ranage now – it has a 2 ethernet interfaces, 1 FE and 1 GE, and can be used for SOHO/FTTH access, for connecting such services, like IPTV, internet access and telephony
