• Transmit 10/100 BaseT Full Duplex Ethernet up to 2000m over any 2-wire copper cable
  • One AD-net master at the network-end can support multiple slaves and connected devices
  • Different terminals to choose such as RJ45, RJ11, BNC, Two Pins terminals etc.
  • Low power consumption, high performance error correction coding technology
  • Built-in transient protection; Industrial temperature range
  • LAN extender for IP camera traffic or LAN – it’s universal
  • Easy configuration, plug and play

Category

Description

Power

Available Voltage Range

12VDC

Power Consumption

<1.5W

Transmission / Rate

Standard Compliance

IEEE1901, IEEE802.3

Up down Agreement

CSMA/CA

Physical Bandwidth

500Mbps

Actual Throughput

130Mbps

Encryption Way

128-bit AES Encryption

Reliability

MTBF

>30000 hours

Product Physical Characteristic

Dimensions (L × W × H)

108mm×84mm×24mm

(including the terminal length)



Material

Aluminum

Net Weight

0.24KG/Pair

Operating Environment

Working Temperature

-20℃ ~ 65℃

Storage Temperature

-20℃ ~ 70℃

Working Humidity

20% ~ 85%

Storage Humidity

10% ~ 90%



The above data for TCP throughput, is the measured data in the actual environment. The maximum physical layer data is 240Mbps. For coaxial cable transmission, performance is more stable, but it also affected by the cable and terminal matching methods. On 1000 meters cable, accessing eight nodes, the distance between two nodes is 100 meters apart; The above tests are all finished in the field test.

lan extender

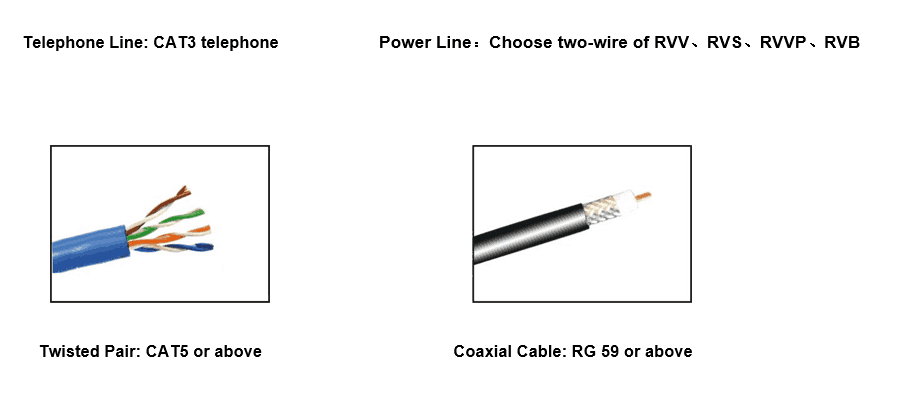

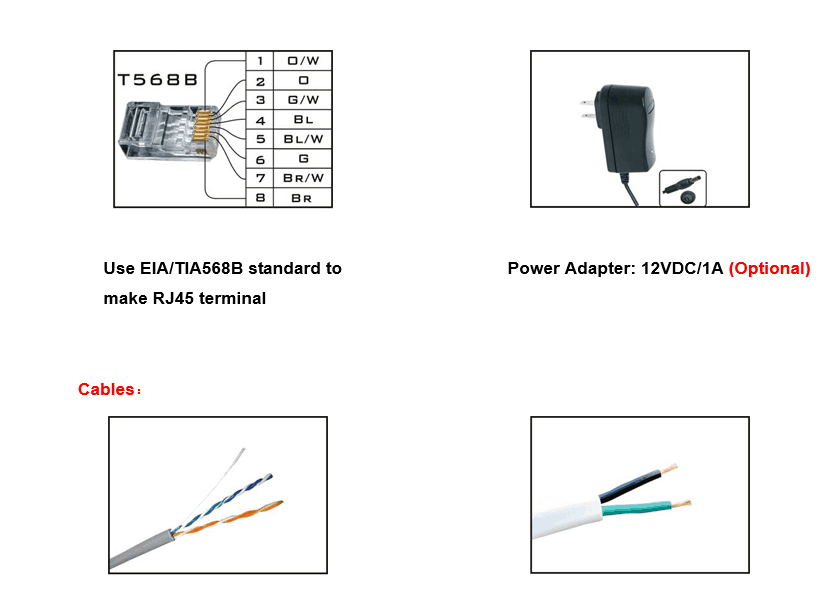

Accessories and possible cables to use:

lan extender

lan extender

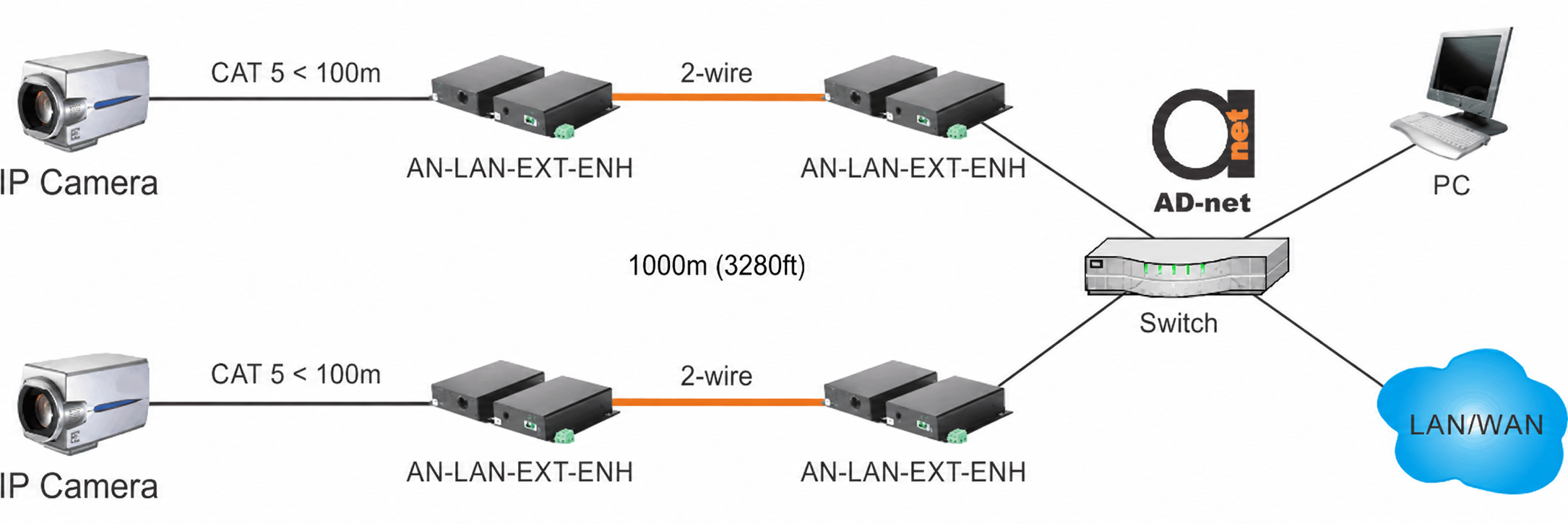

Video shows installation example of IP camera extended over UTP cable, however, every Ethernet device can be used, such as PC’s, LAN switches etc.

AN-LAN-EXT-ENH-240-RJ11A/B

Enhanced LAN extender for twisted pairs or telephone cables, RJ11 for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 240 Mbit/s

AN-LAN-EXT-ENH-500-RJ11A/B

Enhanced LAN extender for twisted pairs or telephone cables, RJ11 for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 500 Mbit/s

AN-LAN-EXT-ENH-240-RJ45A/B

Enhanced LAN extender for twisted pairs or telephone cables, RJ45 for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 240 Mbit/s

AN-LAN-EXT-ENH-500-RJ45A/B

Enhanced LAN extender for twisted pairs or telephone cables, RJ45 for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 500 Mbit/s

AN-LAN-EXT-ENH-240-PINA/B

Enhanced LAN extender for twisted pairs or telephone cables, 2 pin terminal for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 240 Mbit/s

AN-LAN-EXT-ENH-500-PINA/B

Enhanced LAN extender for twisted pairs or telephone cables, 2 pin terminal for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 500 Mbit/s

AN-LAN-EXT-ENH-240-BNCA/B

Enhanced LAN extender for twisted pairs or telephone cables, BNC connector for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 240 Mbit/s

AN-LAN-EXT-ENH-500-BNCA/B

Enhanced LAN extender for twisted pairs or telephone cables, BNC connector for line interface, RJ-45 for LAN port, included 12V power adapter. Raw data layer speed up to 500 Mbit/s

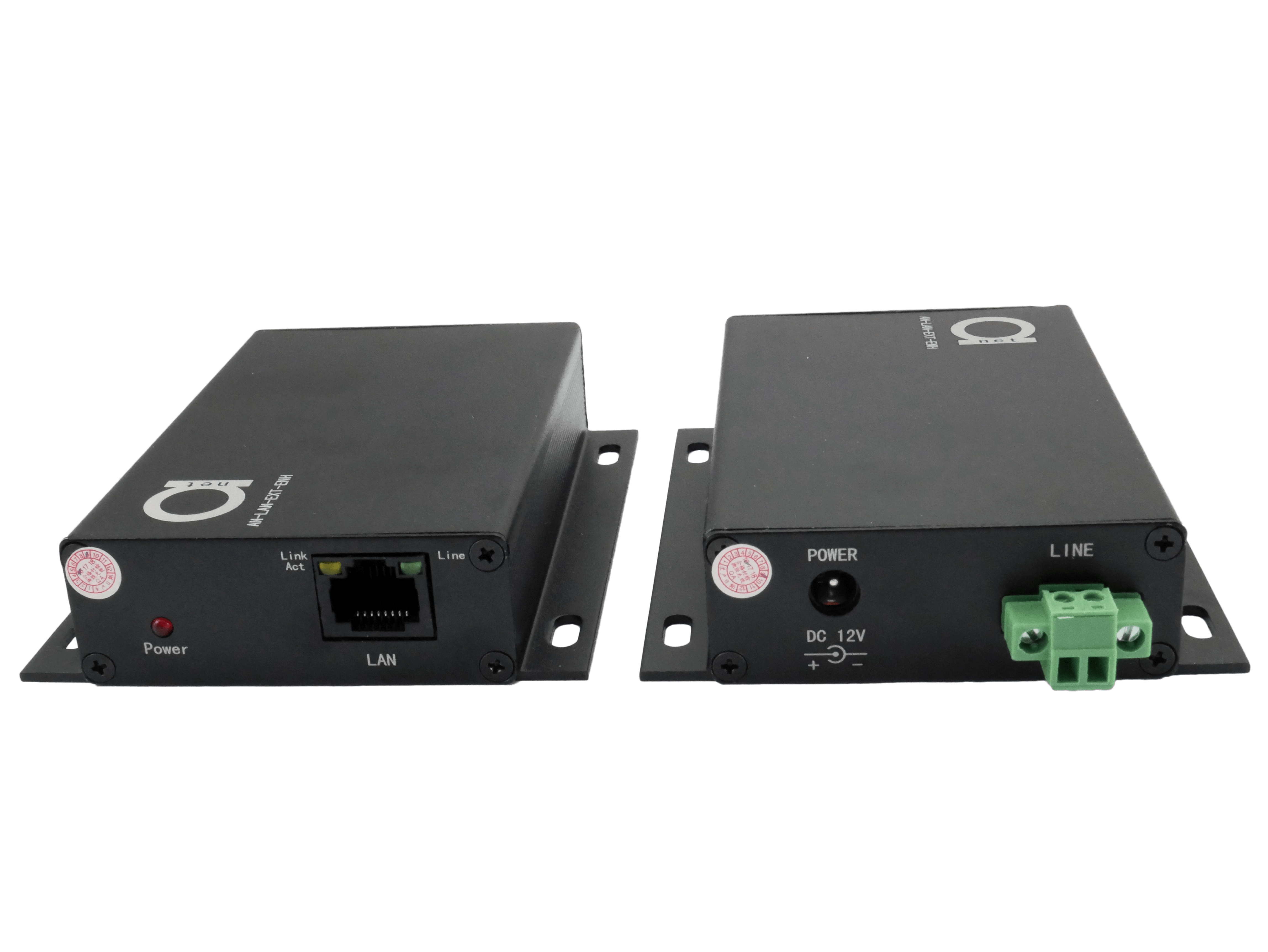

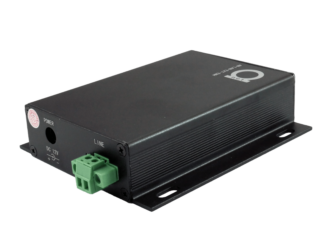

Product Description

The AD-net model AN-LAN-EXT-ENH Ethernet over 2-wire LAN Extender is a compact media converter that allows 10/100 BaseT Ethernet to be transmitted using any 2-wire copper cables. These devices are often used in legacy installations where existing wire is re-used as part of an upgrade to IP devices. You can use one master at the network-end can support multiple slaves and connected devices.

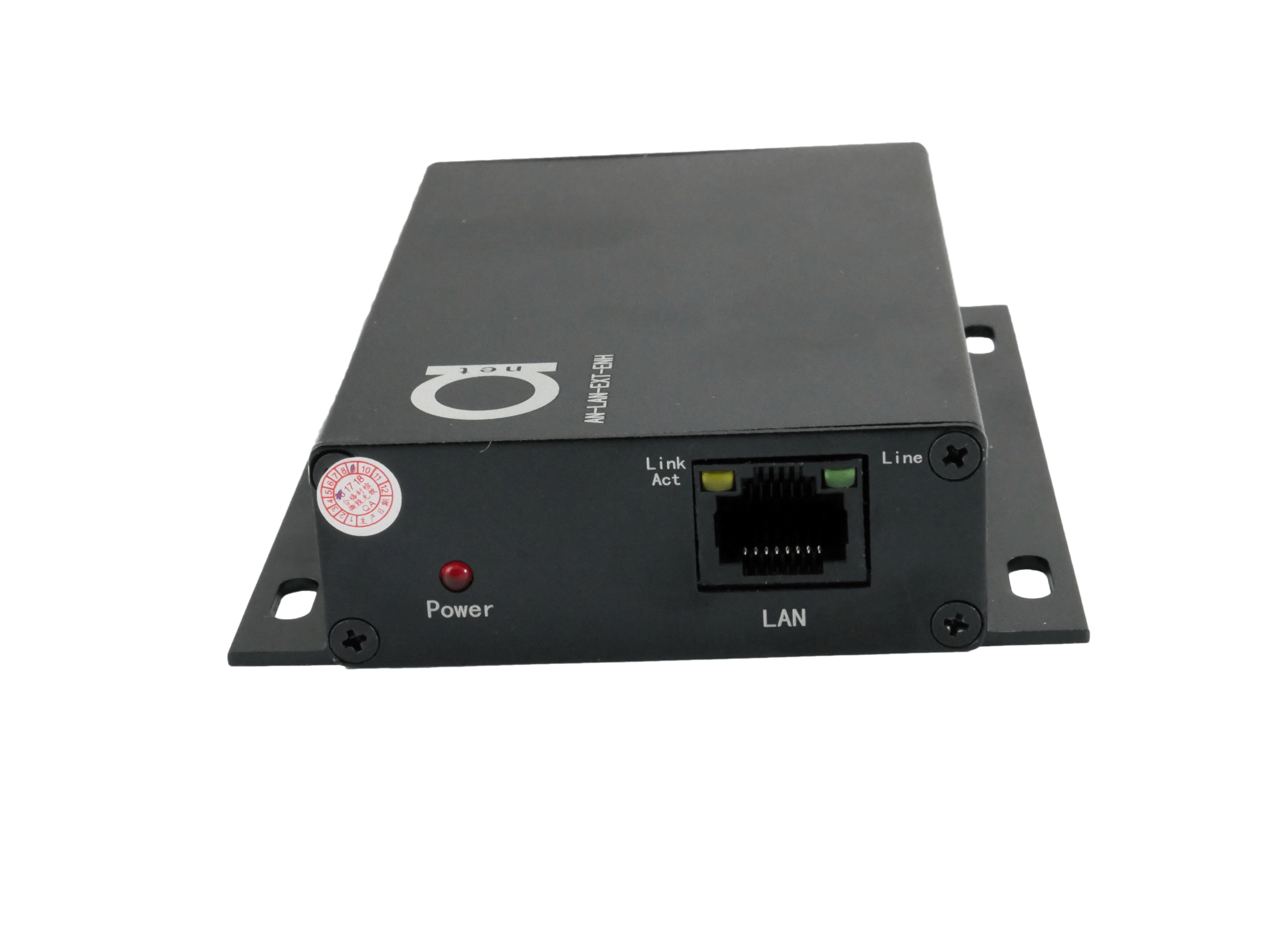

These LAN extenders are extremely simple to use and easy configuration. Status LEDs indicate power and link connectivity/activity for RJ45 and 2-wire ports. This product can be widely used for network extension system, network security system, network information publishing system, network renovation and expansion systems, railway, urban traffic, mining and telecommunication, etc.
