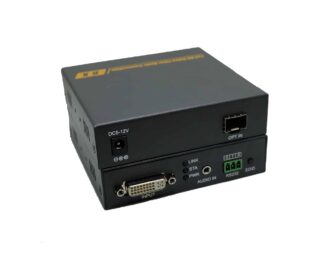

DVI & Stereo Audio to Fiber Converter / Extender set

The AN-DVI-EXT05 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1920*1200, EDID copy, signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 2km over a pair fiber optic cable;
Support video resolution up to 1920*1200P@60Hz,3D;
Support EDID copy function, can match many kind display device;
Support external stereo audio unidirectional transmission;
Compliance with DVI 1.0.
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	DVI 1.0;
	Resolution range	Up to 1920X1200@60Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
Optical fiber	Interface	LC connector
	Fiber type	Single-mode a pair fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	10Gbps
	Transmission distance	standard 2km
Other	Power supply	The power adapter: DC 5-12V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	12012030mm
	The warranty	1 year free warranty

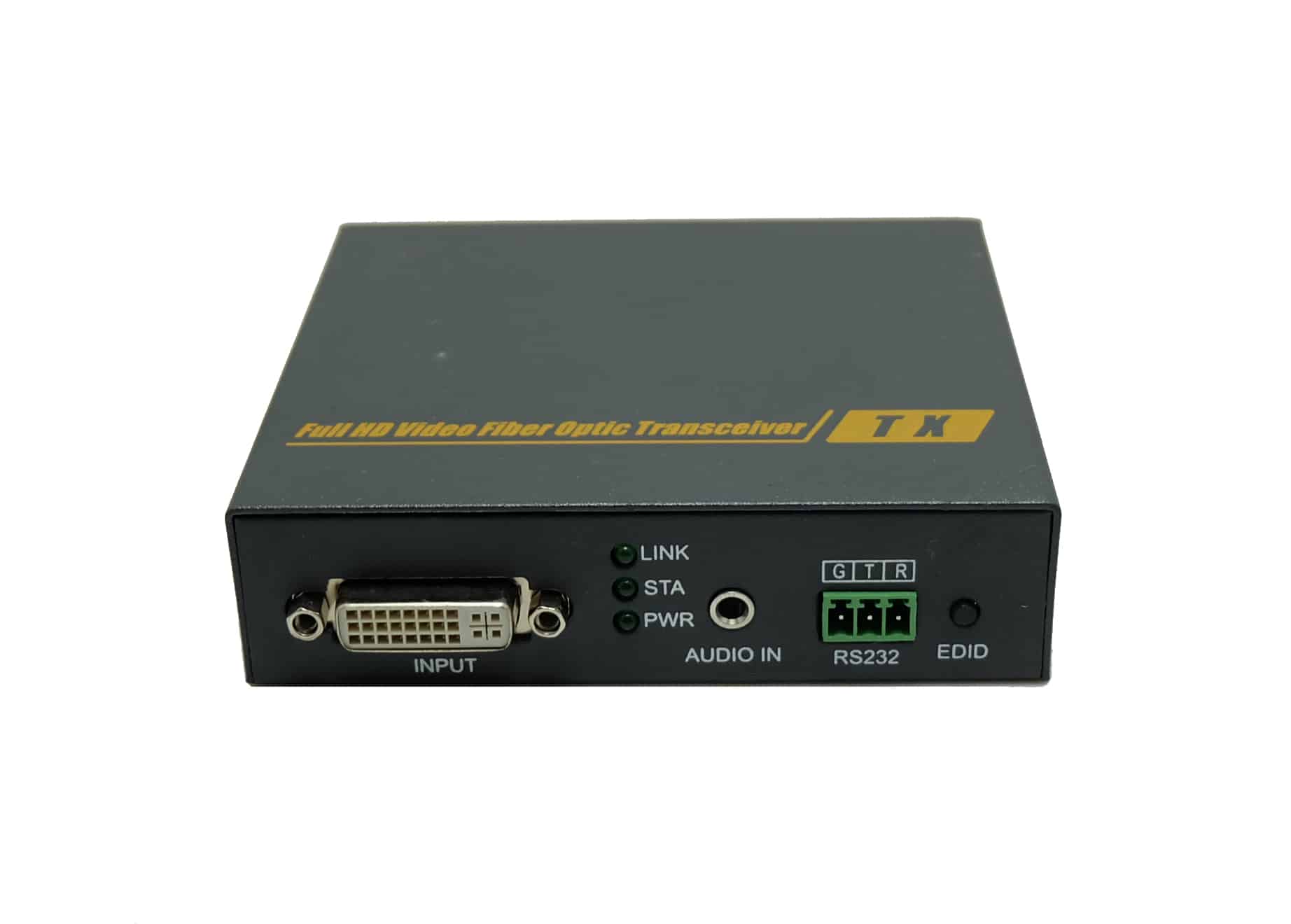

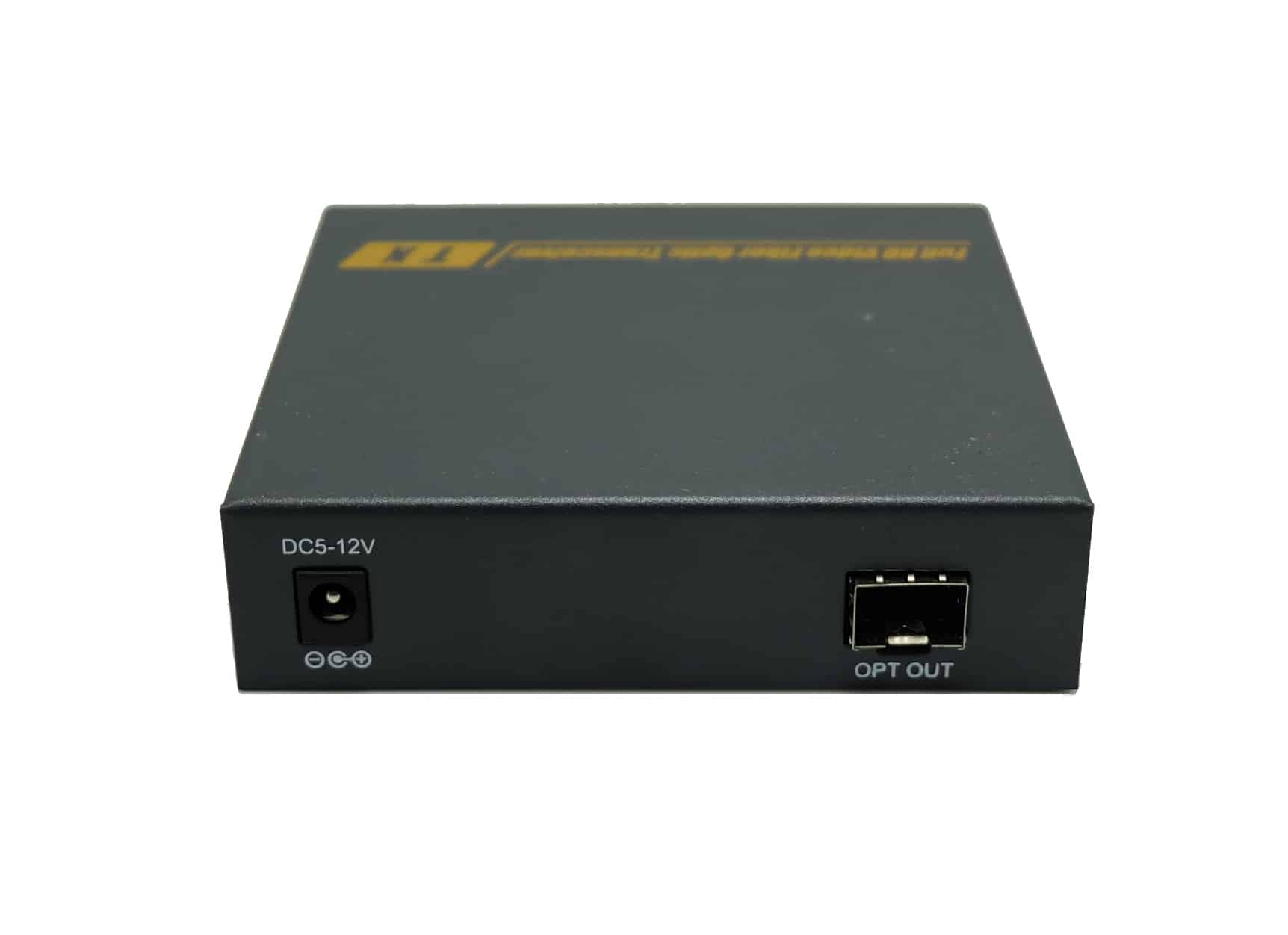

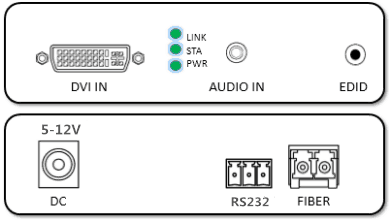

Transmitter:

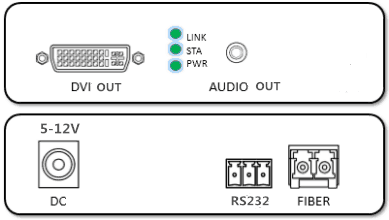

Receiver:

Port name	Description
DVI IN/OUT	DVI signal input/output
Audio IN/OUT	Stereo audio signal input/output
DC/12V	Power adapter socket
Fiber	LC connector
LED indicator	Description
PWR	System power indicator
LINK	Fiber connect indicator
STATUS	DVI connect indicator

AN-DVI-EXT05

DVI-D + 3.5mm stereo audio over single mode fiber extender set
