• Connects 75 ohm dual coax to 120 ohm twisted pair (or visa versa)
  • Bi-directional signal conversion according to CCITT G.703
  • Data rates up to 2.048 Mbps
  • Low profile design
  • Mounts in standard 19″ (48.3 cm) Rack
  • No AC power or batteries required
  • Female coax BNC connectors

Transmission Line: CCITT G.703 (unstructured)
Data Rate: 2.048 Mbps
75 Ohm Connection: Dual female BNC connectors
120 Ohm Connection: Shielded RJ-45 jack
Power Supply: none required
Link-to-Data Isolation: 500 Volts AC/DC
Temperature Range: 32-122 °F (0-50 C)
Data Rate: 19″ wide x 3.5″ high x 1.9″ deep (48.3 x 8.9 x 4.8 cm)

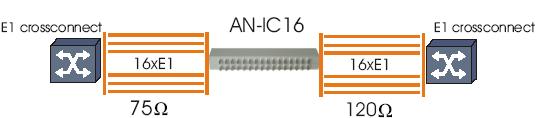

Application scenario:

Testing video:



AN-IC16

G.703 Balun Panel (75-Ohm to 120-Ohm) for modular 19' rack mount's

Product Description

AN-IC16
G.703 rack mount balun panel lets you match the connectors, impedance and signal characteristics of up to 16 dual coax BNC connections (75 ohm) with up to 16 twisted pair connections (120 ohm). Operating in compliance with the CCITT G.703 specification, the AN-IC16 occupies only 2U (3.5″/8.9 cm) of vertical rack space in a 19″ (48.3 cm) rack-allowing for efficient multiport matching.
