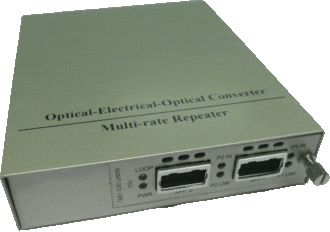

10G OEO XFP – XFP Media Converter(1R Repeater)

1R Repeater
Support Jumbo Frame
Transparent Transport and very low delay
Support ITUT prescribed DWDM/CWDM wavelength
Support hot plugging
Support 2U Rack (16 channel) and standalone use
Full State Led display
Easy installation

Performance Data	Technical Indexes
Equipment function	1R Repeater
Transmission Speed	9.95Gb/s-11.35Gb/s
Protocols	SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS
Interface Type	XFP to XFP
Transmission Distance	XFP module: Up to 80Km
Maximum Packet Forwarding Rate	14,880,950/S
power requirement	Rack-mountable : AC 85 ～ 220V OR DC -48V Standalone: AC 110~220V OR -48V Power consumption: ≤4W
Work Environment	Operating Temp: 0~ 50 ℃ Storage Temp: -10~ 70 ℃ Humidity: 5%~90% （ non-condensing ）
Dimension	Card ： 11.5mm （ W ） × 78mm （ D ） Standalone ： 156mm （ W ） × 128mm （ D ） × 32mm （ H ）

XFP-XFP converters can be used as well as standalone converters (like you can see them on chassis in this video), or as plugin in cards in AN-CH10 chassis as well.

AN-M10-10G-XX-M

10G Standalone managed OEO(Optical-Electrical-Optical Converter (1R Repeater)) XFP-XFP port(without Module) media converter

Description

AN-M10-10G-XX-M is XFP-XFP OEO type media converter / repeater for connection between fiber to fiber 10Gbps equipment function as fiber mode converter ,or as fiber repeater for long distance transmission. It is available as standalone unit with separate external power supply, or as plug in card inAN-CH10 chassis.

It’s main applications are such as connection between fiber to fiber or fiber to copper 10Gbps equipment function as fiber mode converter ,or as fiber repeater for long distance transmission or OEO for network backbone(SAN, LAN, MAN).

It support SDH/SONET STM-64/OC-192，10G fiber channel，10G Ethernet etc and can be applied in Telecommunication room, R&D laboratory, Data center or even 1310nm /1550nm/CWDM/DWDM Optical Wavelength Conversion.
