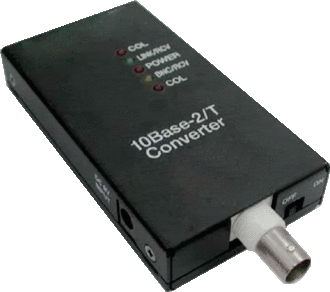

10Base-2 (Thinnet Coax BNC) to 10Base-T Ethernet Converter

AN-10BT-10B2 converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thin Ethernet Network to a 10Base-T UTP network.

Ports:
1xRJ-45 from (Hub/station)
1xBNC socket to 10 Base-2

Cable lenghts:
100 M max. per UTP cables
185 M max. per Thin Ethernet

Power supply:
Input 110V or 220V AC
Output 9V DC, 1 Amp

Environmental:
Temperature: 0 to 55C (standard operating)
Humidity: 10 to 90% (non-condensing)

Standards
10 to 90% (non-condensing)
Meets FCC Class A Subpart B of Part 15 Requirement
IEEE 802.3 10Base-T/10Base-2
Star CSMA/CD

Topology
Baseband Twisted Pair expand upon to 4 level Thinnet up to 30 Hubs

Dimensions: 0.79″ (H) x 2.17″ (W) x 4.09″ (D)

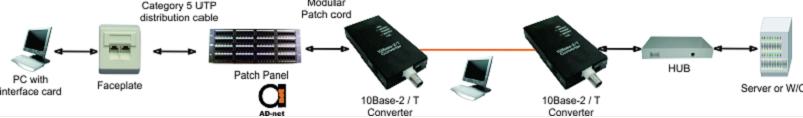

Application scenario:

AN-10BT-10B2

Ethernet 10Base-2 to Ethernet 10Base-T Converter

Description

AN-10BT-10B2 Converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thinet Coax BNC Ethernet Network to a 10Base-T UTP network. AN-10BT-10B2 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.
