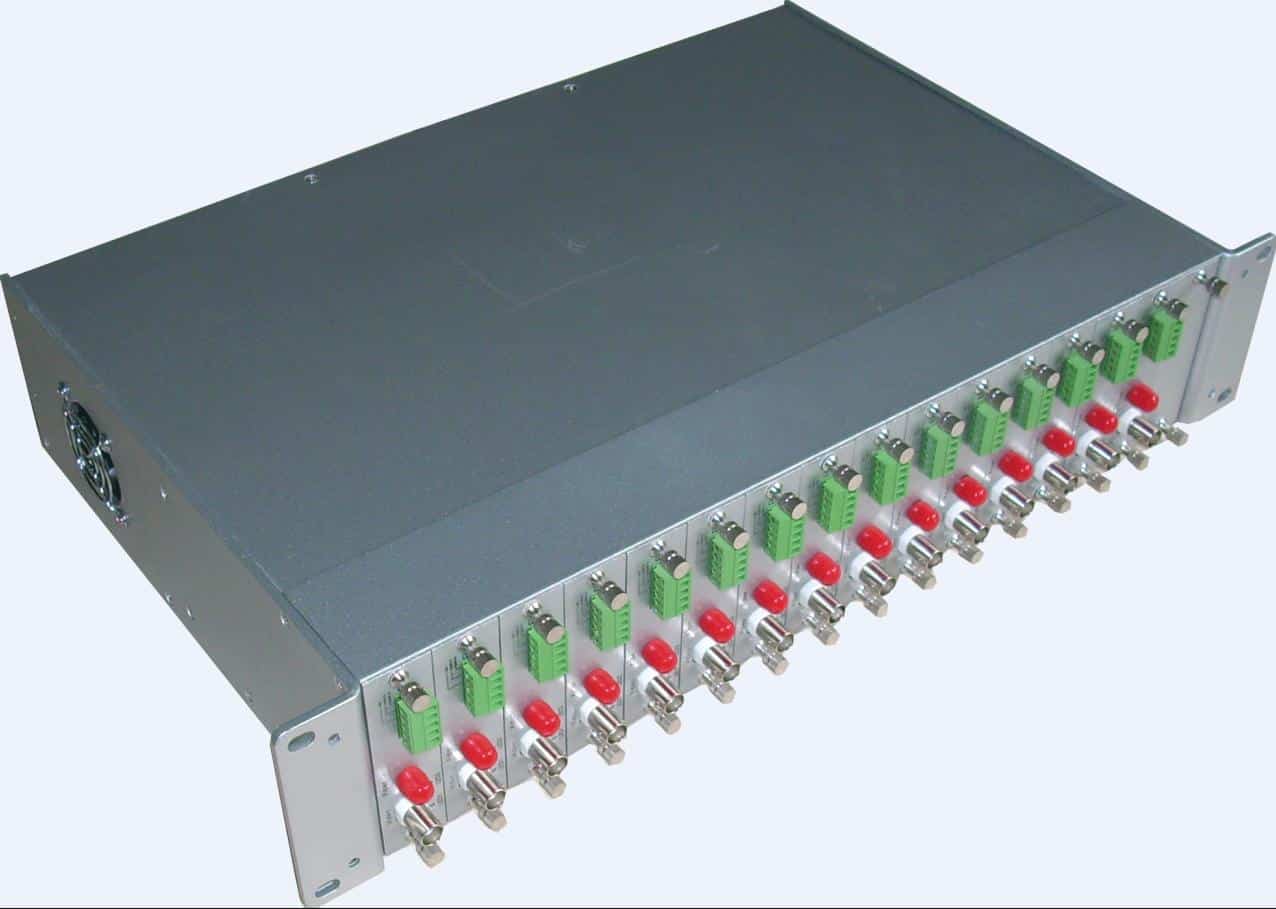

Designed for continuous operation, the chassis is equipped with dual cooling fans and redundant power supplies (optional). Its Plug-and-Play and Hot-Swap features allow installing/removing the converter unit without powering off the chassis. AN-CH08 rack-mount chassis eliminates the external power adapters for AN-dv series video over fiber converters and organizes multiple converters in a single unit, which makes it the perfect solution for managing multiple AN-DV series converters.

• 16 slots for video over fiber converter
• 19 inch rack mount, 2U high

• Internal back up power supply

• Plug and play operation

• Two power supply units in set;

• Compact & easy to install;

• State of art AD-net special design
• Any type of AN-DV converters can be ordered as plug in module;

• Diagnostic LED: Power LED

• Power input: 100-240VAC 50~60Hz
• Power consumption (full mode): 60W
• Power consumption (empty mode): 10W
• Operation temperature: 0~50 C
• Storage temperature: -30~60 C
• Dimension: 430mm(L) X 200mm(W) X 110mm(H)

Application scenario:


Features Presentation:
