AN-FM-PCM30 fiber mux can provide 1-8 channels, 1-16 channels, 1-24 channels, or 1-30 channels telephone through optical cable, the network application is point-to-point, supporting FXO/FXS. It has solved telephone transmission problem of edge customers. This equipment uses special digital multiple-connected chip whose function is formidable, and it integrates nearly all the digital logical function of equipment, thus remarkably enhancing product performance and reducing cost.

Additional channels of E1, Ethernet and RS-232 can be added upon request

• Low cost solution for delivering analogue POTS lines over long distance fibers;
• up to 30 FXO ports for connection to PABX or PSTN;
• up to 30 FXS ports for connection of phones or faxes;
• Ethernet port for LAN interconnection;
• RS-232 for data transmission
• Up to 4E1 ports as an option for PABX interconnection or any other E1 Leased lines services
• MTBF more than 10 years
• WDM Bidi fiber interfaces avalaible

FXS
ringing voltage: 75V
ringing frequency: 25HZ

FXO
two line input impedance: 600 Omega (hanging off)
wastage: 40 db
ringing detecting voltage: 35V

Optical Interface Parameter
optical wavelength: 850nm/1310nm for multi-mode optical interface, 1310nm/1550nm for single-mode optical interface
optical interface: SC/FC
receiving and dispatching module: >-6dBm
optical receiver receiving sensitivity <-36 (BER<10):
dynamic receiving range: >-30dB
transmitting range: Multi-mode 2 Km, single-mode 40Km, single-mode 60 Km, single-mode 120Km, WDM bidi available
vibration characteristic: Comforms G.742 and G.832 standard

Applications:

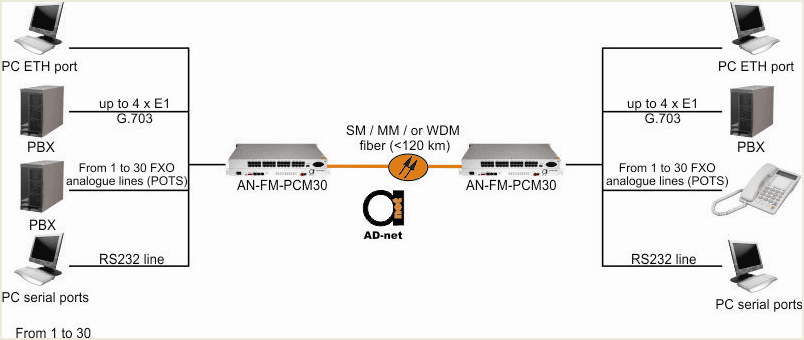

Scenario Nr1: Full connection scenario, where all possible connections are used - 30 FXS/FXO, RS-232, Ethernet and 4E1

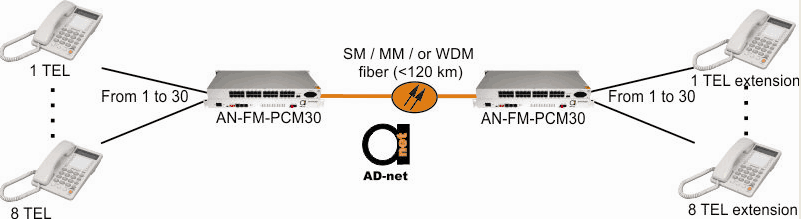

Scenario Nr.2: 1 - 30 FXS to 1 - 30 FXS configuration, clear channel

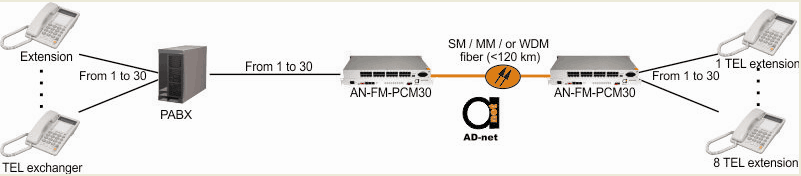

Scenarion Nr.3: 1 - 30 FXS -----> 1 - 30 FXO, for remote extensions from PABX
