AN-WEB-S5008 is an 8-port web- configurable optical Ethernet switch specifically designed to deliver enterprise-class features, customized and priced for small and mid-sized organizations. It provides an affordable solution for direct connection of up to eight computers / Ethernet-based terminals of FTTx, optical LAN, Ethernet based DCS and security surveillant system, etc., where the environmental conditions exceed the reach of CAT5 copper cable.
S5008 combines the latest advancements in fiber optic and chip technologies with feature-rich network management controls to give the most advanced, yet affordable optical Ethernet solutions. The functions of the S5008 Ethernet switch permit all the connected computers / terminals to be able to communicate and share the resources with each other without the limitation of physical location. A user-friendly browser interface provides easy-to-use tools so that even network novices can easily configure and administer the network, configure individual port speeds, VLANs, link aggregation, and traffic prioritization, keep an eye on network traffic and statistics, and troubleshoot the switch.
Network Protocol and Standards
IEEE802.3u 100Base-FX optical Ethernet
IEEE802.3x flow control
Eight 100Base-FX or eight 100Base-BX10 ports.

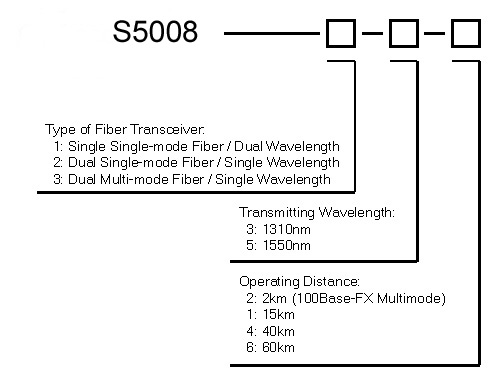

Optical Interface Options
Single single-mode fiber, dual wavelengths, SC/PC connector, operating distance 15/40 km.
Dual single-mode fibers, single wavelength, SC/PC connector, operating distance 15/40/60 km.
Dual multi-mode fibers, single wavelength, SC/PC connector, operating distance 2 km.
Dimensions: 19-inch rack-mount width, 1.0U height.
Operating temperature: 0 ℃ ~ 50 ℃
Storage temperature: -25 ℃ ~ 55 ℃
Humidity: 5% ~ 95% RH Non-condensing.
