Thailand: Easy & Helpful solution for road monitoring on AN-DV series

In Thailand, one of our system integrator partners has been implemented a comprehensive and very well designed road monitoring project using our Video Over Fiber product range.

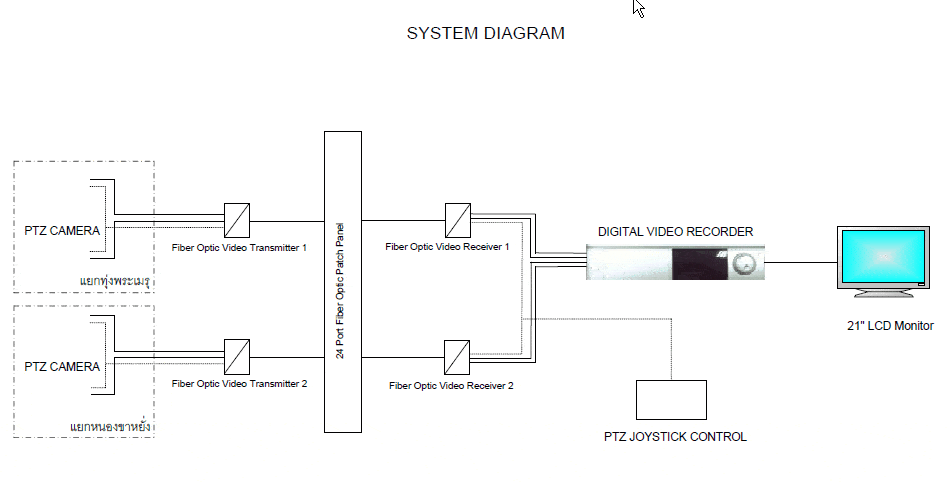

Below is asystem diagram of the project. As you can see, on the streets, the PTZ controlled cameras and AN-DV video over fiber converters has been located and connected via fiber infrastructure to Digital Video Recorder, and the PTZ control – tilting, zooming and panning of cameras is done via RS-485 interface – so, the center located engineers can not only see the live images in real time without any delays with a crystal clear picture, but also control the cameras.

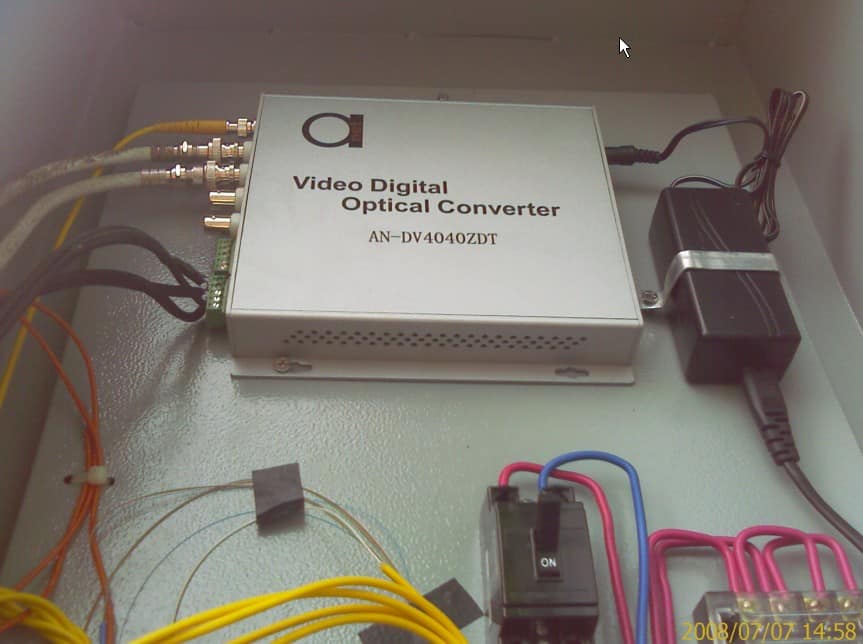

Below you can see the 4 Video + 4 RS-485 video over fiber converter in the special enclosure together with power supply. Also, check below the real time screenshots of road monitored.

ScreenHunter_03_Jul._08_16.25

ScreenHunter_04_Jul._08_16.33

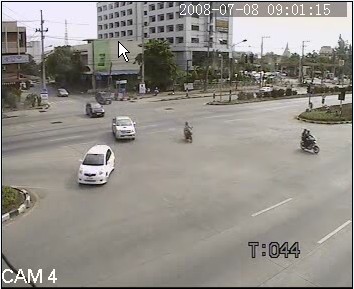

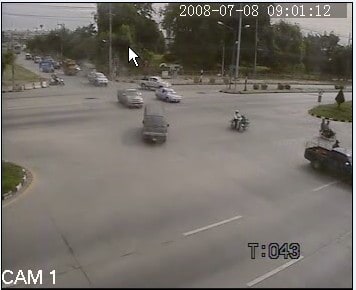

And here you can see then live pictures from street junction in Thailand

ScreenHunter_08_Jul._08_16.39 ScreenHunter_07_Jul._08_16.38 ScreenHunter_06_Jul._08_16.37
