SNMP managed n x E1/V35/ETH fiber multiplexer (5 Products)


Need more flexibility and modular design multiplexer with LCD and card based design? V35/E1/Ethernet cards added upon you grow? Then look no further to this. This is most versatile fiber multiplexer we have in a range!

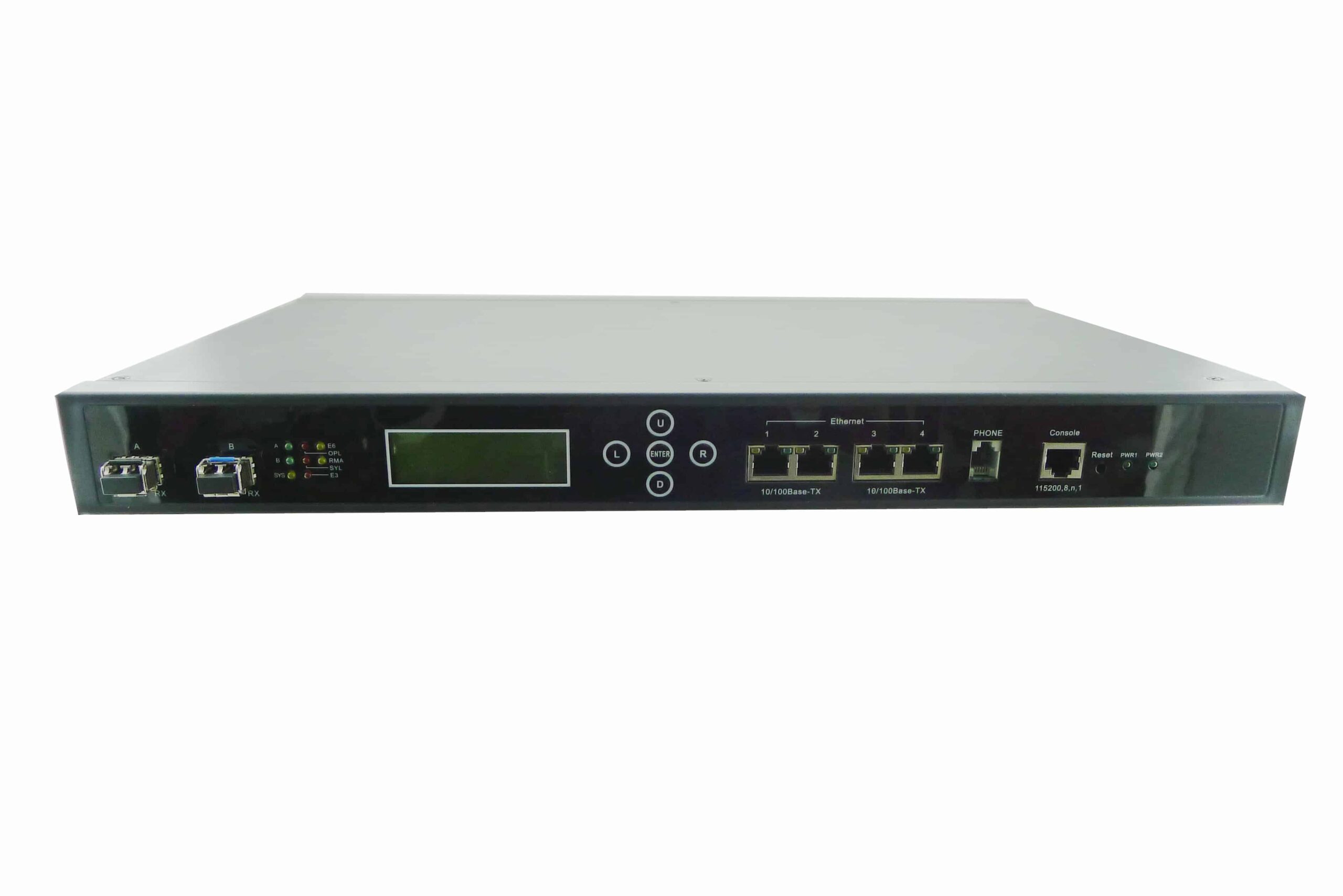

SNMP & LCD panel managed multiservice fiber multiplexer

SNMP managed, LCD console equipped, carrier class double 155 Mbit/s fiber multiplexer with modular service cards approach: n x E1, n x V.35. n x Ethernet at your choice. AN-FM-600 Modular Integrated Transmission Multiplexer can provide full speed 100Mbps fast Ethernet (FE) interface in accordant with IEEE802.3 and E1 interface complying with 16-channel standard. At the same time, it also…

New Generation Ring Supporting Multiservice Gigabit Ethernet and 32 E1 Fiber Optical Multiplexer

The AN-FM-32000 is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 4/8/16/32 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…

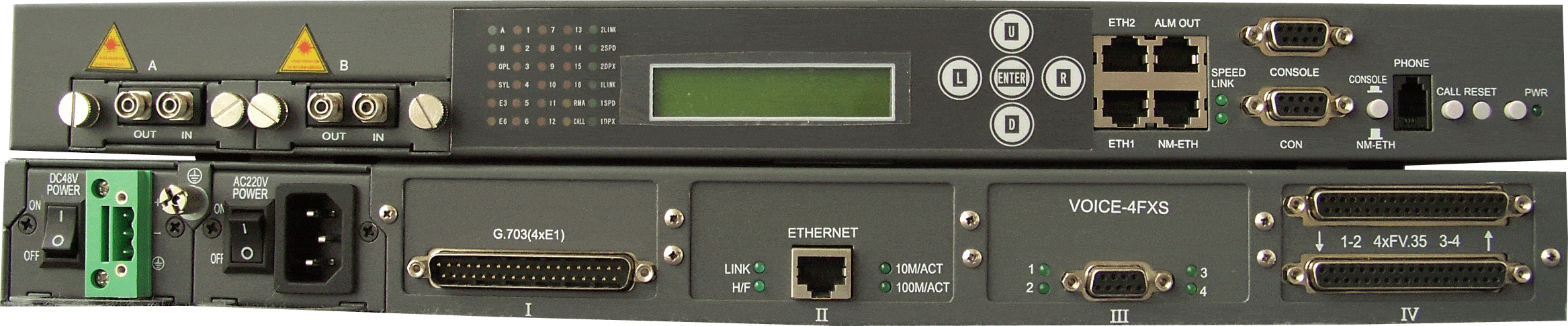

Modular Integrated Access Multiplexer – SNMP/LCD/Web managed

This device apply large-scale integrated circuit developed independently as its hardcore and can multiple 16-channel E1 signal, 4-channel 100M Ethernet on dual optical fiber to realize the hybrid transmission. Various Functional Modules: User interface modules (N×64K V.35, FV.35, FXO/FXS, E/M, RS232/RS485, and etc.), order wire module, network management module (RS232, and Ethernet Interface, etc.), and alarm output terminal module, etc.…

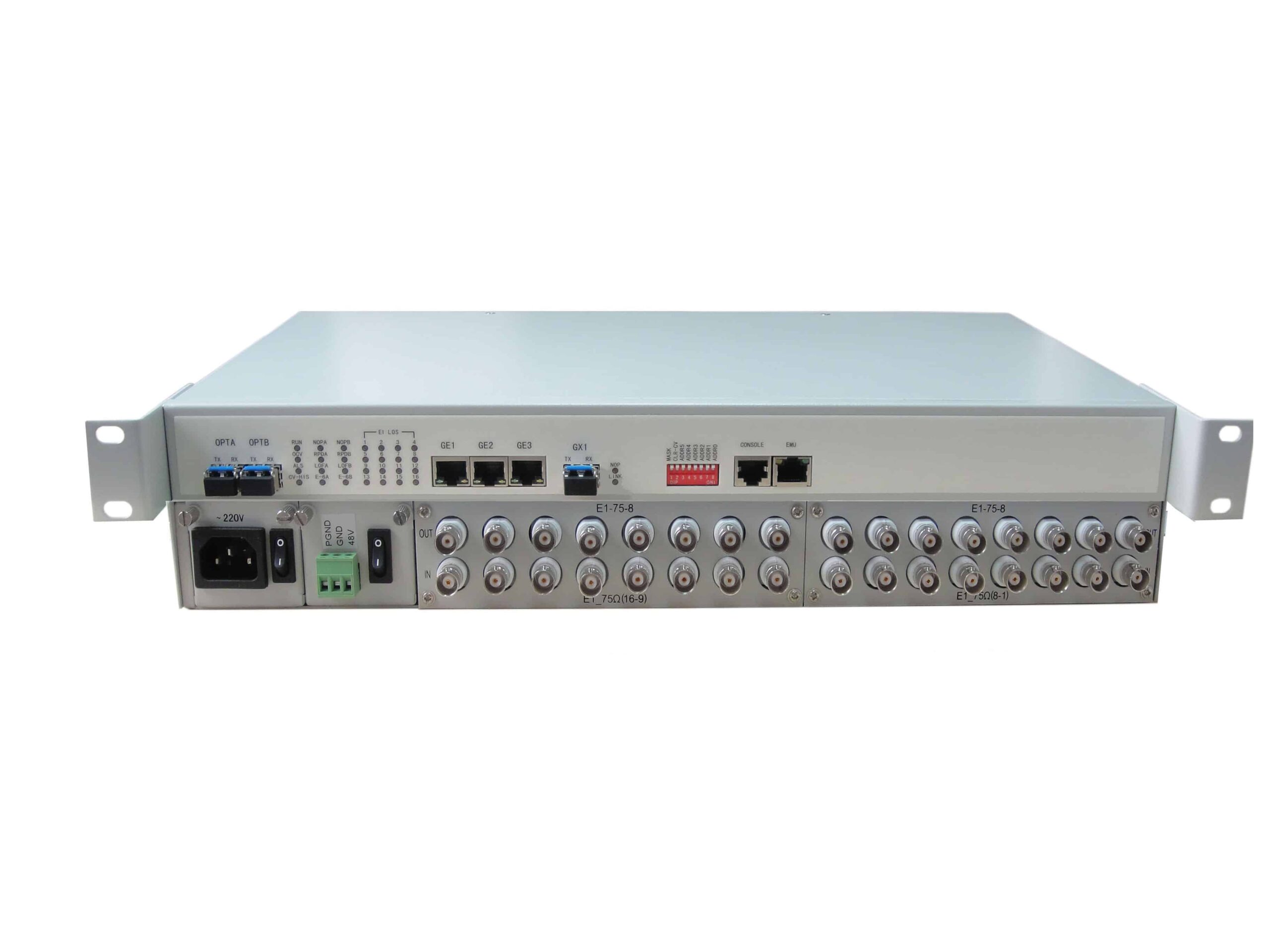

8 – 16 E1s and Gigabit Ethernet to optical fiber multiplexer – Ring, Chain, Point-to-Point and Point-to-Dual applications supported

The AN-FM-240/480-GETH-SNMP is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 8/16 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…

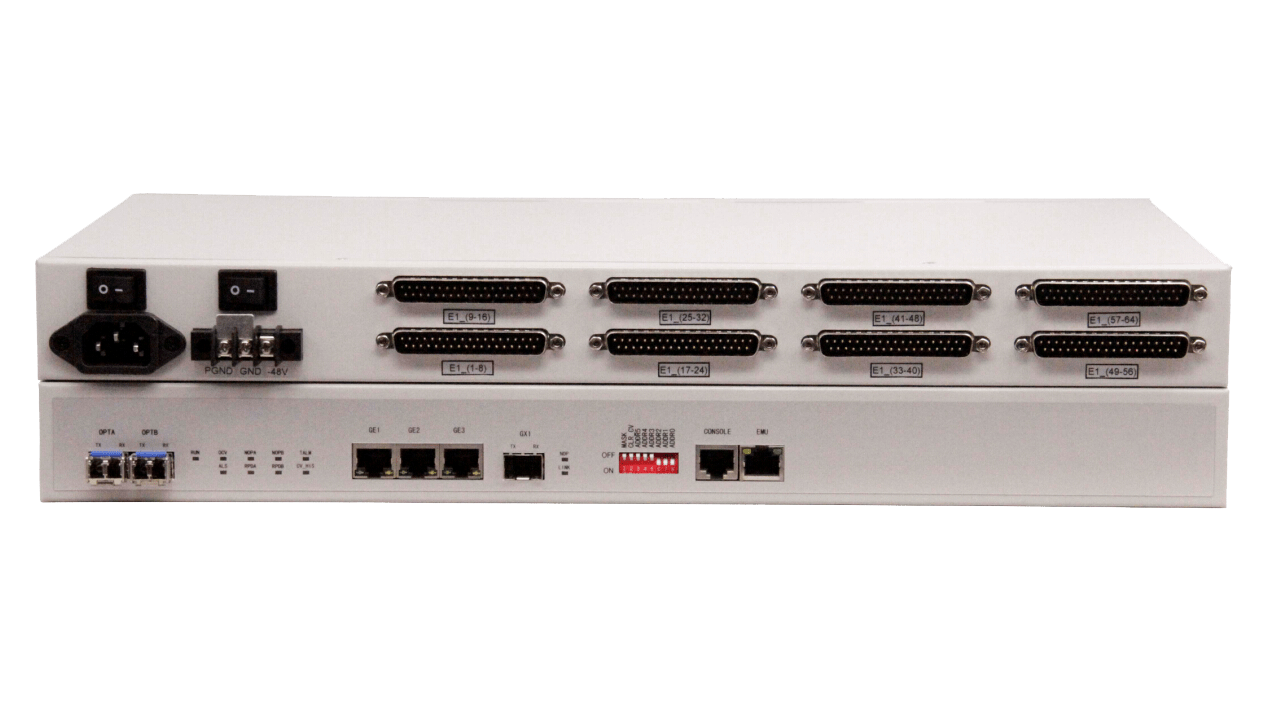

64 E1s and Gigabit Ethernet to optical add/drop fiber multiplexer – Ring, Chain, Point-to-Point and Point-to-Dual applications supported

The AN-FM-64000-GETH-SNMP is optical transmission equipment based on Application Specific Integrated Circuit (ASIC). It integrates the traditional PDH multiplexer and 1000Mbps Ethernet optical transceiver, and can realize the 64 E1s and four 1000Mbps Ethernet data channel transmission over optical line of 1.25Gb/s, the four 1000Mbps Ethernet data channel share 1000M bandwidth. In point-to-point mode, the Ethernet transmission bandwidth can be…
