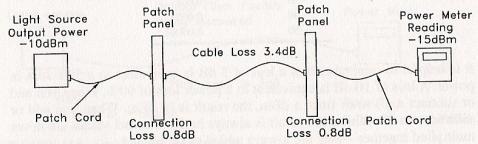

Testing scenario example and what do you need for optical power loss measurements

For most power meter measurements, the following equipment is required:



Optical power meter:



• With proper wavelengths

• With proper connectors



1(2)



• For single-mode or multimode fiber sizes

• Calibrated in dBm, preferably with optional dB scale

• Accuracy to at least ±0.1 dB



Optical light source:



• With stable light source

• With proper wavelengths (same as operating equipment)

• With proper connectors

• With single-mode or multimode fiber sizes

• With proper source, laser or LED source

• With sufficient output light power



Test patch cords:



• At least two, 1 to 5 m in length

• High quality with known loss (tested at factory and results documented)

• With proper connectors

• With same core size as fiber optic facility to be tested Adapter:

• Good quality with ceramic sleeves

• Proper connector fitting

• Two required



Connector/adapter cleaning kit
