• Data Rates to 2.048 Mbps
  • 75 Ohm Dual Coax to 120 Ohm Twisted Pair
  • Bi-Directional Signal Conversion
  • No AC Power or Batteries Needed
  • Male or Female Coax BNC Connectors Available
  • Ultra-Miniature Enclosure
  • state of the art simple balun 75 ohm

APPLICATION

Transmission Line:           CCITT G.703 (unstructured)
Data Rate:                         2.048 Mbps
75 Ohm Connection:         Dual coax BNC connectors, male or female (RG 59 or 2002 coax)
120 Ohm Connection:       Shielded RJ-45 jack (standard) or External Terminal Block
Power Supply:                  none required
Link-to-Data Isolation:    500 volts AC/DC
Operating Temperature:  0° to 50°C (32° to 122°F)
Dimensions:                     2.7″ (6.86 cm) L x 1.7″ (4.32 cm) W x 0.8″ (2.03 cm) D

AN-1C

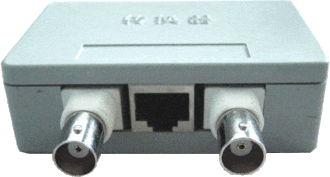

G.703 BALUN 75/120 OHM Female/Male BNC, plastic casing balun 75 ohm 120 ohm

Product Description

75/120 Ohm impedance matching balun 75 ohm allow users to use inexpensive shielded twisted pair cabling in place of expensive coaxial cabling. Especially useful in telecommunication applications for patching at the distribution frame. Units meet CCITT Recommendation G703 and are great for American or European applications.

Single port balun 75 120 ohm supports E1 data rates to 2.048 Mbps, the AN-IC receives 75 ohm signals and converts them to 120 ohm for transmission over a network or reception by a CPE. The signals output by the AN-IC  are scaled to match the pulse shape requirements specified by the CCITT G.703 standard. The AN-IC  can perform 120 ohm to 75 ohm signal conversion as well, giving the device a dual role.
