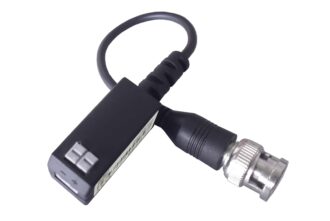

Passive Video Balun (1 channel)
AN-01 CCTV Passive Balun allows a single CCTV video signal to be transmitted via cost-effective unshielded twisted pair (UTP) cable.
- PAL, NTSC, SECOM All-systems compatible
- Eliminates coaxial cable
- Up to 300 meters (1000 feet) via Category 5 unshielded twisted-pair cable
- Open on spot and easy adjustment
- Convenient installation
|
Environment |
Close-Circuit TV (CCTV) equipment for security and surveillance. |
|
Normal Output Level |
1Vp-p/ 75ІИ |
|
Bandwidth |
Video: DC to 6 MHz. |
|
Differential Gain |
2% |
|
Differential Phase |
2 deg |
|
Weighted Signal-noise-ratio |
60dB |
|
Strong ability of anti-interference |
surge protection: 6000V/1.2ІS |
|
Insertion Loss |
Less than 1.5 dB per pair over the frequency range from DC to 6 MHz |
|
Max. Distance Color |
Cat 3 ЈC492 ft (150m); Cat 5 ЈC 738 ft (225m) |
|
Max. Distance Black & White |
Cat 3 ЈC1246 ft (380m); Cat 5 ЈC 1804 ft (550m) |
|
Connectors |
Two (2) screw terminals for twisted pair |
|
BNC Connector |
175mm(6.89ЁБ) Coaxial cable tail included |
|
Temperature |
Operating: -25 to 70 C. Storage:-25 Cto 8 C. Humidity: up to 95% |
|
Enclosure |
ABS fire retardant plastic |
|
Weight |
35 g |
|
Dimensions |
Length 51mm(2.0) * Width 30mm(1.18) * Height 17mm(0.67ЁБ) |
| AN-01A | Single Channel Passive Transceiver, Two screw terminals for UTP cable, Male BNC with extend 17.5cm pigtail |
Description
Usedinpairs,theCCTVBaluneliminatescostlyand bulky coaxial cable, allowing CCTV security and surveillance equipment to be connected using standard structured cabling techniques for neater and more streamlined cabling.
The flexible mini coax cable lead allows the product to fit neatly inside CCTV camera back boxes and dome camera enclosures.
The CCTV Balun also works in conjunction with other CCTV baluns such as the AN-V-AR and AN-V-A series active receivers for a complete cabling solution.
