mini type HDMI fiber optical extender

4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China. This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal..

HDMI 1.4a Support
HDCP Support
DDC CEC HPD Signal Support
Supports up to 300m Transmission Distance at up to 10.3Gbps with OM3
Multimode Fiber
Supports All Modes up to 4Kx2Kx30 Resolution
Standard HDMI Connector
Integrated USB Connector for Power
Double Power Supply (HDMI 5V&USB)
Hot-Pluggable
EMI/RFI Resistant
850nm VCSEL and PIN Photodetector
2-Wire Interface
Typical Power Dissipation 1420 mW
(Source), 1220 mW (Sink)
Operating Case Temperature: 0~70°C

Indicator parameters	min	Typ	Max	Unit	Notes
Data bandwidth		10		Gbps
Power Consumption		1420		mW	Transmitter
Power Consumption		1220		mW	Receiver
Operating Temperature	0		100M:70	°C
			200M:*
			300M:60
Supply Voltage	-0.3	3.8		V	+/-5%
Support resolutions	Up to 4K/2K
Support a refresh rate	Up to 120 Hz
Support deep color	Up to 48-bit
Support 3D	Yes
Support HDCP	Yes
Fiber Wavelength	850nm
BER performance	1.00E-12
Optical output power	Class1				EN60852-1 2007
	Class1				EN 60852-2 A2 2010
Electrical Interface	19 Pins				HDMI A Type Port
	4 Pins				USB Standard A
Storage Temperature	-40 to +100°C
Operating Temperature	0 to +60°C
Humidity	5 to 95 % RH				(no condensation)

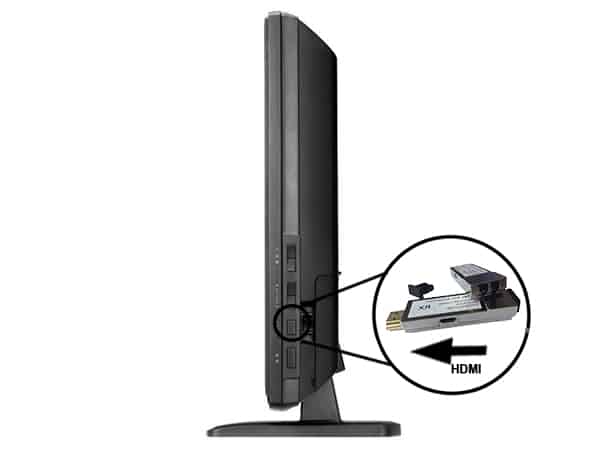

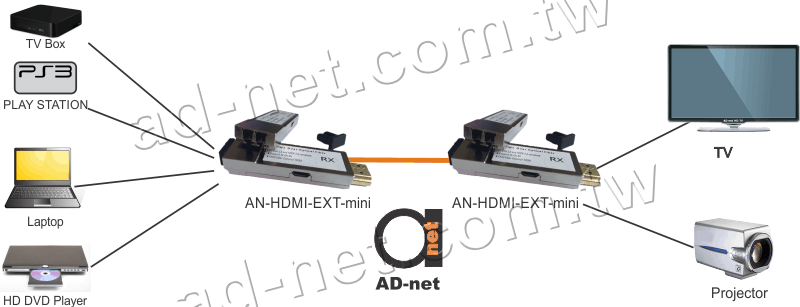

AN-HDMI-EXT-mini_scheme_wm

HDMI

AN-HDMI-EXT-mini

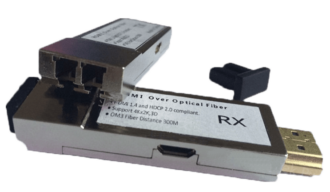

mini type plug type HDMI over fiber optical extender

Description

4K HDMI optical transceiver are enclosed HDMI optical modules designed to support transmission of an uncompressed lossless HDMI 1.4a signal over multimode optical fiber at 850nm, up to distances of 300m, at a resolution of 4Kx2K. 4 K HDMI OPTICAL TRANSCEIVER -T converts an HDMI signal to a single 10Gb/s serial data stream for transmission over two optical fibers. 4 K HDMI OPTICAL TRANSCEIVER -R converts the serial data back to an HDMI signal. The transceivers are RoHS compliant and lead-free per requirements in Europe and China.
This product is ideal for large-screen display, conferencing systems and home entertainment and so on. The device has the ability of anti-interference, to ensure the stability of the signal..
