• 10/100/1000Base-TX UTP to 1000Base-FX fiber media convertion
  • Support IEEE802.3U, IEEE802.3z, 1000Base-TX/FX standards
  • Choice of SC, LC, BiDi or other connectors for multimode and singlemode
  • DIP switch to set different configurations
  • Compact package size

Data Rates:

10/100/1000Mbps (IEEE802.3U IEEE802.3z 1000Base-Tx)

1000Mbps (1000Base-FX) or 100Mbps (100Base-FX)

Input Power Requirements:

Input voltage DC 5-12V

Power consume 3 Watts maximum

Environmental Conditions:

Operating temperature 0℃ to 40℃

Cooling free air convection

Storage temperature -20℃ to  +85℃

Operating Humidity 90% max, non-condensing

Mechanical Specifications:

Case Material Iron

Case Color Black

Net Weight 150g approx. / unit

Dimensions 60 (W) x 20 (H) x 90 (L) (mm) Do not include transceiver length

Warranty 2 years hardware warranty

AN-UM-AS-SMC-mini

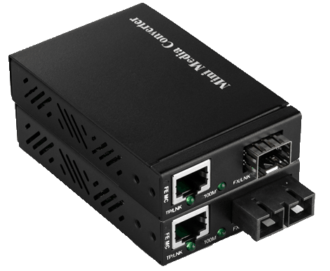

Mini Type 10/100/1000m media converter with one SFP slot ,external power,without SFP module

AN-UMG-AS-MM-1310-mini

Mini Type Gigabit Ethernet 10/100/1000Mbps Media Converter 2 Km (1310 nm) SC (Multimode)

AN-UMG-AS-MM-850-mini

Mini Type Gigabit Ethernet 10/100/1000Mbps Media Converter 550 m (850 nm) SC (Multimode)

AN-UMGSM-AS-XX-mini

Mini Type Gigabit Ethernet 10/100/1000Mbps Media Converter 10 – 120 km SC (Single Mode), where XX, distance in km

AN-UMG130-AS-XX-mini

Mini Type Gigabit Ethernet 10/100/1000Mbps Media Converter 10, 20 or 40 km SC (Single Mode Single Fiber WDM, Tx = 1310 nm), XX distance in km

AN-UMG150-AS-XX-mini

Mini Type Gigabit Ethernet 10/100/1000Mbps Media Converter 10, 20, or 40 km SC (Single Mode Single Fiber WDM, Tx = 1550 nm), XX distance in km

Product Description

The mini 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter is fully compliant with IEEE802.3U, IEEE802.3z 1000Base-TX/FX protocols. The converter can support auto MDI-MDIX function, flow control for full and half duplex operation, etc.

A DIP switch is placed at the bottom of the case. Depend on different configurations, the user can set the different operating mode (Force FX to 100M, pass through mode and LLCF
