  • Supports the HDMI input format: 480i/576i, 1280*720@60Hz,1920*1080@60Hz
  • Automatically HDMI signal is embedded into the SDI audio signal solution

Parameter

Description

Video

input interface

HDMI

Support agreement

HDMI 1.3; HDCP 1.2

Maximum pixel clock

165MHz

Resolution

480i/576i/1280*720/60Hz,1920*1080/60Hz

Output interface

BNC

output signal types

 HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)

SDI Signal amplitude

0.8Vp-p

SDI impedance

75Ω

SDI Coupling type

AC coupling

SDI Signal jitter (Typical values)

 HD-SDI≤0.2UI 3G-SDI≤0.4 UI

Other

Maximum input cable length

3G-SDI 120m

note:The transmission distance for different specifications of the cable, test results will be different

Power

Adapter: DC 5V

Power dissipation

MAX 2.5W

Temperature

Operating:-5℃ ~ +70℃

Humidity

Operating:5% ~ 90%

Size

81*43*23mm

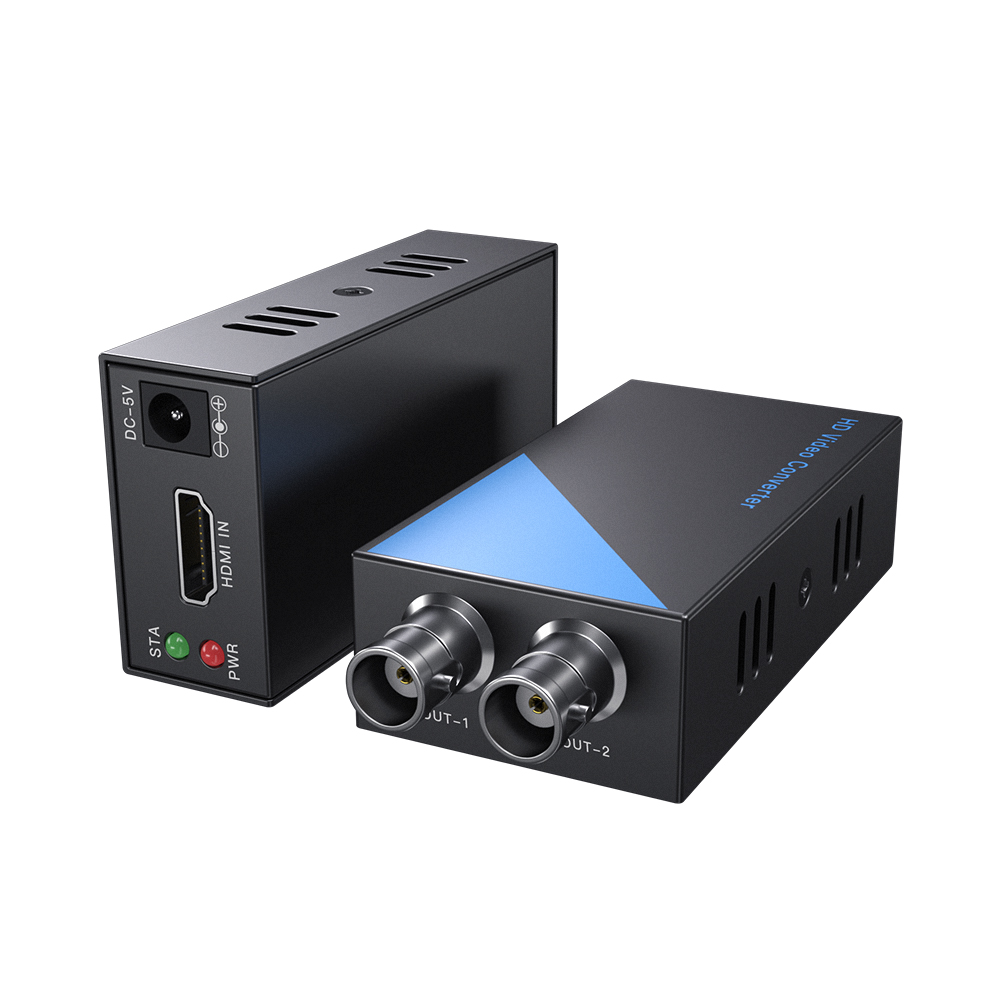

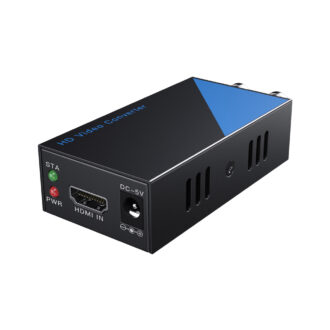

Port name

Description

HDMI IN

HDMI signal input

SDI OUT-1/2

SDI signal output

DC 5V

Power adapter input

LED indicator

Description

STA

Video signal connection indicator

PWR

System power indicator

Quick installation video shows that units are plug and play and really easy to install.

In this setup we use HDMI to SDI converters set to convert SDI signal coming from our SDI micro type USB powered transmitters to HDMI monitors.

AN-HDMI-SDI

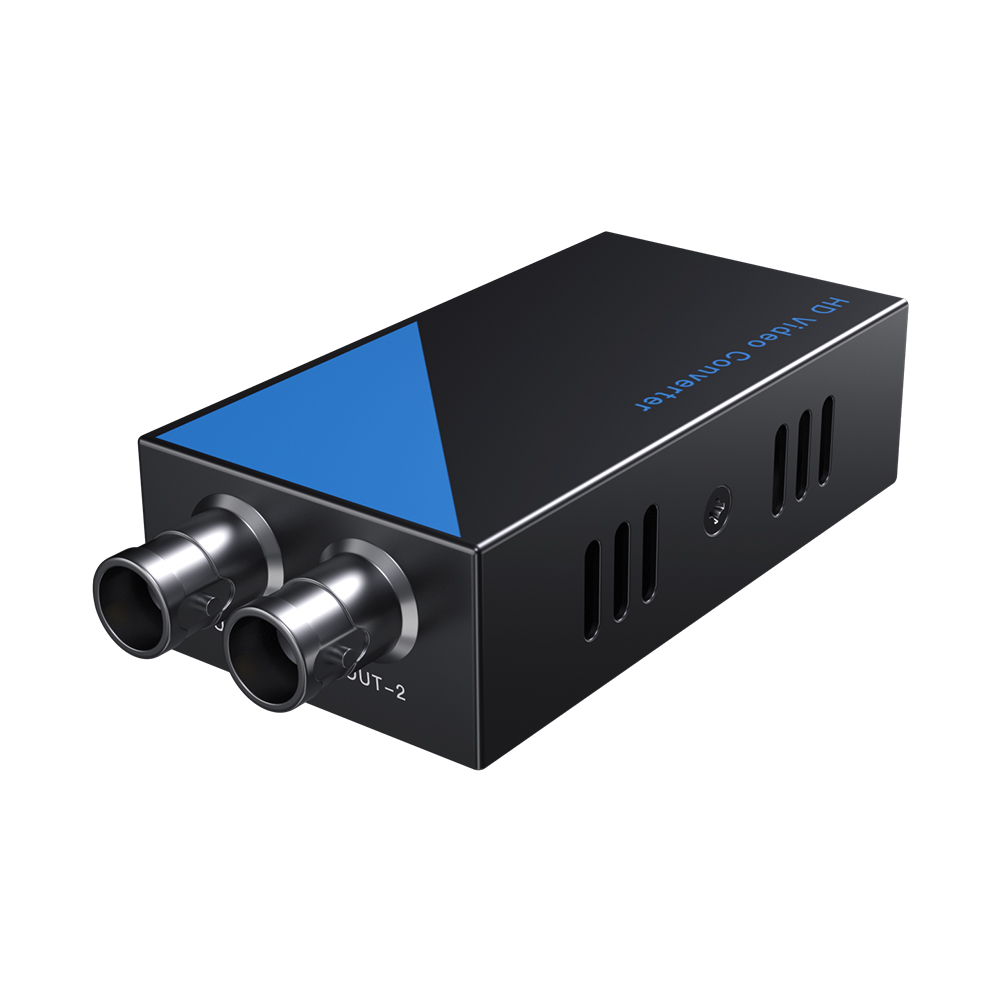

HDMI to SDI converter with 1 HDMI input, 2 SDI output.

Description

The AD-net AN-HDMI-SDI converter supports the conversion of high-definition HDMI signals to broadcast-grade SDI signal output and can convert standard high-definition or standard-definition HDMI digital signals with audio to broadcast-quality high-definition or standard-definition signal SDI for output. It is widely used in the broadcast room and non-editing production fields of all levels of TV stations using SDI signals and is also widely used in various optical transmission fields using HDMI interfaces. Such as TV stations, places that have restrictions on noise, transmission distance and safety, data center control, information distribution, conference room demonstrations, and teaching environments and company training places.
