• Transmits HDMI video signals up to 100m over a single CAT6 cable;
  • Support video resolution up to 1920*[email protected] and 4K*2K;
  • Support HDBaseT technology;
  • Support KVM, keyboard and mouse signal transmission;
  • Support RS232 signal bidirectional transmission, baud rate self-adaptive;
  • Support IR signal bidirectional transmission remote control function.
  • Compliance with HDMI 1.4 and HDCP 1.2 standard;
  • High compatibility, can auto-match source and display device;
  • Built-in automatic adjustment system, make the image smooth, clear and stable;
  • Built-in ESD protection system;
  • Simple to install, plug and play;

Parameter

Description

Video

Standards

HDMI 1.4; HDCP 1.2

Maximum pixel clock

165MHz

Maximum data rate

10.2Gbps

Resolution

[email protected]、4K*2K

Connector

HDMI-A

Impedance

100Ω

RS232

Interface

Industrial terminal

Signal direction

Bidirectional

Baud rate

Self-adaptive, Max:115200bps

Data bits

8

KVM

Interface

PC: MINI-USB

Keyboard and mouse: USB-A

Ethernet

Interface

RJ45

Transmission distance

1080P: CAT6—100m

4K*2K: CAT6—70m

Other

Power supply

The power adapter: DC 12V/1A

Power dissipation

MAX 6W

Temperature

Operating: -5℃ ~ +70℃

Humidity

Operating: 5% ~ 90%

Dimension

105*76*27mm

The warranty

1 year free warranty

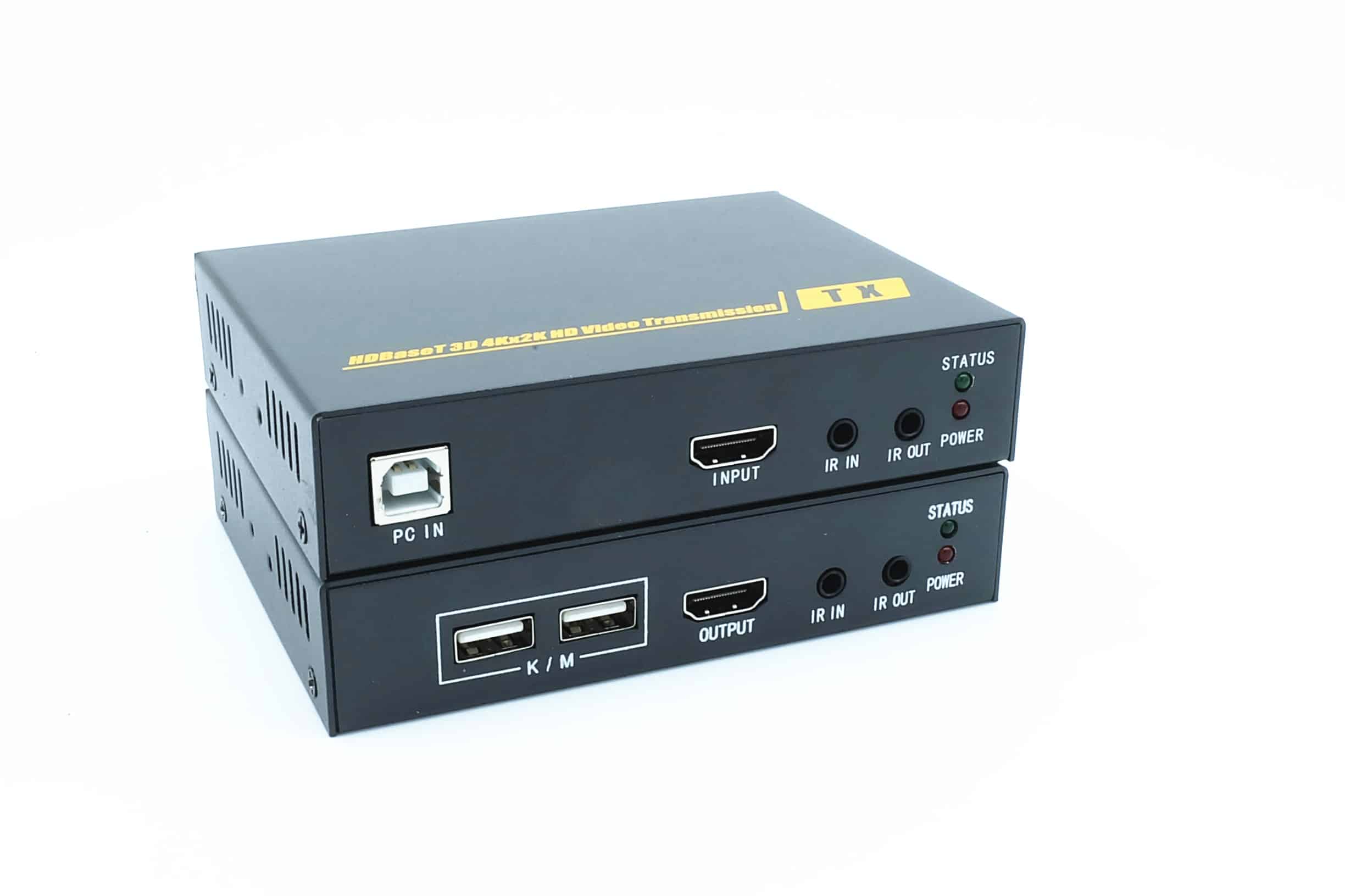

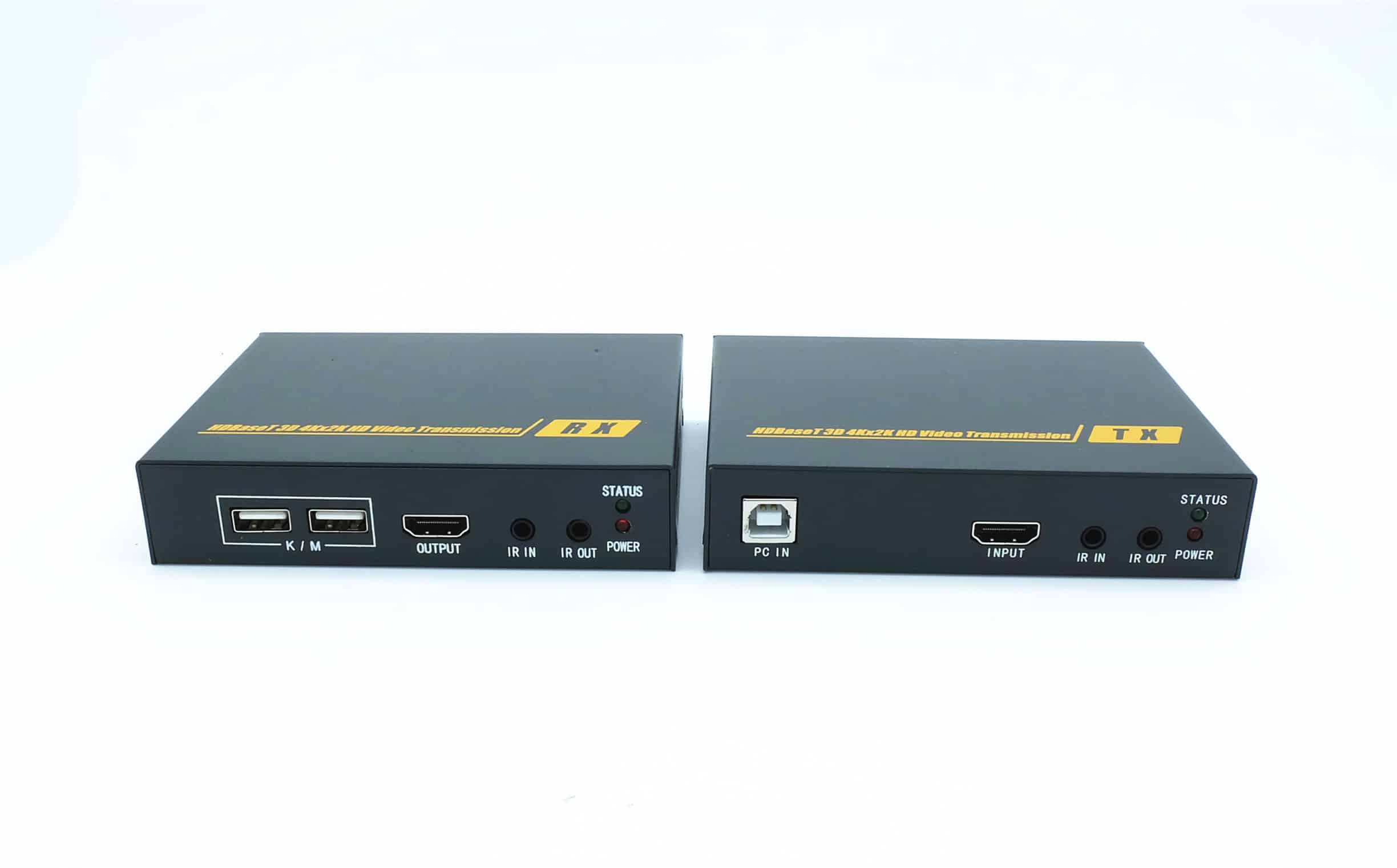

HDMI KVM extender over CAT6 cable with IR & HDBaseT support

Transmitter:

HDMI KVM extender over CAT6 cable with IR & HDBaseT support

Receiver:

HDMI KVM extender over CAT6 cable with IR & HDBaseT support

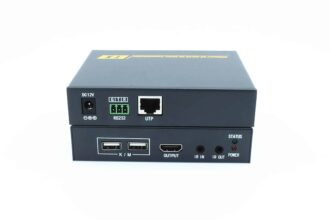

Port name

Description

HDMI IN/OUT

HDMI signal input/output

RJ45

Ethernet interface

RS232

Serial port( G: Ground, T: transmit, R: receive )

IR

0-60KHZ

K/M TO PC

Connect to PC

K/M

Connect to keyboard and mouse

LED indicator

Description

LINK

Video signal connection indicator

POWER

System power indicator



  1. Connect the provided DC/12V power supplies to the power socket of the transmitter and the receiver,
  2. Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
  3. Connect the HDMI output port of receiver to the display device with HDMI cable,
  4. Connect the transmitter RJ45 port to the receiver RJ45 port using a single CAT6 cable.

It takes less than 2 minutes to get it up and working, see installation steps in video above.
AN-KVM-HDMI-UTP-EXT01

HDMI KVM extender over CAT6 cable with IR & HDBaseT support

Product Description

The HDMI KVM extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
