• It can support star and chain networking and link-fault-pass through function;
  • E1 port accords with ITU-T G.703, G.704 and G.823, and the resistance of 75Ω unbalanced and 120 Ω balanced can be selected.
  • The serial port of node equipment can be selected from three working modes:  RS232/RS422/RS485, and can adapt for a rate lower than 19.2kbps. Ethernet port can support 10M/100M, full-duplex/semi-duplex and adaptive modes, and accords with IEEE802.3 serial protocol;
  • The node equipment can transmit E1 time-slot of serial port data or Ethernet data by DIP switch setting;
  • The Ethernet port for IP upload of central convergence server accords with IEEE802.3 serial protocol;
  • When central convergence server collects serial port data, the serial port data can adopt three methods to communicate with higher equipment: virtual serial port software, the controls developed by our company, Socket communication;
  • When central convergence server collects serial port data, it can support three working modes: TCP server, TCP client and UPD. The working port, target IP and port are configurable;
  • Central convergence server supports two network management modes: server configuration application provided by our company and web Server. It can also support remote configuration and remote online upgrade.

Sub & Main E1 port interface parameter:

  • Channel capacity: 1 Channels
  • interface rate: unframing/framing: N*64Kbps,N=0~31;
  • Bit Rate: 2.048 Mb/s ±50 ppm
  • Line Code: HDB3
  • Line Impedance: 120 Ohm / 75 Ohm
  • Connector: RJ-45 or BNC
  • Pulse Shape: ITU-T G.703.
  • Jitter Performance: ITU-T G.823
  • clock: inter-clock, line-clock
  • Output jitter<0.05UI

Ethernet interface:

  • Interface Rate: 10/100Mbps
  • Duplex: half and full duplex self-adapt.
  • Interface character: match IEEE802.3, IEEE802.1 Q(VLAN)
  • Connector: RJ45, support auto-mdix
  • MAC address capability: 4096

Power:

  • DC: -48V (-36 to -72V);
  • AC: 90 to 260 VAC ; 47 ~ 63Hz
  • Power Interface: DC power terminal / AC socket
  • Power Consumption: <5 W

Working environment:

  • Operating temperature: 0 to 50 °C
  • Storage temperature: -20; to +70 °C
  • Relative humidity: 5% to 90% (25 °C no condense)

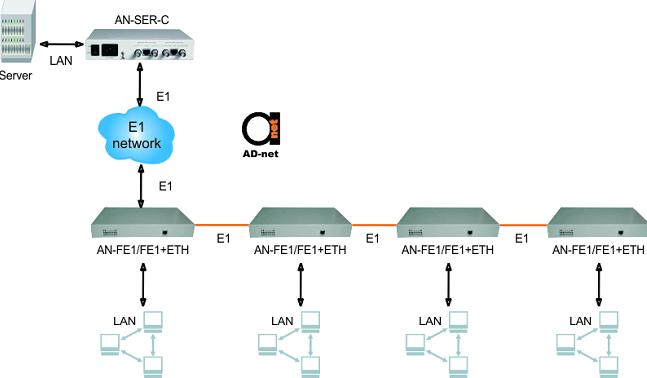

Daisy chain with a central convergence server – each node uses 1 time slot.

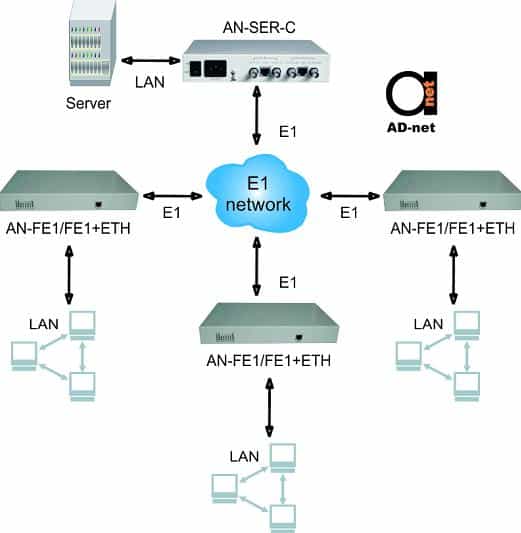

Star Configuration central convergence server – each node uses 1 time slot.

AN-FE1-FE1+2COM

Serial port Time Slot Extraction and Insertion equipment, can transmit 1channel of N*64 K E1 to 1 channel of sub-E1 and 2 channels of RS232/RS485/RS422 serial ports.

AN-FE1-FE1+8COM

Serial port Time Slot Extraction and Insertion equipment, can transmit 1channel of N*64 K E1 to 1 channel of sub-E1 and 8 channels of RS232/RS485/RS422 serial ports.

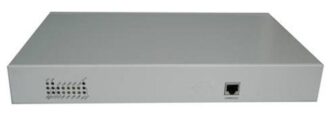

AN-FE1-FE1+ETH

Ethernet Time Slot Extraction and Insertion equipment can transmit 1channel of N*64 K E1 to 1 channel of sub-E1 and 1 channel of Ethernet port.

AN-SER-C/S

E1 serial port convergence server can collect remote multiple nodes of serial port Time Slot Extraction and Insertion equipment by E1 and can collect 31 nodes of 19.2Kbps serial ports to 4 channels of Ethernet ports for transmission maximally.

AN-SER-C/E

E1 Ethernet convergence server can collect remote multiple nodes of Ethernet Time Slot Extraction and Insertion equipment by E1 and can collect 31 nodes of 64Kbps Ethernet ports to 4 channels of Ethernet ports for transmission at most.

Product Description

Time Slot Extraction and Insertion system consists of node equipment and central convergence server, and node equipment can extract partial time-slots from E1 channel to implement multiplexing transmission of 1/2/4/8 channel(s) of RS232/RS422/RS485 serial port data or Ethernet data, and the node equipment can construct chain network by cascade connection, and the central server can collect serial port data or Ethernet data of E1 time-slots, and upload it via IP mode. It can be extensively used in the power environment monitoring and control, power monitoring and control, mobile basic station monitoring and control, Signaling Number 7 monitoring and control, mobile charging network and other similar data gathering system and remote interconnected system.
