1U OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high cost performance products.

AN-OLT-8C provides 8GE(copper)and 8SFP slots Combo interface for uplink, and 8 EPON ports for downstream. It can support 512 ONU under 1:64 splitter ratio



Item AN-OLT-4C AN-OLT-8C
Chassis Rack 1U 19 inch standard box 1U 19 inch standard box
Slots NA NA
Uplink Port QTY 8 16
Copper 10/100/1000M auto-negotiable,RJ45:8pcs 10/100/1000M auto-negotiable,RJ45:8pcs
SFP 4 SFP slots(Combo) 8SFP slots(Combo)
PON Port QTY 4 8
Physical Interface SFP Slots SFP Slots
Connector Type 1000BASE-PX20+ 1000BASE-PX20+
Max splitting ratio 1:64 1:64
Management Ports

1*100BASE-TX out band port

1CONSOLE port

PON Port Specification



Transmission Distance 20KM
PON port speed Symmetrical 1.25Gbps
Wavelength 1490nm TX,1310nm RX
Connector SC/PC
Fiber Type 9/125μm SMF
TX Power +2~+7dBm
Rx Sensitivity -27dBm
Saturation Optical Power -6dBm
Management Mode SNMP, Telnet, CLI management mode.
Management Function

Fan Group Detecting

Port Status monitoring and configuration management;

Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;

EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;

Online ONU configuration and management

User management

Alarm management

Layer-two Switch

Support port VLan and protocol Vlan

Support Vlan tag/Untag ,vlan transparent transmission;

Support 4096 VLAN

Support 802.3dd trunk

RSTP

QOS based on port ,VID,TOS and MAC address

IGMP Snooping

802.x flow control

Port stability statistic and monitoring

EPON Function

Support port-based rate limitation and bandwidth control;

In compliant with IEEE802.3ah Standard

Up to 20KM transmission Distance

Support data encryption, group broadcasting, port Vlan separation , RSTP, etc.

Support Dynamic Bandwidth Allocation (DBA)

Support ONU auto-discovery/Link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

Support power-off alarm function ,easy for link problem detection

Support broadcasting storm resistance function

Support port isolation between different ports

Support ACL and SNMP to configure data packet filter flexibly

Specialized design for system breakdown prevention to maintain stable system

Support dynamic distance calculation on EMS online

Support RSTP,IGMP Proxy

Dimension 440*280*44(mm*mm*mm)
Weight 4.2kg 4.5kg
Power Supply 220VAC AC: 90V~240V,47/63Hz
-48DC DC:-36V~-72V
Power Consumption 30W 45W
Operating Environment Working Temperature 0~50℃
Storage Temperature -40~85℃
Relative Humidity 5~90%(non-condensing)

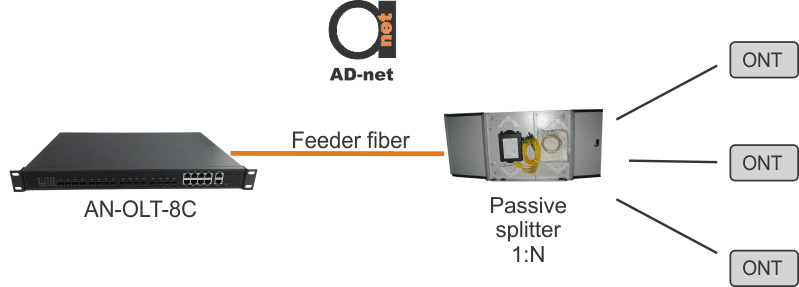

Application scenarios for AN-OLT-8C:



AN-OLT-8C_scheme

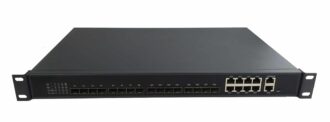

AN-OLT-8C

1U EPON OLT with 8 PON slots and 8 SFP GE uplink slots,220V(110V) AC power supply

AN-UM-SFP-SM

Optional; when the uplink port is optical port , it would be taken into consideration.
The default configuration is 20KM dual fiber. Copper SFP's can be used if copper port is needed

AN-UM-SFP-T

The default configuration is 4pcs;at least 1pc ;4 pcs at most.

Product Description

1U OLT series products is 1U high 19 inch rack mount product. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to deploy in an compact room environment.

The OLT can use for “Triple-Play”, CPN, IP Camera, Enterprise LAN and IOT applications. It is a high cost performance products.

AN-OLT-8C provides 8GE(copper)and 8SFP slots Combo interface for uplink, and 8 EPON ports for downstream. It can support 512 ONU under 1:64 splitter ratio
