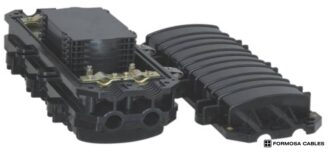

AN-OCJE-(04) 6 Type – 4 way in | 4 way out outdoor fiber optic joint closure, up to 216 cores capacity
AN-OCJE-(04)-6 Type - 4 way in | 4 way out outdoor fiber optic joint closure, with up 216 cores capacity, starting from 12 and adjustable per x12. Plastic body, metal shelf ,fiber splice tray, airtight materials, heat shrinkable protecting tube,hang tools etc in set.
- Advanced internal structure design
- Optic Cable Joint closure for up to 216 fibers.
- The casing is made of high quality ABS, compact and lightweight
- Lightning strike, erosion, aging resistance.
- Logical design, waterproof structure, easy installation, convenient maintenance;
- Easy to re-enter, it never requires re-entry kits
- Technician protection system for eyes;
- Elastic seal fitting , easy for future capacity upgrades and re-enters
- Insert plates and fixing bolts are used for fixation of closure
- Outside dimension (LxWxH): 435X180X170
- Max capacity is up to 216 cores (more on request)
- Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc
| AN-OCJE-(04)-6/12 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 12 cores capacity |
|
| AN-OCJE-(04)-6/24 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 24 cores capacity |
|
| AN-OCJE-(04)-6/36 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 36 cores capacity |
|
| AN-OCJE-(04)-6/48 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 48 cores capacity |
|
| AN-OCJE-(04)-6/60 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 60 cores capacity |
|
| AN-OCJE-(04)-6/72 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 72 cores capacity |
|
| AN-OCJE-(04)-6/84 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 84 cores capacity |
|
| AN-OCJE-(04)-6/96 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 96 cores capacity |
|
| AN-OCJE-(04)-6/108 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 108 cores capacity |
|
| AN-OCJE-(04)-6/120 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 120 cores capacity |
|
| —————- | —————————- and so on n x 12 cores till |
|
| AN-OCJE-(04)-6/216 | Plastic body,metal shelf,fiber splice tray,airtight materials,heat shrinkable protecting tube,hang tools etc. 216 cores capacity |
Description
AN-OCJE-(04)-6 Type is a superb, Taiwan quality lightning strike, erosion, aging resistance Logical design, waterproof structure, easy installation, convenient maintenance Optic Cable Joint closure for up to 216 fibers.
Selectable capacities as ordering options n x 12 cores, up to 216 cores in total. Extra capacity unit!
Used worldwide in cable desiging of FTTH/FTTB networks, AD-net cable splicing solutions proven to be one of most effective and good quality in market.
