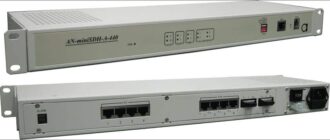

AN-miniSDH-A is a member of AD-net SDH/MSPP product family. This family of products is aimed at the access network establishment, providing TDM and Ethernet services to meet the needs of today’s network evolution. Other members in the SDH/MSPP include AN-MSPP, AN-miniSDH-V, AN-miniSDH, AN-miniSDH-C, AN-SDH63, etc.

  • ADM, suitable for ring and linear topologies
  • Supports MSP and SNCP protection switchinG
  • Flexible options for the STM-1 fiber optic interface, including single fiber duplex, as well as different power and wavelength choices.
  • Multi-Service, including E1, FE, V.35
  • Standard based GFP/VC-12 VCAT EoS
  • Built-in BERT and loop-back capabilities
  • Framed and unframed V.35
  • Remote AC power failure alarm
  • Standard 19 inch 1RU box, compact, lightweight, low power consumption
  • Dual mode power supply, -48V DC or 100~240V AC field selectable
  • RoHS compliant
  STM-1 Fiber Port
  Bit rate: 155520kbit/s ± 4.6ppm
  Line code: Scrambled NRZ
  Wavelength: Default: 1310nm Option /5: 1550nm
  Connector: Default: SC Option /F: FC
  Fiber Spec. S-1.1, L-1.1, L-1.2

Single fiber bi-directional WDM interface can be optionally supported
  E1 Port
  Bit rate: 2.048 Mbps ± 50 ppm
  Line code: HDB3
  Impedance: Default: 75W         Option /T: 120W
  Frame Structure: Non-framed
  Number of ports: or 4 or 8 depending on model
  V.35 Port
  Bit rate: Nx64kbps ± 50 ppm, N£31
  Frame Structure: G.704 or unframed
  Interface mode: DCE or DTE
  Number of ports: 1
  Ethernet Port
  Interface mode:

10Base-T/100Base-T, Half/Full duplex, auto-negotiation,

HP auto-MDIX


  Trunk port: NxVC-12  N£63, GFP
  Number of ports: 4
  Management Port
  Ethernet: RJ45, 10Base-T,  MDI port
  Others: DCC, E1(VC-12)
  Timing
  Internal, STM-1 Line, E1 tributary line
Mechanical/Electrical
Dimension: 44mm x 138mm x 440mm (H/D/W)
Net weight: 2kg
Power (AC): 100 ~ 240 V, 50/60Hz
Power (DC): -48 V (-58V ~ -38V)
Consumption: ≤ 10W
Working temp: 0 ~ 50°C
Humidity: 0-95%RH (non-condensing)
Ethernet socket: RJ-45
V.35 socket: DB25
E1 socket:

RJ48

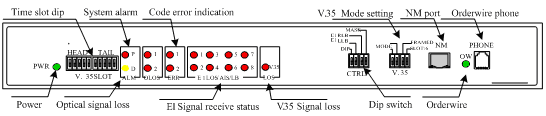

Picture above: Functional buttons and information available of front panel of AN-miniSDH-A

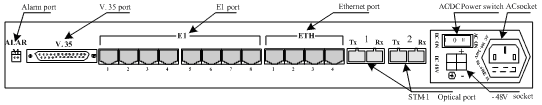

Picture above: Back panel schematic drawing with functional interfaces of AN-miniSDH-A

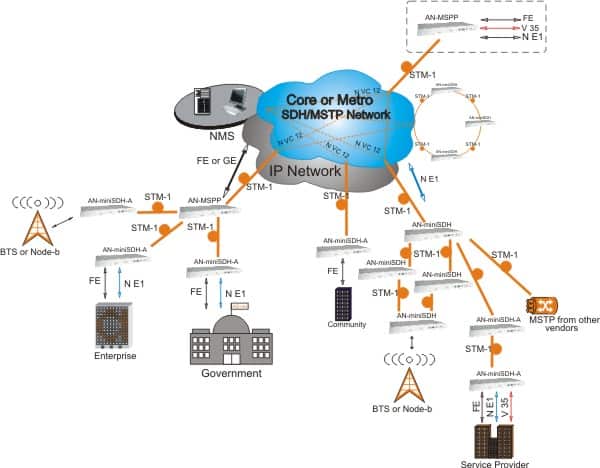

Application scenarios:

AN-miniSDH-A/841

2 x STM-1 optical ports + 8E1 ports + 4 10/100 Ethernet ports + 1 V.35 port ADM / miniSDH multiplexer
AN-miniSDH-A/840

2 x STM-1 optical ports + 8E1 ports + 4 10/100 Ethernet ports + 0 V.35 port ADM / miniSDH multiplexer
AN-miniSDH-A/441

2 x STM-1 optical ports + 4E1 ports + 4 10/100 Ethernet ports + 1 V.35 port ADM / miniSDH multiplexer
AN-miniSDH-A/440

2 x STM-1 optical ports + 4E1 ports + 4 10/100 Ethernet ports + 0 V.35 port ADM / miniSDH multiplexer
AN-miniSDH-A/400

2 x STM-1 optical ports + 4E1 ports + 0 10/100 Ethernet ports + 0 V.35 port ADM / miniSDH multiplexer
