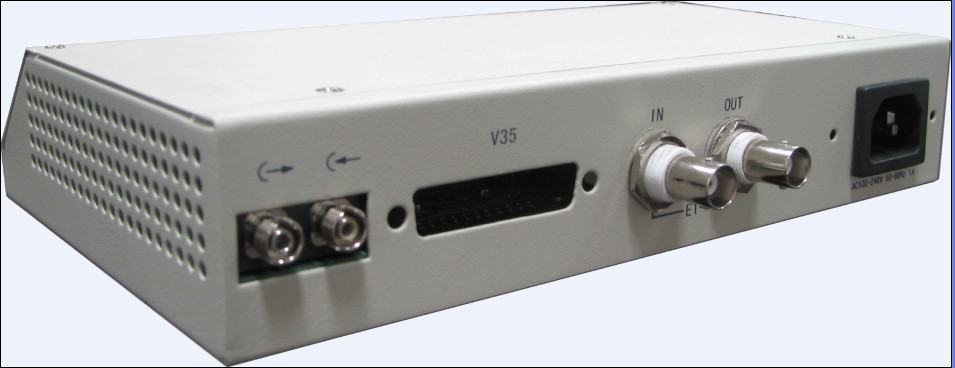

AN-microSDH-E1

One of the smallest in size on earth SDH device from AN-microSDH series. AN-microSDH-E1 is micro sized SDH unit with 1 E1 unit over STM-1 interface.

Half 19”, 1 U box with standard STM-1 optical interfaces
1 E1 interface with standard SDH mapping.
E1 port complies with ITU-T G .703, with error monitor and loop back test functions
Various alarm indicators.
Inter-work with any SDH/MSPP products of various vendors with standard STM-1 optical interfaces.
Support agent network management by AN-MSPP, AN-miniSDH saving IP address.
High integration, compact design, can be hanged on the wall.
SDH/MSPP units at PDH price.

Items		Description
Models	AN-microSDH-E1-V35	1 STM-1 optical interface, 1 E1, 1 V.35
	AN-microSDH-E1	1 STM-1 optical interface, 1 E1
	AN-microSDH-V35	1 STM-1 optical interface, 1 V.35
STM-1 optical interface	Connector	SC/PC
	Spec.	S-1.1, L-1.1, L-1.2
	Spec.	Single fiber bi-directional WDM interface can be optionally supported
Service interface	E1 Spec.	Comply with G.703, 2.048Mbps, HDB3 75Ω unframed
Service interface	V.35 port	Comply with ITU-T V.35/V.36 DCE or DTE, framed or unframed 2.048Mbit/s, n x 64kbps, where n = 1 …32
Physical Dimension H×D×W		44 mm ´136 mm ´ 220mm
Power	Supply	220V (110V) AC or -48V DC
Power	Consumption	≤8 w
Environment	Temperature	0°C 45°C
Environment	Humidity	0-90%RH non-condensing

AN-microSDH-E1/AC	1 STM-1 optical interface, 1 E1, AC power
AN-microSDH-E1/DC	1 STM-1 optical interface, 1 E1, DC power

Description

One of the smallest in size on earth SDH device from AN-microSDH series. AN-microSDH-E1-V35 is micro sized SDH unit with 1 E1 unit over STM-1 interface. Working together with aggregation devices such as AN-miniSDH or AN-MSPP, they can support point to multi-point topology. They also support point to point network or working together with any SDH devices with standard STM-1 interfaces.

They also support point to point network or working together with any SDH devices with standard STM-1 interfaces.
