• Advanced Security
  • Comprehensive ACL access control policies
  • User MAC address based ACL list definition
  • IP protocol (TCP/UDP) based ACL
  • TCP port number based ACL
  • UDP port number based and time based ACL
  • Can identify legal service terminals with bounded VLAN-IP-MAC
  • Supports user access control protocol 802.1x
  • Provides more efficient user port control than the traditional method
  • Port MAC address limitation function can control the host number accessing the specified port;
  • Supports PVLAN
  • Offers strict port segregation within 802.1Q VLAN
  • Patented CPU protection technique checks and filters the data sent to the CPU to avoid malicous attacks
  • Several authentications for protocols such as RIP, OSPF, etc



  • Flexible QOS
  • Supports intelligent QoS to meet the high quality demand for voice, video and other real-time multimedia services
  • Priority based on IEEE802.1P tagged information and quintuple flow classification service
  •  Supports flow-based multilayer CoS and ToS to meet the demand of real-time multimedia service such as ideo conference; Self-defined multilayer flow classification rules, with 1024 flow rules supported in one device
  • 8 priority queues supported per port, with congestion prevention and flow-shaping



  • Comprehensive routing protocol support
  • Supports a rich set of routing technology which covers almost all the current existing routing technologies
  • Supports unicast routing protocols: RIP V1, RIP V2, OSPF, BGP, static routing
  • Supports multicast routing protocols: IGMP, PIM-SM
  • Supports redundancy backup protocol: VRRP
  • Convenient Maintenance and Control
  • Supports NM methods such as SNMP, CLI, RMON, TELNET, WEB; Supports BOOTP,TFTP and FTP
Model AN-L3-4012TF
System
Port Number 12 ports Gigabit TX interfaces, 4 Port Gigabit SFP slots
Switching Capacity 24G
Packet Forward Capability 17.8Mpps
Power Consumption <30W
Basic Performance
MAC Address Table 16K
Routing Table Entries 4K
Buffer Capacity Shared 32M
Forwarding Mode Store-and-forward
Network and Flow Control
PVLAN Yes
VLAN 802.1Q 4k
QoS 8 priority queues per port; flow shaping and rich scheduling methods
Queue Dispatching Methods WRR, SP, WRR+SP
Port Convergence FE, GE port convergence; maximum 32 groups with 8 ports per group
Routing Protocols
Unicast Static Routing, RIP V1/V2, OSPF V2,
Multicast IGMP, PIM-SM,
Policy Routing Yes
QoS routing Yes
Num of Routing Interfaces 512
Security Feature
802.1X Yes
PORTAL Yes
STP Yes
ACL 1K
MAC address limitation Yes
Broadcast Strom Suppression Yes
CPU Protection Yes
Management Features
SNMP SNMP V1 /V2c/V3
RMON 1, 2, 3, 9
HTTP Yes
CLI Yes
Dimension (L*W *H) 443mm×360mm×44.5mm
Working Environment 0~40℃ 10~90% non-condensing
Weight <6.5Kg

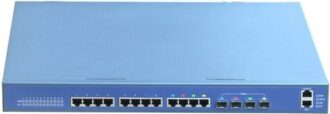

AN-L3-4012TF

12 Port 10/100/1000 Base-T + 4 Port Gigabit SFP Layer 3 Gigabit Switch

Product Description

Supports comprehensive ACL access control policies, including: user MAC address based ACL,IP protocol TCP/UDP) based ACL, TCP port number based ACL, UDP port number based and time based ACL.

Can identify legal service terminals with bounded VLAN-IP-MAC; supports user access control protocol 802.1x, provides more efficient user port control than the traditional method; The port MAC address limitation function can control the host number accessing the specified port
