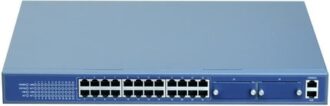

AN-L3-3526A 24 X2G Layer 3 Routing Switch
AN-L3-3526A is a secure and intelligent Layer 3 switch featuring wire-speed switching. It adopts a box-type design, and it's a layer 2/3 wire speed enterprise central routing switch with 10/100M aggregation for Carrier data centers, server farms, wiring closets and metropolitan area networks
- All ports support wire speed forwarding;
- 15.2 Gbps switching capacity;
- 6.6 Mpps Layer 2/3 wire-speed forwarding.
- Support for flexible queue scheduling algorithms, i.e. Strict Priority (SP), Weighted Round Robin (WRR), and SP+WRR; 8 priority queues.
- Support for intelligent Layer 2-7 flow classification;
- Support for IEEE 802.1p, TOS,and DiffServ Code Point.
- Compliance with IEEE 802.1x and Web portal, the AN-L3-3526A can identify users who attempt to access the network;
- it can also prevent unauthorized access to the network by binding any combination of MAC,IP,VLAN and PORT;
- Intelligent anti-virus policies and optimizing routing policy can guard the network to against the attack by Code Red and Worm Blaster,with which greatly improve the security of your network.
- The AN-L3-3526A supports Simple Network Management Protocol (SNMP),also,it supports Command Line Interface (CLI),Web management, and TELNET, with which greatly simplify its network management.
|
Feature Description |
AN-L3-3526A |
||
|
System |
|||
|
Ports |
24 ports 10/100Base-T |
||
|
Slots |
2 Gigabit SFP/TX slots optional |
||
|
Capacity |
Backplane Bandwidth |
15G |
|
|
Switching Capacity |
8.8Mpps |
||
|
Packet Forwarding Rate |
6.6 Mpps |
||
|
MAC Table |
8K |
||
|
VLAN Table |
255 |
||
|
Packet Buffer |
sharing 32MB |
||
|
Port-based ARL Limit |
Port Learning Forbidden When The Limit Is Exceeded |
Yes |
|
|
ARP |
4K |
||
|
VLAN |
Port-based VLAN |
255 |
|
|
IEEE 802.1q VLAN |
255 |
||
|
SuperVLAN & Sub-VLAN |
Yes |
||
|
Port Aggregation |
Trunk |
6 trunks, 8 ports in each trunk |
|
|
Mirror |
Yes |
||
|
IGMP Snooping |
Yes |
||
|
IP/MAC/Port Binding |
Arbitrary Binding of IP/MAC/Port |
Yes |
|
|
DHCP |
Relay |
Yes |
|
|
Server |
Yes |
||
|
Rate Limiting |
Port- or VLAN-based Rate Limiting |
Yes |
|
|
ACL |
Up to 1K rules |
||
|
IEEE 802.1p |
Yes |
||
|
Queue Management |
WRR |
Yes |
|
|
SP |
Yes |
||
|
Hybrid (WRR+SP) |
Yes |
||
|
Routing Interface |
VLAN Configurable with IP Address |
32 |
|
|
DiffServ |
Yes |
||
|
Power Consumption |
<30W |
||
|
Routing |
|||
|
Static Route |
Yes |
||
|
RIPv1/v2 |
Yes |
||
|
OSPFv2 |
Yes |
||
|
Policy-based Routing |
Yes |
||
|
PIM-SM |
Yes |
||
|
VRRP |
Yes |
||
|
Management |
|||
|
Trace Route |
Yes |
||
|
SNMP |
Yes |
||
|
SNMP Trap |
Yes |
||
|
RMON |
RMON-MIB |
Yes |
|
|
NMS |
IP or IP Subnet-based Telnet Access Control |
Yes |
|
|
IP or IP Subnet-based SNMP Access Control |
Yes |
||
|
Hardware |
|||
|
Power Supply( 90 – 264VAC 47- 63Hz,44 – 53VDC ) |
Yes |
||
|
Dimensions (W*D*H) |
443mm×360mm×44.5mm |
||
|
Temperature |
Operating temperature:0-50℃ |
||
|
Storage temperature:-40~70℃ |
|||
|
Humidity |
10%-90% noncondensing |
||
| AN-L3-3526A | 24 10/100Base-T + 2 Gigabit SFP/TX (Expansion slots) |
Description
The AN-L3-3526A provides 24 auto-sensing 10/100 Ethernet ports and two Gigabit expansion slots for fiber or copper optional. Its hardware is designed to support intelligent Layer 2/3/4 flow classification. The main features of the 24X2 layer 3 routing switch, such as access control list (ACL), filtering and QoS classification bring intelligence and security to the edge of the networks and enable applications such as real-time streaming multimedia.
It supports a wide range of Layer 2/3/4 protocols including RIPv1/v2, OSPFv2 and PIM-SM, VRRP. It’s regarded as the foremost intellectual access point of area network,not only have switching and routing functions but also includes authenticating function (e.g. user access control), secure protection (e.g. defends the virus and scanning) function, monitoring function etc. It is an ideal choice of solving a great deal of awkward problems.
