AN-FDB-0132B

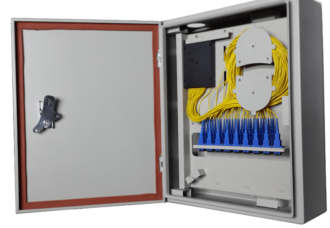

AN-FDB-0132B is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net. As you can see, box has 2 sides – 1 side is optical splice tray + passive optical termination, and another side is distribution box to flats, houses – user side! One side is used for splicing the cable coming from OLT, another side – cables coming from flats, houses etc. You can choose the set with any spliiter, like 1:2, 1:4, 1:8, 1:16 or even 1:32 etc, depending on a model. 1:N or 2:N splitting versions are also available upon request.
- High quality cold rolled steel body,electrostatic spraying with water proof powder
- High quality water proof lock,wall mounted cabinet
- Operating temperature:-30°C~+55°C,storage temperature: -40°C~+60°C
- With access to 2 pcs of 12 cores fiber optic cables and up to 32 pcs of customer cables
- Suitable for multi fiber optic cable access as well
- Suitable for 36 pcs of SC,FC,ST adapters, easy to installation and maintenance
- Support branch connection styles
|
Item |
AN-FDB-0132B |
|
Dimenstion (mm) |
H450Xw350xD150 |
|
Cable diameter (mm) |
Ф10～Ф14 |
|
Cable ports |
2 holes |
|
Max capacity of splice tray |
24 (single fiber) |
|
Max quantity of splice tray |
2 |
|
Max capacity of main backbone cable |
12 (single fiber) |
Description
AN-FDB-0132B is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net. As you can see, box has 2 sides – 1 side is optical splice tray + passive optical termination, and another side is distribution box to flats, houses – user side! One side is used for splicing the cable coming from OLT, another side – cables coming from flats, houses etc. You can choose the set with any spliiter, like 1:2, 1:4, 1:8, 1:16 or even 1:32 etc, depending on a model. 1:N or 2:N splitting versions are also available upon request.
