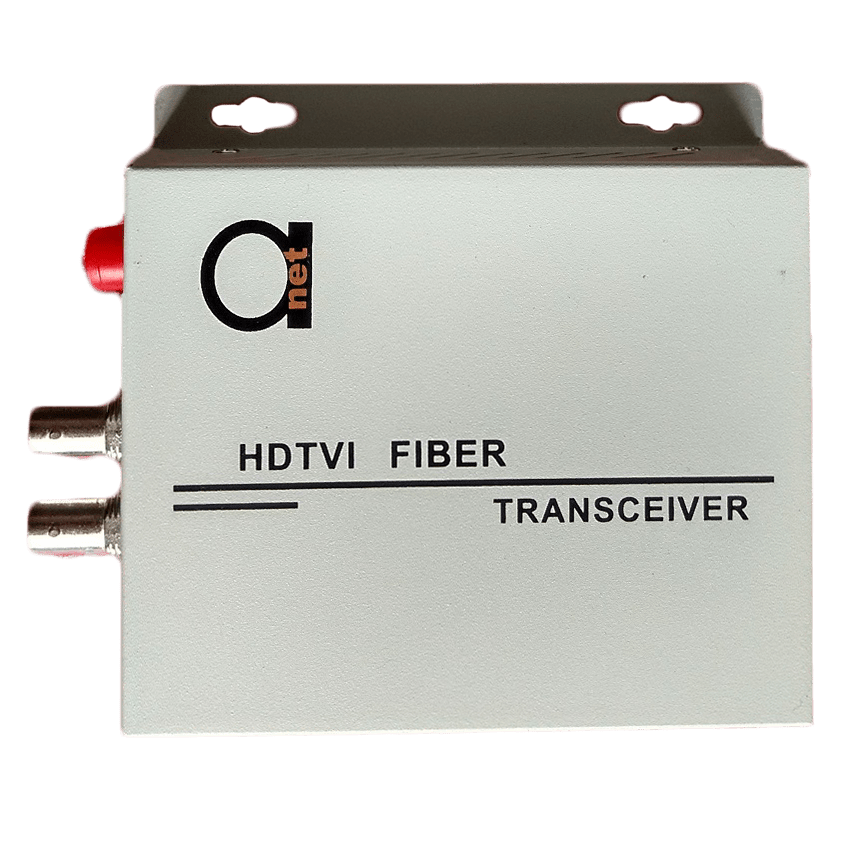

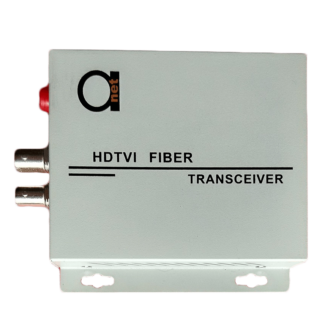

AHD/TVI/CVI 2 channel video over fiber optical converter up to 5MPX (2560 x 1920@25fps)

Our AHD Video over Fiber Converters can simultaneously transmit 2 channel AHD/TVI/CVI video over fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Compatible with AHD-H, AHD-M, AHD-L / HD-TVI 720P & 1080P / HD-CVI 720P & 1080P, and even 2560 x 1920@25fps with video pixel ratios starting at 1280(H)x720(V)@30fps/1MPX and all the way up for 1.3mpx, 2mpx, 3mpx, 4mpx and 5mpx to support most up to date ultra HD modern security cameras.

Lossless non-compression real time transmission.
Automatically identify formats of input video ：AHD/TVI/CVI/PAL/NTSC/SECAM
Support :720P/25/30/50fps@1MPX,

960P/25/[email protected],

1080P/30fps@2MPX,

2048×1536/25fps@3MPX,

2560×1440/25fps@4MPX

2560×1920/25fps@5MPX

Advanced lightning protection design ,Data interface (terminal blocks) support 4KV lightning protection

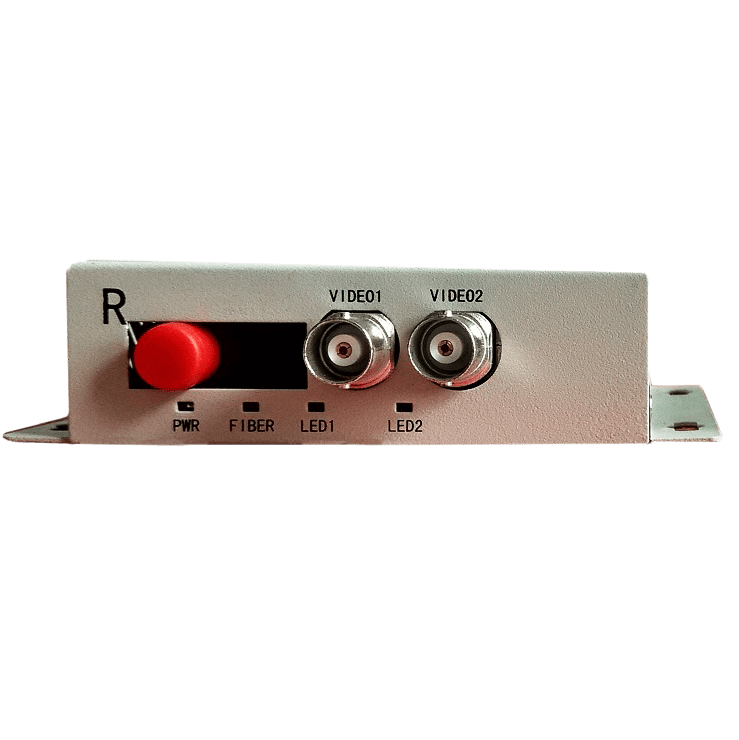

Through LED indicators to inform its functional mode
Wide range of operating temperature -15 ºC to 60 ºC
Stand-alone or Rack-mounted, simple installation.

Optics：

Wavelength	WDM:1310nm/1550nm
Output Power	-8~-3dBm
Optic fiber	9/125u single mode
Rx sensitivity	-23dBm
Optical connector	FC、ST、SC (optional)
Distance	0~550M (MM) / 0~80KM (SM) (Regular distance is SM 20Km)

Video：

Number of Channels	2
Input/output impedance	75 Ohm (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	50MHz
Sampling Bandwidth	8bit
Sampling Frequency	100MHz
Signal to noise ratio	>67dB
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC
Supporting video pixel	1280(H)x720(V)@30fps/1MPX 1280(H)x720(V)@50fps/1MPX 1280(H)x960(V)@30fps/1.3MPX 1920(H)x1080(V)@25fps/2MPX 2408(H)x1536(V)@25fps/3MPX 2560(H)x1440(V)@25fps/4MPX 2560(H)x1920(V)@25fps/5MPX

Data:

Protocol	RS485 (RS232/RS422 Optional)
Number of channels	1
Connector	9pins Terminal Blocks
Data Rate	0-200Kbps
Directions	Default :Simplex from Rx to Tx (BIDI duplex optional)

Mechanical Structure & Environment

Power	DC5V 1A
Power Consumption	≤3.1W
Working Temperature	-15ºC ~60ºC
Storage Temperature	-40ºC ~85ºC
Relative Humidity	5%~95% ( no condensation)
MTBF	≥ 100000Hours

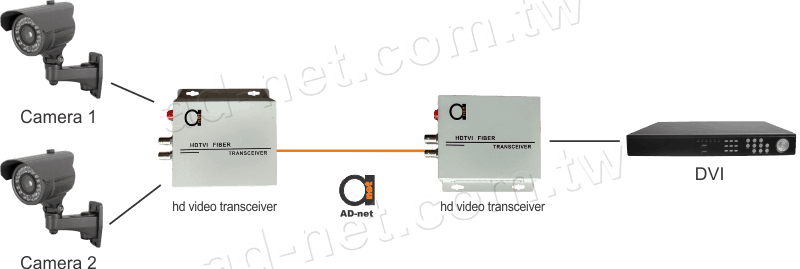

AHD.TVI.CVI 2 channel video over fiber optical converter_scheme_wm

Description

Its optical module and core circuit adopt the imported components that have high stability, and all optical & electrical interfaces conform to the international standards, which is applied to the different working environment. This optical transceiver with video status indication can monitor the normal operation of system.
