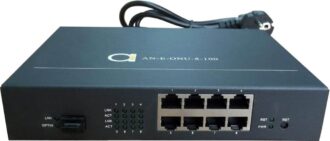

8 x 10/100 Fast Ethernet GEPON ONU unit
GEPON ONU AN-E-ONU-8-100 Pure Data-Type ONU is a Passive Optical Networking CPE, based on the broadband access of EPON technology. GEPON ONU AN-E-ONU-8-100 and AN-OLT-8000 or AN-OLT-2000 (EPON head-end OLT) communicate with each other, providing an integrated solution of the broadband access to the user based on the EPON technology.
-
Support port-based rate limitation and bandwidth control;
-
In compliant with IEEE802.3ah Standard
-
Up to 20KM transmission Distance
-
Support data encryption, group broadcasting, port Vlan separation, RSTP,etc.
-
Support Dynamic Bandwidth Allocation (DBA)
-
Support ONU auto-discovery/Link detection/remote upgrade of software;
-
Support VLAN division and user separation to avoid broadcast storm;
-
Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS
-
by means of different LLID channels.
-
Support power-off alarm function ,easy for link problem detection
-
Support broadcasting storm resistance function
-
Support port isolation between different ports
-
Support ACL and SNMP to configure data packet filter flexibly
-
Specialized design for system breakdown prevention to maintain stable system
-
Support software online upgrading
-
EMS network management based on SNMP ,convenient for maintenance
| Index |
Parameters |
Specifications |
|---|---|---|
| Port Specification |
PON Port |
1 EPON SC/PC
In comply with 1000BASE-PX20 Standard Port speed: Symmetrical 1.25Gbps SC single mode single fiber Splitting Ratio:1:64 at most Transmission Distance: 20KM (Splitting Ratio >1:32) |
|
User Port |
Eight 10/100M adaptable Ethernet interface
Full duplex/Half duplex RJ45 electrical port, Support Cross straight connection auto-negotiation. Transmission Distance: 100 Meter |
|
|
Power Supply Port |
220VAC Power supply | |
| Function Specification |
PON Optical Port Function |
Wavelength: 1310nm TX, 1490nm RX
TX Power: -1～4dBm Receiving Sensitivity: -27dBm Saturation Optical Power: -3dBm
|
|
Data Transmission Feature |
PON Port Throughput: Downlink 950Mbps; Uplink 930Mbps
Ethernet Interface: 100Mbps Packet Loss Rate: <1*10E-12 Transmission Delay: <1.5ms |
|
|
Service Capability |
Layer-two link rate switch
Support VLAN TAG/UNTAG, VLAN forward Support Port speed limitation Support QOS Support broadcast Storm Limitation Support RSTP |
|
|
Device Management |
Management Style |
EMS Centralized Management by means of OAM protocol, Support SNMP, TELNET, CLI Management. |
|
Management Function |
Status monitoring, configuration management, Alarm Management, Log Management. | |
|
Status Indication |
LED |
PWR: Power Indicator
OPTIN: Optical Signal Indicator LINK: Registration Indications LNK/ACT: Working Status Indication for Ethernet port |
| Physical Characteristics |
Housing |
Metal Housing |
|
Power Supply Power Consumption |
220VDC Power Supply, External Power Supply with Power Adapter: 12V 1A
Power Consumption: < 6W |
|
|
Dimension and Weight |
Device Dimension: 200mm(L) x 150mm(W) x 39mm (H)
Package Dimension: 245mm(L) x 220mm(W) x 70mm (H) Device Net Weight: 0.9kg Device Gross Weight: 1.1kg |
|
|
Environmental Parameter |
Working Temperature: -10～55℃
Storage Temperature: -40～85℃ Working Humidity: 10%～90% Non Condensation Storage Humidity: 5%～95% Non Condensation |
| AN-E-ONU-8-100 | 8 port Fast Ethernet 100 Mbit/s, 1 PON uplink, GEPON ONU |
Description
EPON Technology is a rising technology that combines with PON and Ethernet Technological superiority. It is a technology that point to multi-point networking. Through the Passive Optical Networking, the OLT device gather together with many ONU devices for interconnection, and it is combined with the technology of SFP BIDI, so EPON system could use less fiber resources to meet the needs of Operator about the multiuser for multiple service access.
EPON Technology is based on the technology of Ethernet, and EPON device is well compatible with the existing network. Meanwhile, EPON device provide the flexible and reliable QOS service to the customers based on the technology of DBA.
GEPON ONU AN-E-ONU-8-100 support symmetrical 1Gbps transmission rate of uplink and downlink, and communicate with the head-end device (AN-OLT-8000 or AN-OLT-2000 OLT). It provides the customer with the guarantee of stable QOS, and the flexible bandwidth allocation of Ethernet and IP integrated service.
GEPON ONU AN-E-ONU-8-100 fully complies with IEEE technology standard, meeting the demands of domestic multiple operators about the EPON device technology.

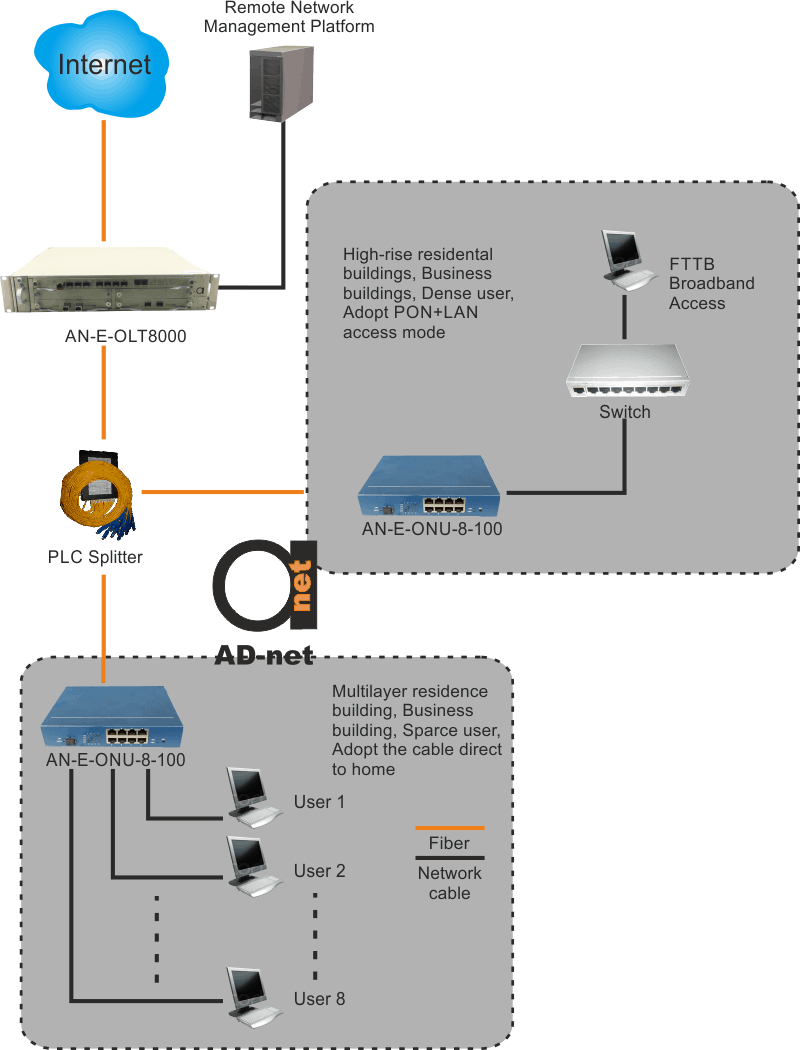

ONU AN-E-ONU-8-100 has 1 SC/PC PON port and 8 10/100BASE-T ports.
