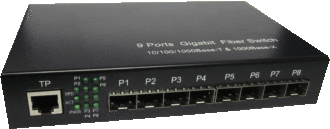

8 ports SFP slot & 1 port 10/100/1000 Gigabit Optical Fiber Switch
AN-UM-SMC-81-AS - 9 ports Gigabit Ethernet Switch has 1 10/100/1000M UTP port and 8 1000M SFP sockets/slots. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T, 1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.
- It can switch Ethernet signals among 10/100/1000M UTP port (T) and 8 1000M Optical Fiber Interfaces (X)
- Auto negotiation function supports UTP ports to auto 10/100/1000M and Full Duplex/Half Duplex.
- The SFP slot supports 1000M and Full Duplex mode.
- Supports flow control and broadcast storm protection.
- Supports VLAN and QoS.
- Supports max 10K bytes frame.
- It is low power consume (4W), low heat, and good reliability.
Operating standards: IEEE802.3z/AB, 10/100/1000Base-T and 1000Base-SX/LX
MAC address table: 1K
Frame buffer memory: 1MKb
Switching capacity: 12G
Connector: UTP: RJ-45, 10/100/1000Mbps;
SFP slot: 1000Mbps;
Cable: UTP: Cat.5 or 6 UTP (the max distance up to 100m)
Multimode Fiber: 50/125, 62.5/125μm (the max distance up to 224/550m)
Singlemode Fiber: 8/125, 8.7/125, 9/125μm (the max distance up to 10～100 km)
Flow control: Full Duplex: IEEE802.3x flow control;
Half Duplex: back pressure flow control
LED：PWR，F1 Link/Act，F2 Link/Act；TP1～TP4 Link/Act，TP1～TP4 100，TP1～TP4 1000；
Power Requirement: AC220V(100-240V)，50～60Hz； DC：5V，2A
Ambient Temperature:：0 ～ +50℃；
Storage Temperature:：-20 ～ +70℃；
Humidity：5% ～ 90%；
Dimensions：30(high)×140(width)×90(length)mm；
| AN-UM-SMC-81-AS | 9 ports Gigabit Ethernet Optical Fiber Switch with 8 x 1000M SFP ports and 1 x 10/100/1000 RJ45 ports. |
Description
AN-UM-SMC-81-AS – 9 ports Gigabit Ethernet Switch has 1 10/100/1000M UTP port and 8 1000M SFP sockets/slots. Customer can choose different 1000M SFP module according as his demand, such as 1000Base-T, 1000Base-SX or 1000Base-LX etc. The product is possessed of stable performance, excellent quality and reasonable price with adopting latest IC from USA. It is applicable to use in constructing of Optical Fiber Ethernet.
