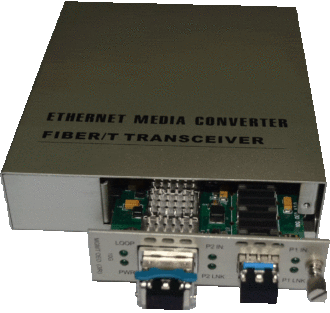

8.5~11.7 G Optical-Electrical-Optical Media Converter (3R Repeater)

AN-M10-11.7G-XX-M is 8.5~11.7 G Optical-Electrical-Optical Media converter Converter (3R Repeater) which supports ONET OC192,SDH STM-64,10G WAN,10G LAN, ONT OTU-2,10G LAN witch 255/237 FEC coding, 8.5G/10G Fiber Channel,10G POS

Support 2U Rack (16 Slots) and independent use as standalone unit
Support 10Gbase-SR/LR/ER/ZR/LRM to 10Gbase
SR/LR/ER/ZR/LRM
Support network management (Web SNMP, Console)
Support in-band management
Support ITUT prescribed DWDM/CWDM wavelength
Transmission rate: 8.5~11.7 G
3R function.
Support Jumbo Frame
Transparent Transport and very low delay
Support DMI function for SFP fiber module
Support Loopback test function
Support PRBS Generator and checker
Support hot plugging
Full State Led display
Easy installation

AN-M10-11.7G-XX-M(A)	8.5~11.7G Optical-Electrical-Optical Converter (3R Repeater), A Type: SFP+ To/From SFP+
AN-M10-11.7G-XX-M(B)	8.5~11.7G Optical-Electrical-Optical Converter (3R Repeater), B Type: SFP+ To/From XFP
AN-M10-11.7G-XX-M(C)	8.5~11.7G Optical-Electrical-Optical Converter (3R Repeater), C Type: XFP To/From XFP
