4K DVI & 3D Signal Over Fiber Extender / Converter Set with EDID support

The DVI Fiber optic extender provides extension of DVI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 4K*2K, EDID copy/pass-thru function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 2-10km over a pair fiber optic cable;
Support video resolution up to 3860*2160@30Hz, 3D;
Support copy EDID copy/pass-thru, can match many kind display device;
Compliance with DVI 1.0 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	DVI 1.0
	Maximum pixel clock	225MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 3840*2160@30Hz, 3D ,
	Connector	DVI Interface
	HDMI Cable Range	<5M ( Resolution: 1920*1200@60Hz)
	Impedance	100Ω
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
RS232	Interface	Industrial Terminal
	Signal Direction	Unidirectional
	Baud Rate	Self-adaptive, Max: 115200bps
	Data Bits	8
Other	Power supply	The power adapter: DC 12V/1A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	947125mm
	The warranty	1 year free warranty

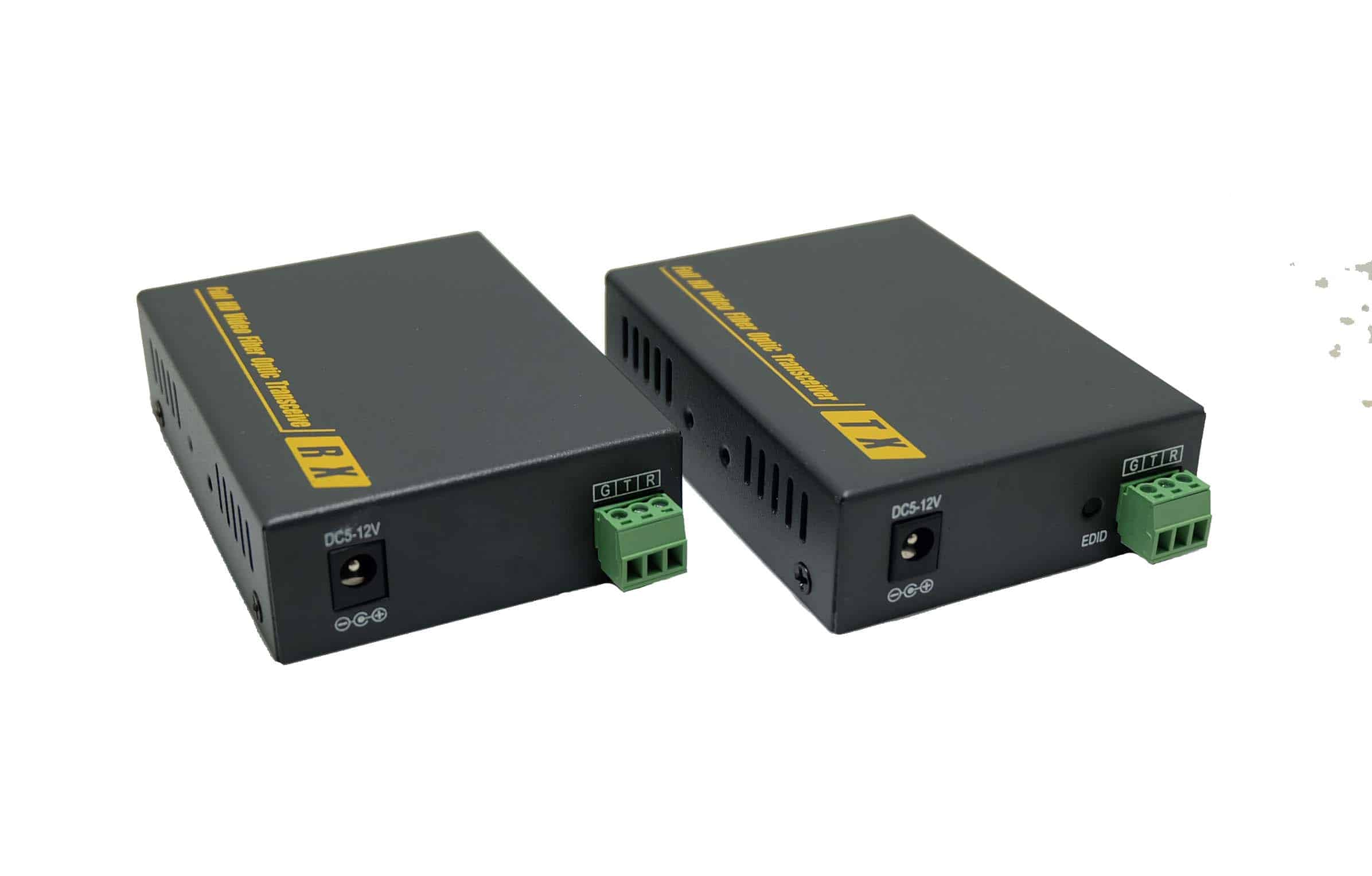

Transmitter:

Receiver:

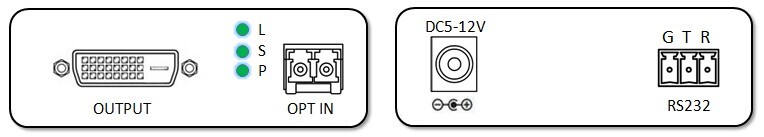

Port name	Description
DVI IN/OUT	DVI signal input/output
EDID	EDID Copy button, Press 3 seconds, copy EDID from DVI IN display device to system .If DVI IN interface no display connect, restore default EDID.
DC/5-12V	Power adapter socket
FIBER	SFP model — LC connector
RS232	Industrial Terminal
LED indicator	Description
L	Optical fiber signal connection indicator
S	Video signal connection indicator
P	System power indicator

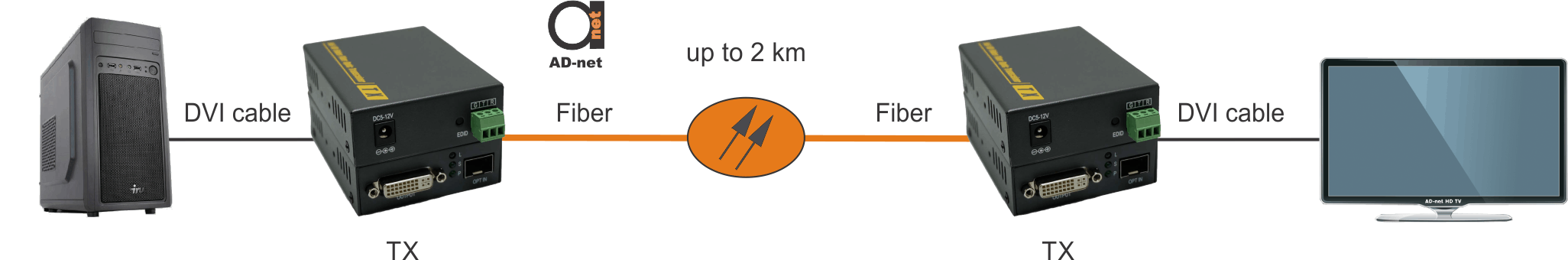

Installation:

Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
Connect the DVI output port of receiver to the display device with DVI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
Connect the provided DC power supplies to the power socket of the transmitter and the receiver.

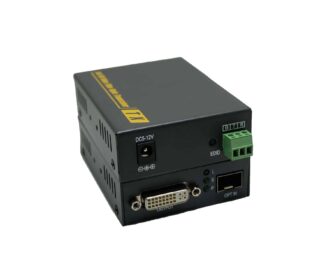

AN-DVI-EXT06

3860*2160@30Hz, resolution 3D DVI video over fiber extender set with RS-232 port (industrial terminal type)
