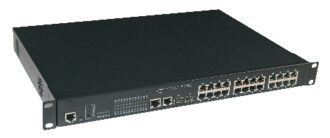

24 port PoE switch

The 24 port PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The twenty-four RJ45 network ports and two fiber port can be used for any 10/100M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.

  • IEEE 802.3af power on up to 24 ports
  • Supply power to wireless access points and surveillance cameras over Cat-5 cabling
  • 24 x 10/100 Mbps Ports
  • Supports PoE power up to 15.4W for each PoE port
  • Supports PoE power up to 440W for all PoE ports
  • Supports PoE IEEE 802.3af compliant Pds
  • 8K entry MAC address table of the PoE Switch POE31024PF with auto-learning and auto- aging
  • LED indicators for monitoring power

Connector Type

24-Port fast Ethernet PoE switch with 2 Gigabit Combo ports

Network Media

100Base-TX (≤150 meters, Cat 5 cable), 1000Base-FX, 1000Base-TX

Bandwidth

8.8Gbps

Address Database Size

96KB

MTBF

100,000 hours (about 10years)

Network Latency

Switch Throughput:6.5Mpps@64Bytes

Forwarding Mode

Store-And-Forward Architecture

Buffer Memory

8M

Network Protocols

IEEE 802.3i 10BASET; IEEE 802.3u; IEEE 802.3x; IEEE 802.3z Flow

Control IEEE 802.1af DTE Power via MDI; IEEE 802.3af

LED Display

Power, Ethernet Data, PoE working status

Power Supply

Input AC100-240V 50/60Hz

PoE Ports

1-24 Port support PoE

PoE Port Power

15.4Watts per port

PoE Standard

IEEE802.3af

PoE Feature

Automatic identification AF/AT

Power Consumption

440W

Working Environment

Working temperature:-20°～ 55°C , Storage temperature: -40°～ 85°C,

Working Humidity: 5%～95%, non-condensing

Certification

FCC Class A, CE, RoHS

Radiation

No

Transmission Distance

Ethernet RJ45+POE：100M;Single Fiber 20KM

Power Supply Type

1/2+、3/6- （End-span）；Optional order 4/5+、7/8- (Mid-span)

QoS

Yes

NMP

No

VLAN

No

Product Size

440 X 275 X 44.5mm, 4.9kg

Warranty

3 year

POE SWITCH_scheme

Description

The 24 port PoE Switch provides power and data from a single point, using Power over Ethernet (PoE) over a single Cat-5 cable. The twenty-four RJ45 network ports and two fiber port can be used for any 10/100M link and all of these ports can supply industry-standard IEEE 802.3af power. It can reduce equipment and installation costs by delivering data and power over existing Ethernet cables.
