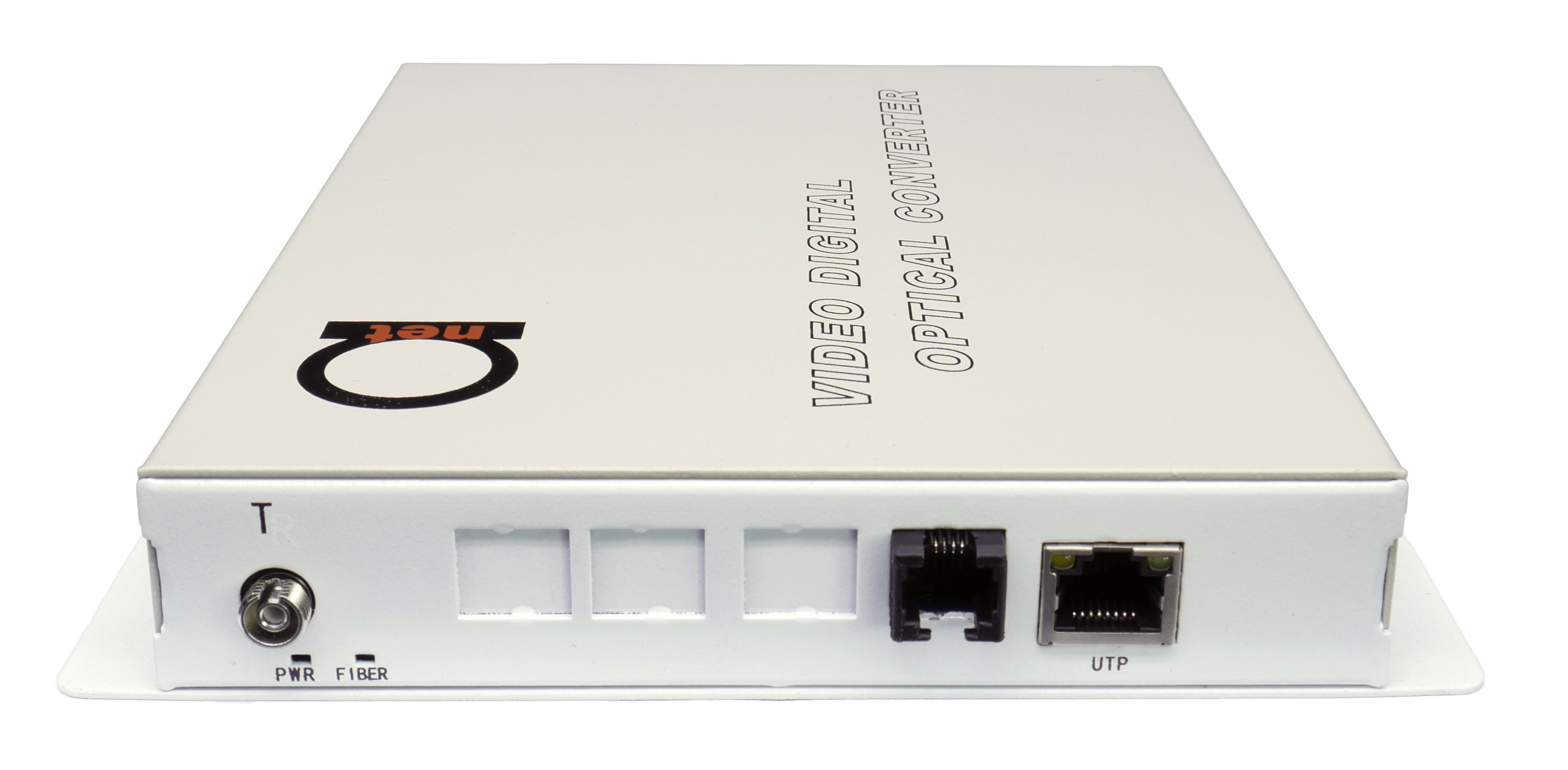

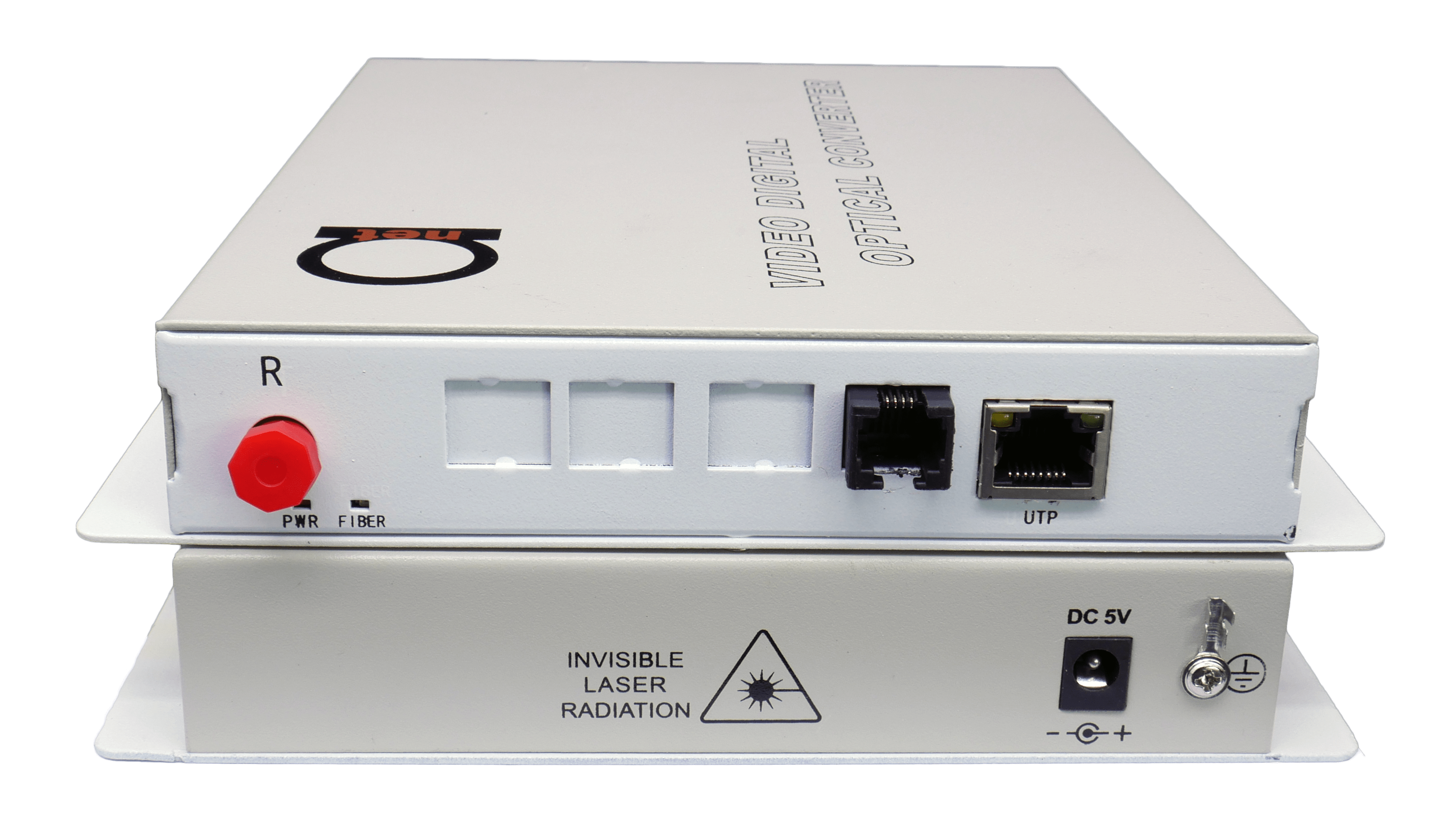

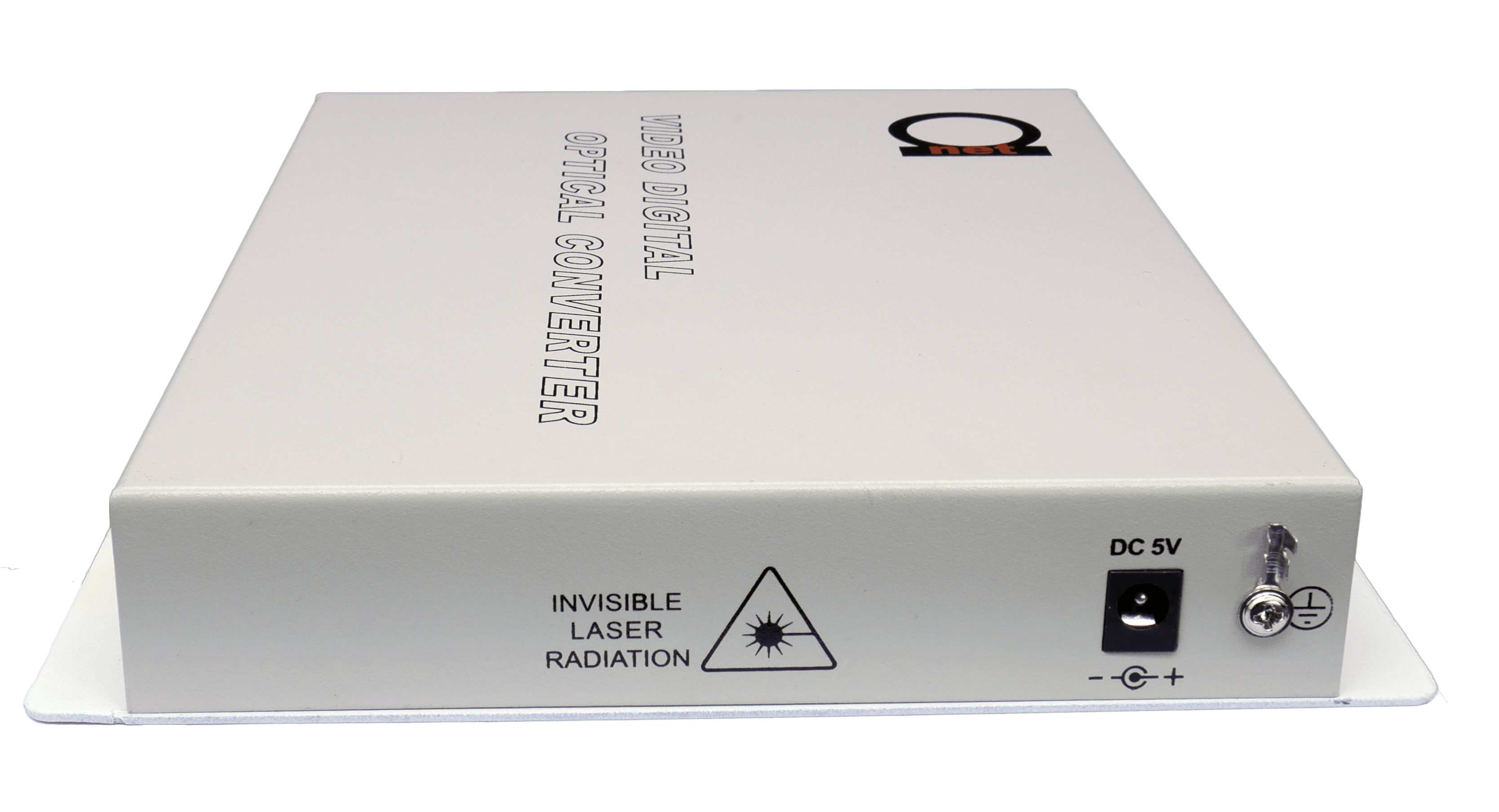

1, 2, 4, 6, or 8 port RJ-11 type Telephone POTS FXS/FXO & Ethernet 10/100 to Fiber Optic Converter
- Low cost solution for delivering analogue POTS lines over long distance fibers;
- up to 1, 2, 4, 6 or 8 FXO RJ-11 ports for connection to PABX or PSTN;
- up to 1, 2, 4, 6 or 8 FXS RJ-11 ports for connection of phones;
- Ethernet port for LAN interconnection along with voice ports over same fiber;
- MTBF more than 10 years
- WDM Bidi fiber interfaces available
TELEPHONE PARAMETERS
Physical interface: RJ11
Analog telephone / switch interface characteristics
Voice Bandwidth: 8KHZ
Codec method: PCM codec
Signaling Control: Transparent support any in-band signaling
Interface communication terminal: Ordinary telephone or group telephoon, program-controlled switches (PBX), public telephone network PSTN

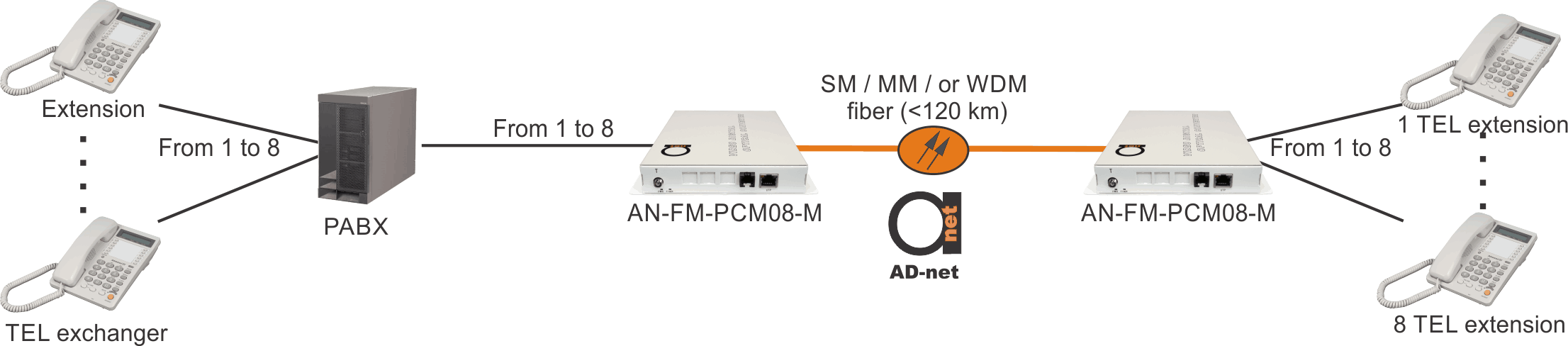

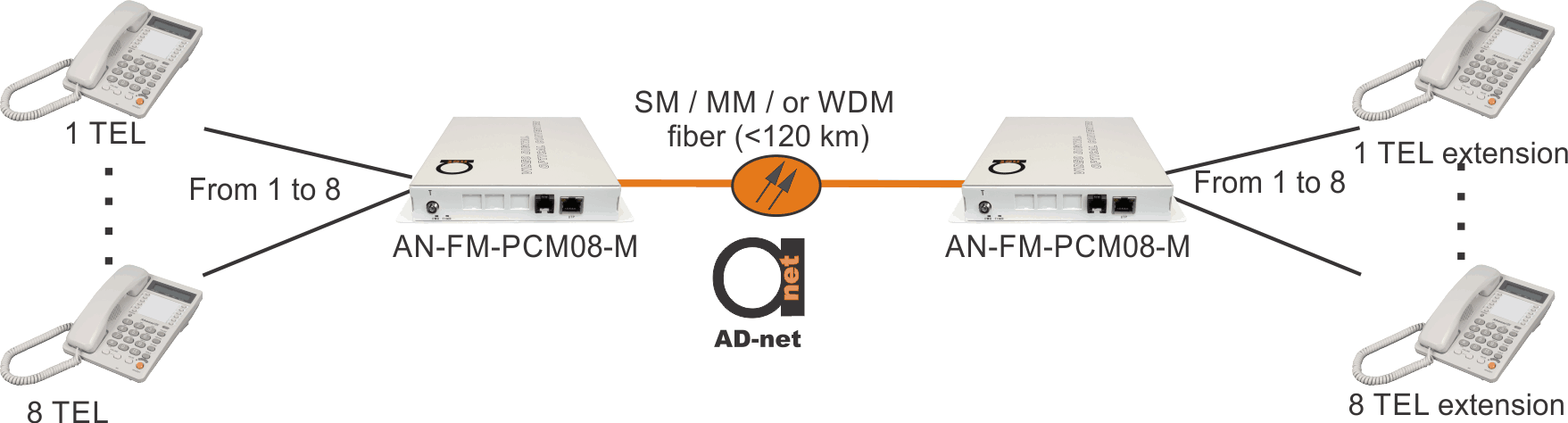

Connection: Point to point link/PBX system
FXS: Ringing voltage: 75V, ringing frequency: 25HZ
FXO: Two-wire input impedance: 600Ω (off-hook)
Return loss: 40 db, ringing detection voltage: 35V
Ring detection frequency: 17HZ-60HZ, wire input impedance: 600Ω (off-hook),
Return loss: 40 db
Stand-alone or rack-mounted optional.
Can be inserted into our 18-slot, 19inch 4U
Rack-mountable chassis with redundant power
Optical interface
Optical wavelength: single mode 1310nm/1550nm
Fiber: single fiber or double fiber for option
Transmission range: 0-50Km/100Km for option
Optical interface: SC/FC/ST
Dimension:
(17.3*15*2.8cm for 1,2 and 4 port units
(17.3*15*4.5cm) for 6 and 8 port units
Ethernet interface:
Interface Rate: 10/100Mbps
Interface character: match IEEE802.3, IEEE802.1 Q
Connector: RJ45
Working condition
Voltage: AC220V; DC –48V; DC +24V
Consumption: ≤5W
Working temperature: 0°C~50°C
Storage temperature: -35°C~+70°C
Relative humidity: 95 %
PACKING LIST
Please check the following items in the package before installation.
1×Optical transmitter
1×Optical receiver
2×AC/DC power adaptors
1×User’s manual
1×Warranty card
In Video we show quick testing and commissioning of 4 Phone port + 1 Ethernet over fiber devices. FXO unit is getting connected to FXO port to PABX and then right side you can a see a phone set.
Also along with voice over same fiber, 2 PC’s are connected and pinged through.
In this video, you can see how WDM single fiber version works with 2 POTS phone port and 1 Ethernet port. We connect PC to FXS side mux, and another side goes right to the internet, and then one of the POTS phones are directly connected to PABX, while another one works remotely via 1 km of Single Mode Fiber. This is how pretty common remote workstation location PC + Telephone actually looks like.
In this video, we do a quick setup of our AN-FM-PCM02/ETH-M 2 port telephone and LAN port over same fiber extenders setup.
| AN-FM-PCM01-M (FXO) | 1 FXO channels Voice (1FXO) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM01-M (FXS) | 1 FXS channels Voice (1FXS) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM01/ETH-M (FXO) | 1 FXO channels Voice (1FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM01/ETH-M (FXS) | 1 FXS channels Voice (1FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02-M (FXO) | 2 FXO channels Voice (2FXO) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02-M (FXS) | 2 FXS channels Voice (2FXS) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02/ETH-M (FXO) | 2 FXO channels Voice (2FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02/ETH-M (FXS) | 2 FXS channels Voice (2FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02/ETH-M (FXO) | 2 FXO channels Voice (2FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 40Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM02/ETH-M (FXS) | 2 FXS channels Voice (2FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 40Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM04-M (FXO) | 4 FXO channels Voice (4FXO) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM04-M (FXS) | 4 FXS channels Voice (4FXS) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM04/ETH-M (FXO) | 4 FXO channels Voice (4FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM04/ETH-M (FXS) | 4 FXS channels Voice (4FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM06-M (FXO) | 6 FXO channels Voice (8FXO) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM06-M (FXS) | 6 FXS channels Voice (8FXS) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM06/ETH-M (FXO) | 6 FXO channels Voice (8FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM06/ETH-M (FXS) | 6 FXS channels Voice (8FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM08-M (FXO) | 8 FXO channels Voice (8FXO) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM08-M (FXS) | 8 FXS channels Voice (8FXS) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM08/ETH-M (FXO) | 8 FXO channels Voice (8FXO)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
|
| AN-FM-PCM08/ETH-M (FXS) | 8 FXS channels Voice (8FXS)+ 1 Ethernet port (10/100M adapt) on fiber mux. Single mode single fiber 20Km (or more, depending on model, Multimode models also available) |
