Multi-Functional Integrated Service Multiplexers (7 Products)


nx64k PCM, E1.G703, V35, Serial interfaces, 10/100/1000 BaseT Ethernet, cross-connect functions, daisy chain for E1 time slot multiplexing… all these you will find under this category. Send us your requests and requirements to help you find suitable solution!

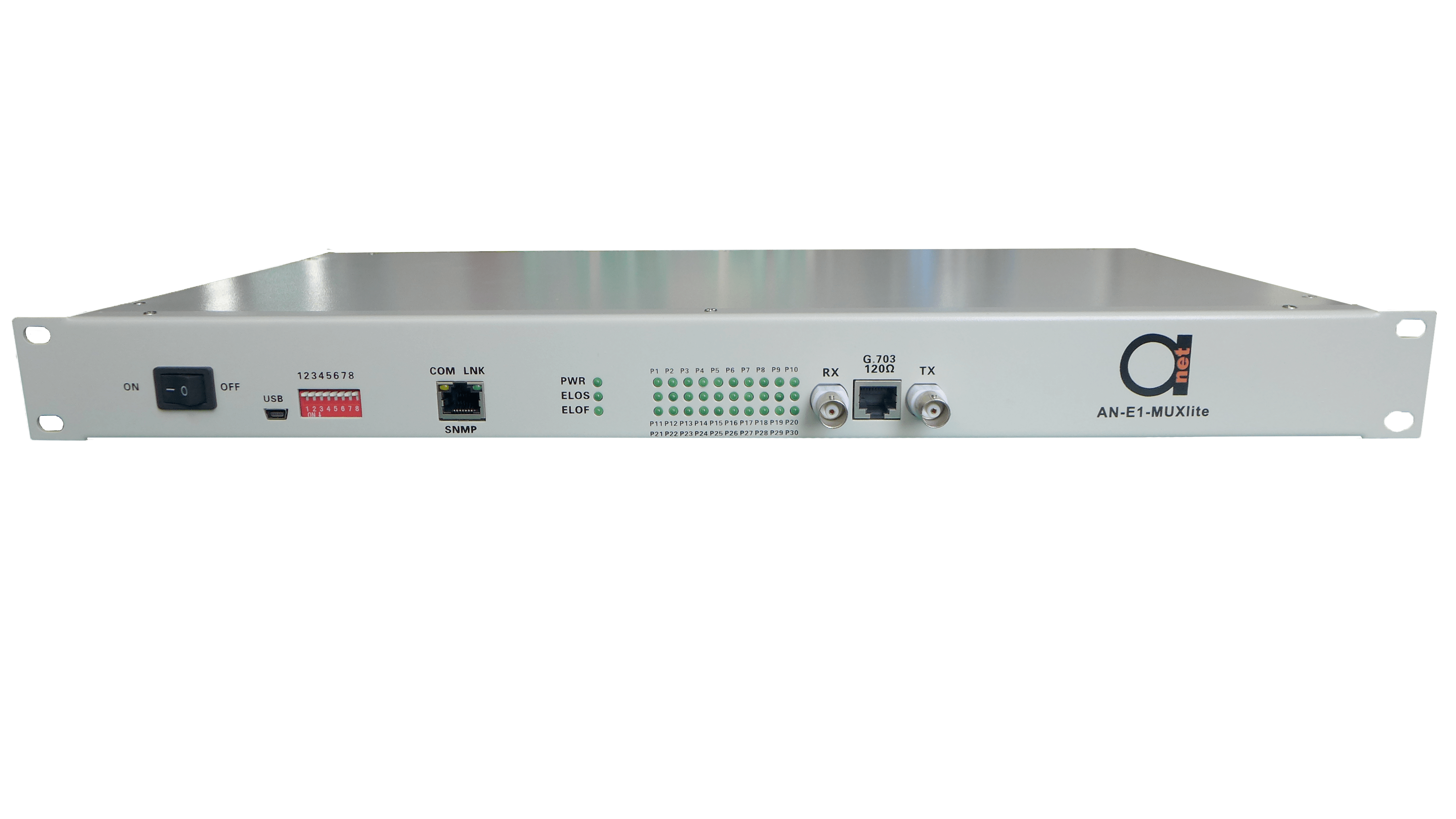

E1 time slot mux / 30 FXS/FXO over E1 converter

AN-E1-MUXlite provides conversion between ITU-T G.703 standard E1 framed interface and up to 30 FXS/FXO standard POTS analogue telephone lines.

E1 Time Slot Extraction and Insertion Series System

Time Slot Extraction and Insertion system consists of node equipment and central convergence server, and node equipment can extract partial time-slots from E1 channel to implement multiplexing transmission of 1/2/4/8 channel(s) of RS232/RS422/RS485 serial port data or Ethernet data, and the node equipment can construct chain network by cascade connection, and the central server can collect serial port data or…

Multi-Functional Integrated Service Multiplexer

AD-net provides all types of PCM multiplexers, from high-end to low-end, from standard size to miniaturized, from rack mount to portable. All multiplexers offer variable service interfaces, flexible system configuration, high reliability and cost competitiveness. AN-MFISM-A and CPE multiplexer is a key member of PCM multiplexer family.   AN-MFISM-A and CPE is a powerful multi-service access platform that combines video,…

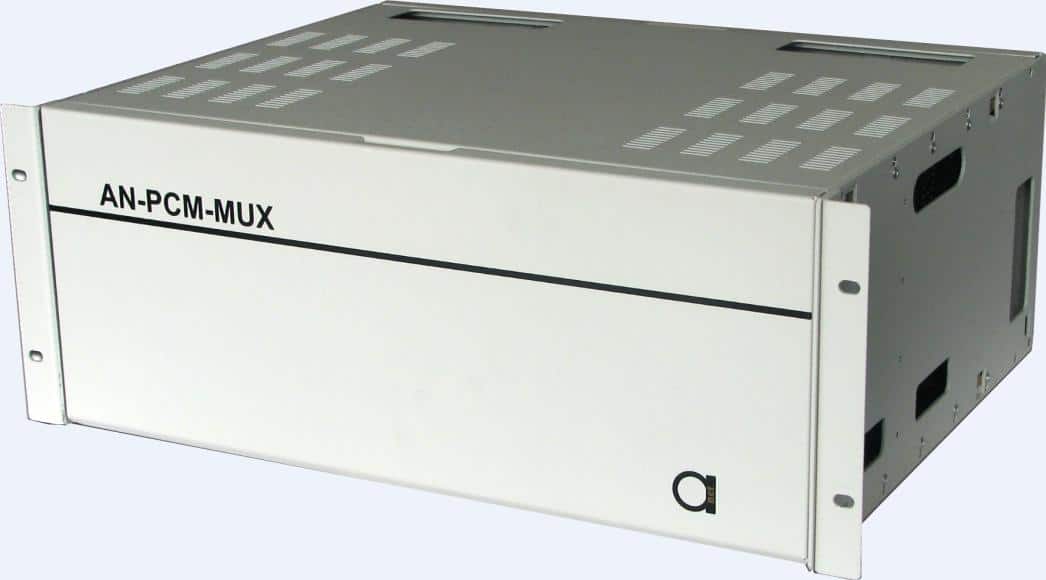

PCM Oriented Multiservice Platform

AN-PCM-MUX is a PCM MUX equipment. It converts analog voices into 64 kbps digital signals, and multiplexes the tributary 64kbps signals into primary rate E1 signal, to be transmitted over E1 transmission channels. It can be used to extend the reach of voice and data services from the central office to remote user sites. To meet the needs of different…

4 E1 Digital Cross Connect System

The connection matrix connects any incoming 64Kbps timeslot to any outgoing 64Kbps timeslot. AN-DM-DXC4 can be used in the application like drop-and-insert, distribution and collection.   The main applications are found in the local switching of Nx64k leased line connections, and the concentration of Nx64k services onto 2 Mbps E1 circuits. This solution is particularly useful for smaller concentration points…
