Special Type Ethernet Converters (10 Products)


Even now we still can offer legacy Ethernet interface converters such as 10BaseT, 10Base2, 10BaseFL and AUI, so you if you meet a need for these, we’ve got a solution.

100 ohm – 150 ohm Ethernet Impedance Balun / Converter

AN-EIC Impedance Matching Device converters Type 1 (Token-Ring cable) 10Base-T(UTP)/100Base-TX(STP) cabling on jack in position at pin 1,2,3,6. Matches Impedance from 150 ohm to 100 ohm, conforms to IEEE 802.3 10Base-T/IEEE802.3u 10Base-TX Application.

10Base-2 (Thinnet Coax BNC) to 10Base-T Ethernet Converter

AN-10BT-10B2 Converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thinet Coax BNC Ethernet Network to a 10Base-T UTP network. AN-10BT-10B2 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.

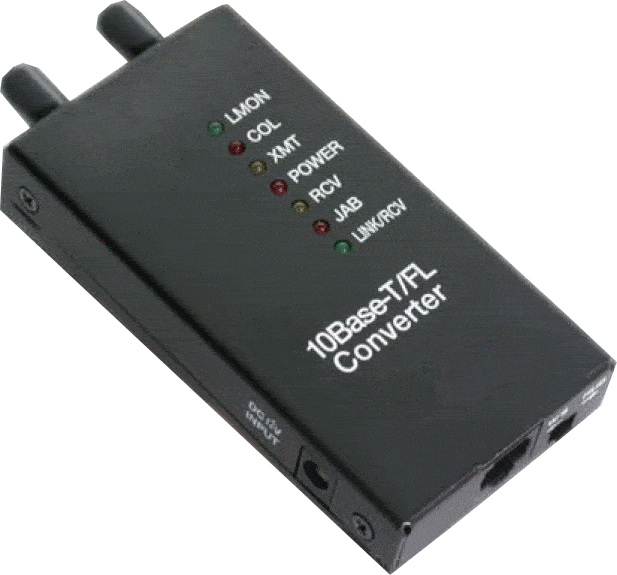

10Base-T Ethernet to 10Base-FL fiber optical media converter

AN-10BT-10BFL 10Base-T to FLConverter is designed to convert your existing 10Base-T Ethernet to a 10Base-FL network with single mode fiber optic cable up to 20,000 meters. The converter simply repeats sig-nals from 10Base-T Ethernet to a suitable form for transmission over fiber optic cables to 10Base-FL link. No more pair cross-over patch cords. You can always use pin-to-pin patch cords…

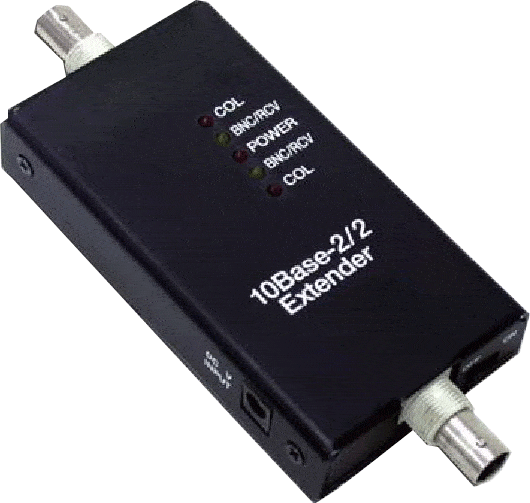

10Base2 (10B2) Ethernet Signal Extender

AN-10B2-2 extender is a perfect solution to end your cabling headaches. No more cable distance restrains. The extender works in conjunction with a 10Base-2 Hub to double the 185meter distance of the cable run to the workstations. The extender features included of 7 LEDs on POWER, LINK, RCV, COL, which is required external power and fully compatible with IEEE 802.3…

10Base-2 to 10Base-FL Ethernet Converter

AN-10B2-10BFL providers quick and easy conversion between BNC Jack for 10Base-2 to ST Connector for 10Base -FL - single or multimode type. AN-10B2-10BFL is a perfect solution to end your cabling headaches. No more cable distance restrains. The extender works in conjunction with a 10Base-2 Hub to double the 185-meter distance of the cable run to the workstations.Fiber optic cable…
