	IP (LAN) & Analog over Coax Transceiver \| Extender

	AN-CX-IP-A is a device to transmit IP & Analog over coaxial cable. This product could simultaneously transmit analog CVBS video signal and digital IP video signal (or any IP or Ethernet LAN) over a single coaxial cable for long distance transmission up to 500 meters.

TESTIMONIAL

We were searching product to extend existing anolog video network. Adding new cables for IP camera is very expensive and we would like to find new solution to reuse existing cables. In the future we will use IP over coax but right now we have to to work with both (analog & IP camera).

As a result your product correspond to our needs.

Easy to install, cost effective. We are trying to find French company interesting by this product to install-it on our network.

Fabrice, France

The maximum bandwidth can reach 50Mbps via RG59 ( 75-5 ) coaxial cable. This device should be used in pair, one as a local receiver and the other as a remote transmitter. It’s widely applied in system upgrading projects and many fields of railway, urban traffic, security surveillance. As an IP device you can use any IP camera, PC or even LAN switch.

High-speed transmission of Ethernet network signal and Analog CVBS signal over one coaxial cable
Simultaneously transmit IP & Analog video signal as far as 500m.
Excellent real-time function.
The highest rate up to 50Mbps.
10/100M network environments compatible.
Strong anti-interference, suitable for industrial environment use, easy installation.
Perfect solution to upgrade and renovate traditional analog system into digital IP surveillance system.
No need to install any computer drivers and software settings.

Category			Description
Power	Power Supply		Power Adapter for Power Supply
	Available Voltage Range		12VDC
	Power Consumption		<4W
Signal Transmission Type and Terminal	Ethernet Communication Terminal		RJ45 Socket
	Analog Video Terminal		BNC Terminal
	Hybrid Transmission Terminal		BNC Terminal
	Signal Transmission Type		High-speed Transmission of Ethernet Network Signal
	Transmission Rate ( SY-75-5 )		50Mbps/s ( Maximum )
Transmission Rate ( Coaxial Cable SY-75-5 )	Transmission Distance	Total Transmission Rate ( Maximum )	Transmission Rate ( Downlink Maximum )	Transmission Rate ( Uplink Maximum )
	500m	50Mbps/s	38Mbps/s	12Mbps/s
LED Indicator	Power Indicator		1PC ( Red )
	Ethernet Terminal Indicator		1PC ( Green )
	Ethernet Data Transceiver Indicator		1PC ( Yellow )
Protection	Transmission Channel Lightening Protection		4KV 10/700us, common mode lightning protection: Level 4
			1KV 10/700us, differential mode lightning protection: Level 1
			Executive Standard: IEC61000-4-5
	Product Electrostatic Protection		1a Contact Discharge Level 4
			1b Air Discharge Level 4
			Executive Standard: IEC61000-4-2
Product Physical Characteristic	Dimensions (L × W × H)		120mm × 90mm × 24mm ( including the terminal length )
	Material		Aluminum
	Color		Black
	Net weight		200g
Operating Environment	Working Temperature		0° C -50° C
	Storage Temperature		0° C -85° C
	Humidity		0° C -95° C

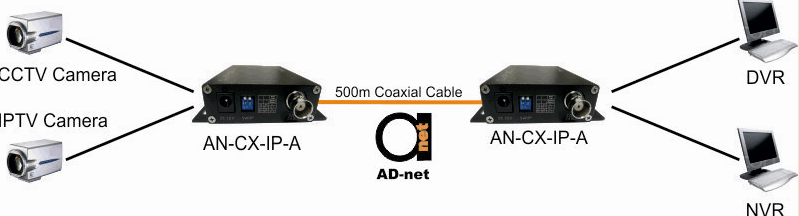

Application example:

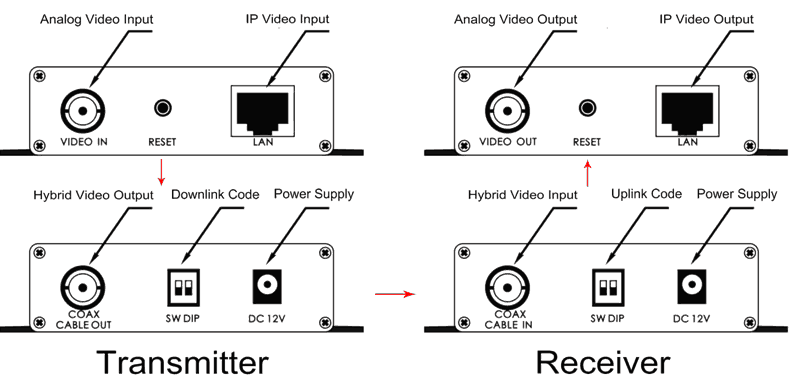

Installation Instructions and Steps:

1. Use a AN-CX-IP-A as the local receiver ( factory has set ): Connect a network cable with network switch (or computer, NVR); Connect “Video out” terminal to DVR or monitor; Connect “Coax Cable In” terminal to coaxial cable.
2. Use the other AN-CX-IP-A as a remote transmitter ( factory has set ): Connect “LAN” termianl to IP camera ( or other IP devices; such as: computers, etc. ); Connect “Video in” terminal to analog camera; Connect “Coax Cable Out” terminal to coaxial cable.
3. Supply power for the devices.
